SIMPLE COMFORT
/ / BUTTON

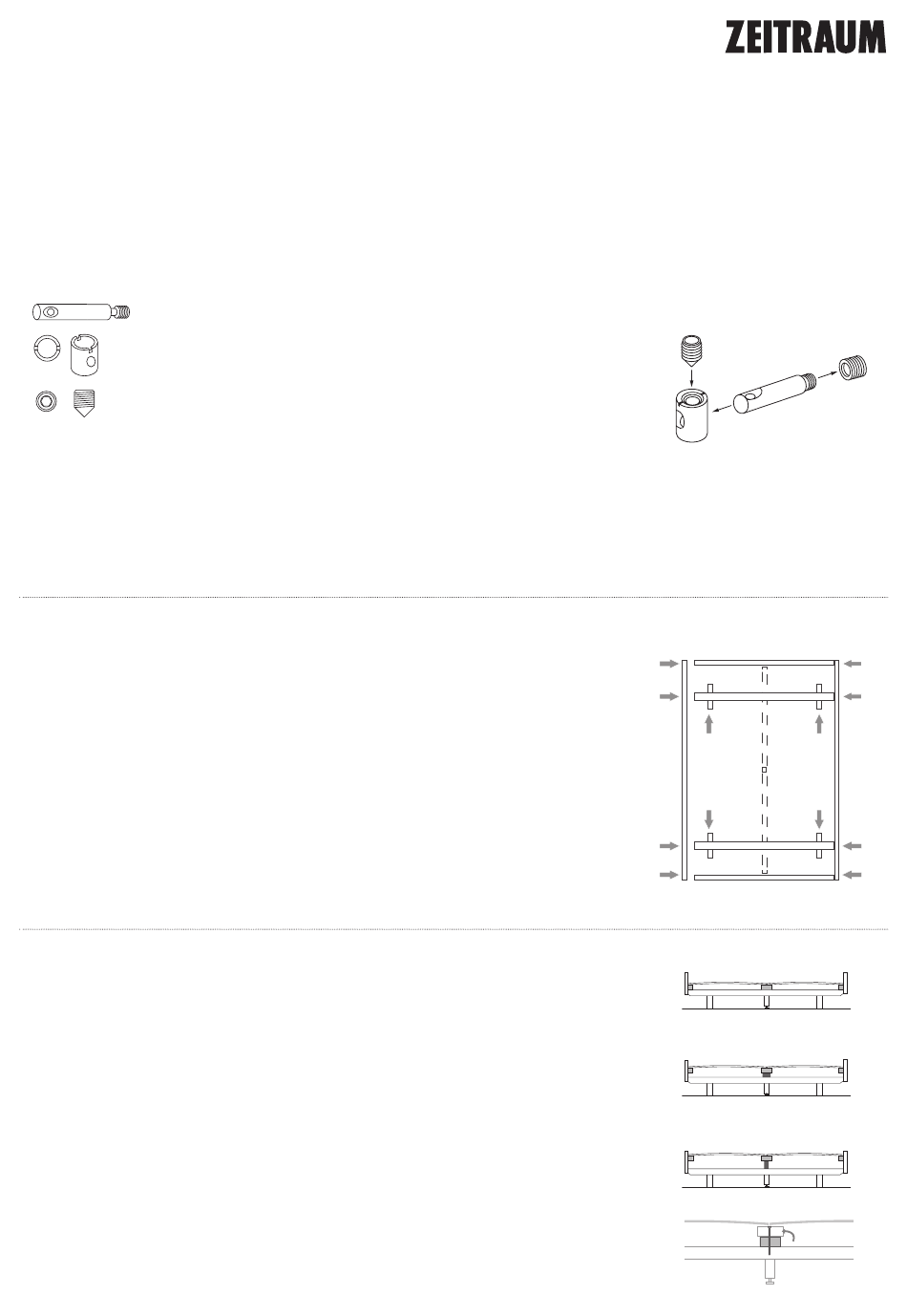

Assembly Instructions 05/ 2014
TooLS REQUIRED:
Allen screw SW 4/ 5 (enclosed)
Screwdriver size 2
Prior to assembly insert the boxes into headboard parts and foot-end, with longitudinal slot
in the direction of the XS bolts. Insert and turn bolts accordingly into sides,
align suitable. The XS bolt must not be tightened to the limit.
ASSEMBLY oF THE BEDFRAME
To fix the connectors please use the grub srews:
1. Connect and fix the headboard part onto the 1st side..
2. Mount the feet to the transverse supports.
3. Slot and fix crosspiece onto sidepiece.
4. Connect and fix foot-end onto side of bed.
5. Fit the second side to the head, foot and transverse pieces.
If you cannot screw in the grub screw flushly, loosen connection and unscrew the XS bolt
slightly. Then connect again.Fix right angles of completely assembled bed and make sure to
tighten all connections once more.
SUPPoRTS FoR SLATTED BASE
Please note that the supports can be fixed at three different heights. Use the confirmat
screws to fix the supports to the side elements. We recommend that the mattress stands
about 2 inches above the bed sides. With mattresses of more than 140cm in width the
middle support must be used. If necessary use the distance piece and the screws for the
right height. For Position 2 use the distance piece in flat direction, for Position 3 rotate the
distance piece upright. Afterwards fit the height-adjustable foot. Please set the hight of the
adjustable foot 1-2 cm lower than the other feet.
ZEITRAUM GmbH · Äußere Münchner Str.2 · D-82515 Wolfratshausen · Tel +49 (0)8171 - 418130 · Fax +49 (0)8171 - 418141 · info@zeitraum-moebel.de · www.zeitraum-moebel.de
8 XS bolts
8 x box
8 x grub screw
25 x Confirmat screws 5 x 70
2 x Screws (5 x 60)
2 x Screws (5 x 80)
Video:
http://www.scheulenburg-direkt.de/index.php?page=content&coID=11
5
5
2
2
5
5
Position 1: no distance piece
Position 2: flat
Position 3: upright
1
3
2
2
3
4
