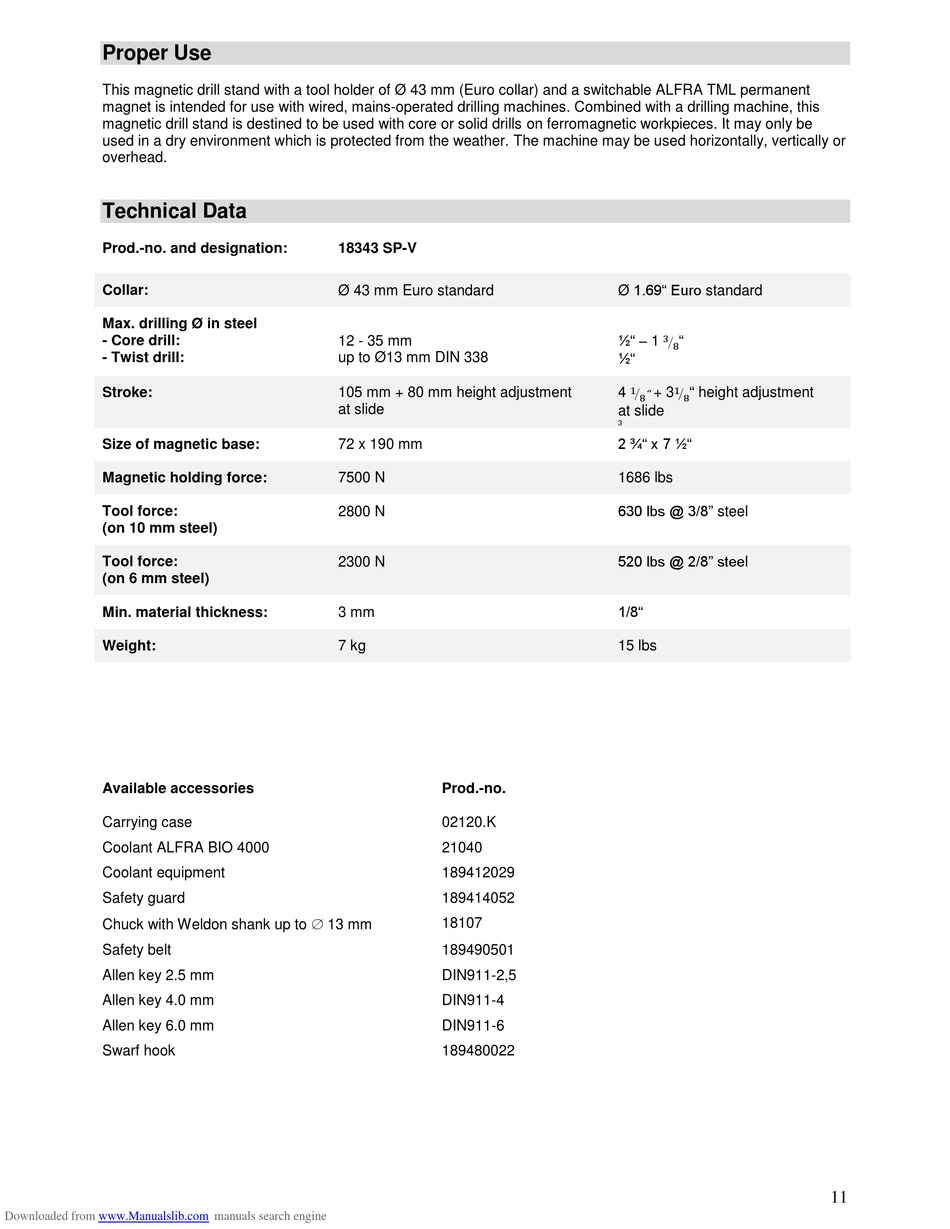

Technical Data, Available Accessories - ALFRA ROTABEST SP-V Bedienungsanleitung

Proper Use
This magnetic drill stand with a tool holder of Ø 43 mm (Euro collar) and a switchable ALFRA TML permanent
magnet is intended for use with wired, mains-operated drilling machines. Combined with a drilling machine, this
magnetic drill stand is destined to be used with core or solid drills on ferromagnetic workpieces. It may only be
used in a dry environment which is protected from the weather. The machine may be used horizontally, vertically or
overhead.
Technical Data
Prod.-no. and designation:
Collar:
Max. drilling Ø in steel
- Core drill:
- Twist drill:
Stroke:
Size of magnetic base:
Magnetic holding force:
Tool force:
(on 10 mm steel)
Tool force:
(on 6 mm steel)
Min. material thickness:
Weight:
Available accessories
Carrying case
Coolant ALFRA BIO 4000
Coolant equipment
Safety guard
Chuck with Weldon shank up to  13 mm
Safety belt
Allen key 2.5 mm
Allen key 4.0 mm
Allen key 6.0 mm
Swarf hook
Downloaded from www.Manualslib.com
18343 SP-V
Ø 43 mm Euro standard
12 - 35 mm
up to Ø13 mm DIN 338
105 mm + 80 mm height adjustment
at slide
72 x 190 mm
7500 N
2800 N
2300 N
3 mm
7 kg
manuals search engine
Ø 1.69" Euro standard
½" – 1
½"
4
at slide
3
2 ¾" x 7 ½"
1686 lbs
630 lbs @ 3/8" steel
520 lbs @ 2/8" steel
1/8"
15 lbs
Prod.-no.
02120.K
21040
189412029
189414052
18107
189490501
DIN911-2,5
DIN911-4
DIN911-6
189480022
3 "
8 ⁄
1 1 " height adjustment
8 ⁄ " + 3 8 ⁄
11
