6.1 Settings for SMART SX FLEXX remote control
The factory settings of the MULTIswitch FLEXX are
selected so that the three switching channels can be
operated using the SMART SX FLEXX transmitter.
Switching
channel
1
2
3
6.2 Assignment of free servo channels
If you are using a remote control with freely assignable
servo channels, you can control the MULTIswitch FLEXX
with the factory settings as follows:
Servo
channel
5
6
7
6.3 Settings using MULTIPLEX Launcher
You can customize MULTIswitch FLEXX according to
your requirements using the free MULTIPLEX Launcher
PC software.
The MULTIPLEX Launcher PC software is available at
http://www.multiplexrc.de.
You need the following accessories to connect to a PC:
• MULTIPLEX PC USB adapter #85149
You can specify the following settings for each switching
channel:
• Servo channel
• Switching threshold and direction
• Type of switching function
• Load control: Duration, blink mode, flash mode
MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • D-75015 Bretten (Gölshausen) • www.multiplex-rc.de
Downloaded from www.Manualslib.com
Operating Instructions
MULTIswitch FLEXX
Actuator in the Function
SMART SX FLEXX
transmitter
Left vertical rocker on / off
switch
Right vertical rocker on / off
switch
Left stick button Press button
to switch on /
off
MULTIswitch FLEXX switching
channel
1
2
3
manuals search engine

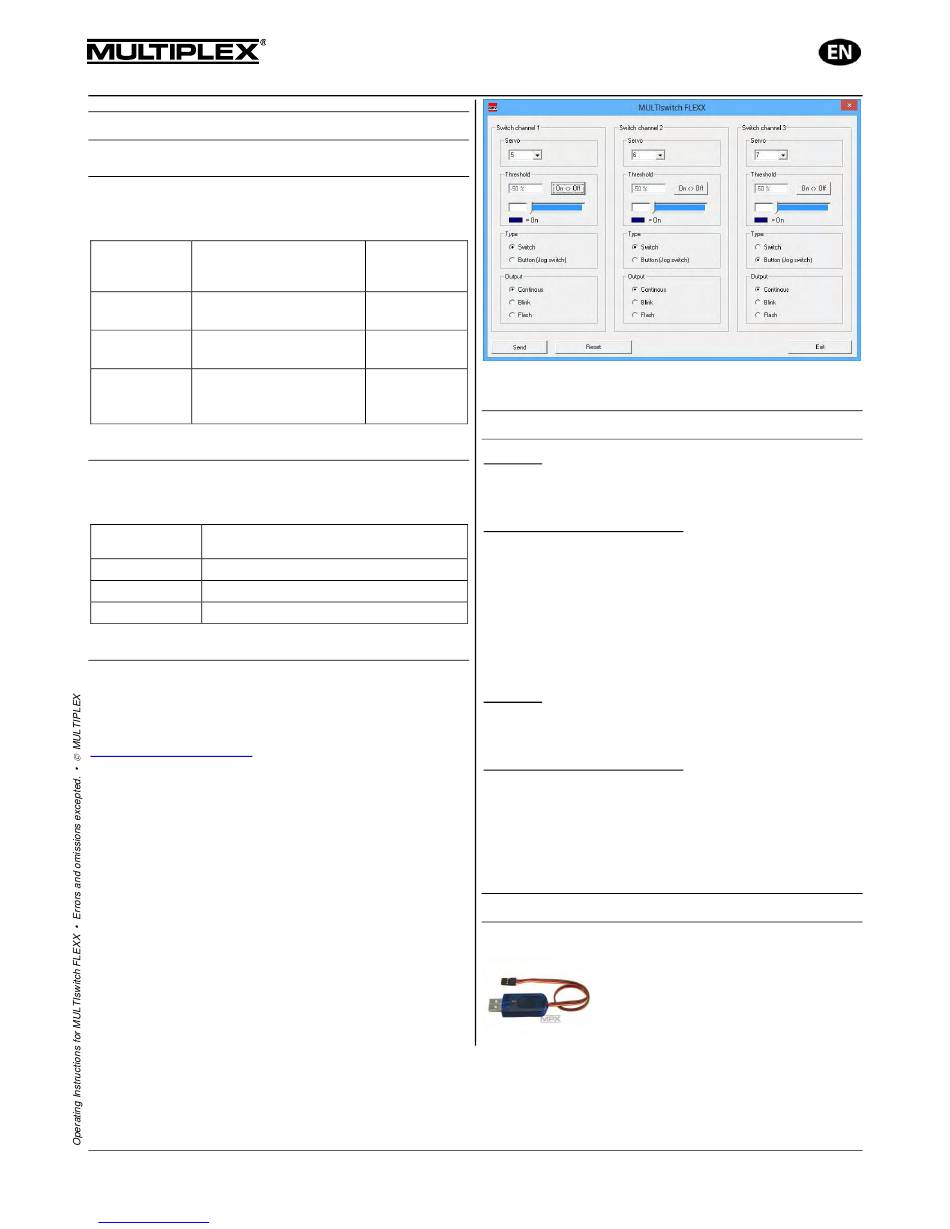

Figure 5 Windows software MULTIPLEX Launcher
7 E
RRORS AND SOLUTIONS
Problem:
MULTIswitch FLEXX is not receiving any data via the
SRXL cable (the LED remains off).
Possible causes and solutions:
• MULTIswitch FLEXX must be restarted (e.g. after
operation on the PC): Disconnect the supply voltage
and reconnect it.
• If you are using a MULTIPLEX telemetry receiver, the
SRXL output must be activated first on the receiver
(e.g. using the MULTIPLEX PC USB adapter #85149
and MULTIPLEX Launcher
MULTImate).
Problem:
The LED for receiving data lights up, but no power is
being supplied to the loads.
Possible causes and solutions:
• Jumper U(Bat) is disconnected.
• No voltage source is connected to the terminal U(Bat).
• The
servo assignment
transmitter does not match the settings in the
MULTIswitch FLEX.
8 A
CCESSORIES
MULTIPLEX
#85149
:
or using #82094
on the remote control
PC USB adapter
Page 3/4
