Integra ACT-RX1 Kurzanleitung Seite 2

GB 2 Channel receiver with self-learning,
it manages standard codes from 12 till 64 and rolling it manages standard codes from 12 till 64 and rolling HCS©
► RECEIVER CONNECTION
POWER SUPPLY (2 and 3). The receiver can be powered with 12 or
24 Vac/dc. If yu use direct current respect the polarity. (The positive
in the terminal no. 3).
ANTENNA (1 and 2). The antenna should be connected with posi-
tive side in the terminal no.1 and the negative in the terminal no. 2.
If you use only one cable (17 cm for freq. 433.92 Mhz - 8,5 cm for
freq. 868 Mhz), this has to be connected to the terminal no. 1.
EXIT. The exit of the relay's contact ( normally opened) is on the
terminal 4 and 5 .
Please don't connect the cable s to high tension and make sure
that the current is not more than 1 ampère
► USING OF THE RECEIVER
***IT IS NECESSARY TO EXECUTE THE MEMORY´S RESET***
ATTENTION!! this operation cancel all the codes in the memory.
It is necessary to cancel the memory before to learn the fi rst trans-
mitter, how to cancel:
1. Make sure that the exit has not been activated (the contact of
the relay is open).
2. Make sure that the receiver is not learning. The red led must
be switched off or it is fl ashing shortly
3. Keep the button till the red led is lighting.
4. Wait till the red led is switched off or it is fl ashing.
CODE MANAGING
This receiver can manage standard codes from 12 till 64 bit and roll-
ing codes HCS©. The fi rst learned transmitter establish the code's
type taht the receiver has to manage, it means that the transmitter
has to have the same code's type. Concerning the rolling codes it
is possible to activate or disactivate the key'scontrol and the rolling
counter. With this function you can choose the security level of the
receiver.

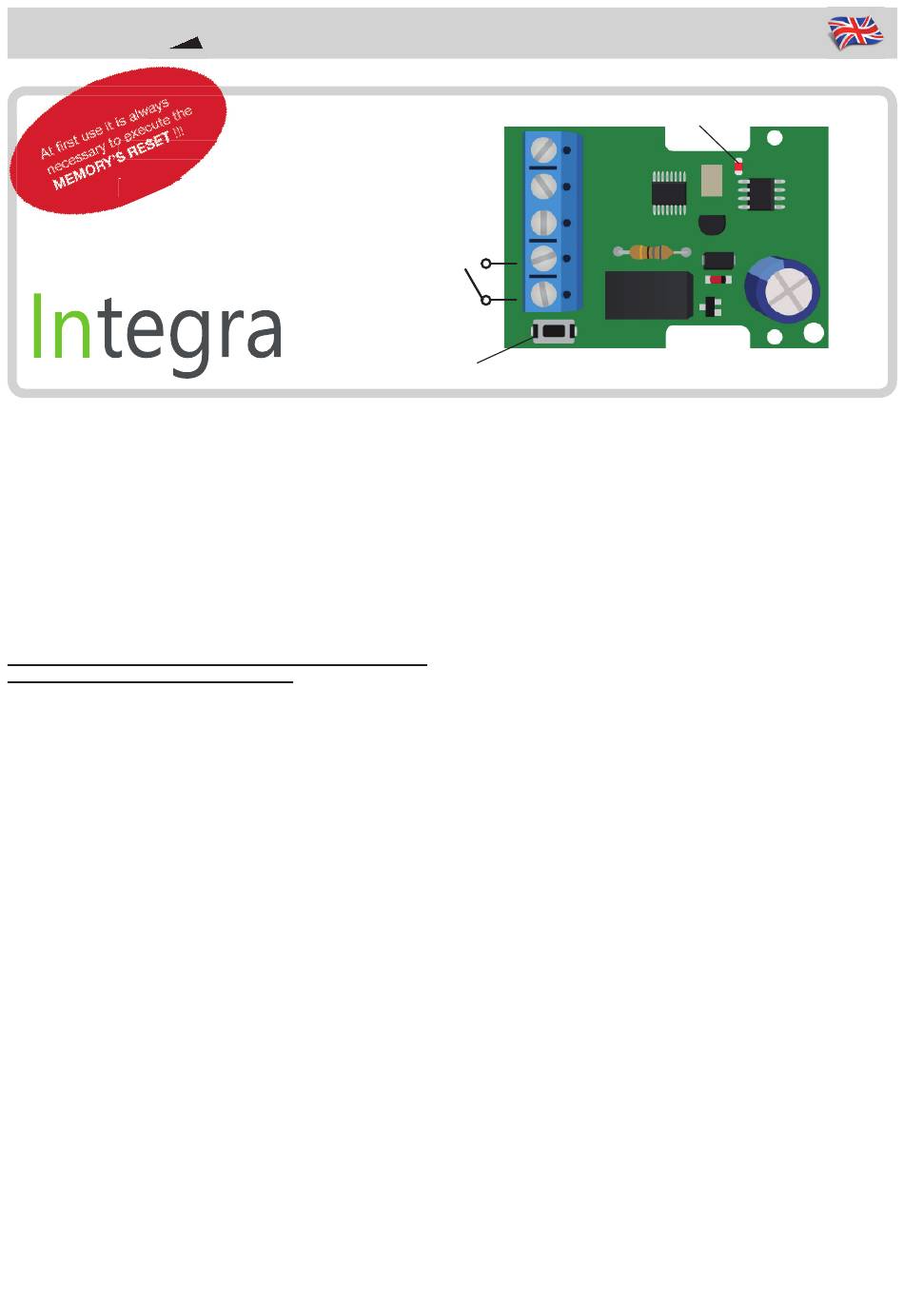

+ ANTENNA
- ANTENNA
+ POWER SUPPLY
RELAY EXIT
BUTTON
1
-
2
+
3
4
5
► ACTIVATION OR REMOVE
ROLLING CODE'S CONTROL
This operation is necessary to activate or remove the key's control
and the rolling code counter. If you active this control , the receiver
will accept ONLY the rolling code with owner key (producer key) and
will control the rolling counter, in a way that the tranmitter cannot
be copied.
The operation is as follow:
1. Make sure that the receiver 's exit are removed and are not
in self-learning
2. Press and eave the button.The red led is lighting.
3. Press and leave the button.The red led is fl ashing and light-
ing .
4. Press and leave the button. The red led is switched off and
remains switched off if you need the fuction is removed and
light shortly if the funciton is activated.
TRANSMITTER'S LEARNING
To learn a code make as follow:
1. Make sure that the receiver 's exit is not active.
2. Push and leave the button The red led is lighting
3. Push the transmtter's button within 5 sec.If the code has been
learnt the red led is fl ashing shortly. If the red led is fl ashing
slowly it means that the memory is full. If the red led is not
fl ashing it means that the transmitter is not compatible
STEP-BY-STEP FUNCTION
The receiver 's exit can be set up for step-by-steep function (to be
active or to be removed). If you want to active or remove this func-
tion you have to press the button when the exit is active If the exit
are in the NORMAL FUNCTION, it will be operating the function
step-by-step, but if it was already active, the exit will working with
a normal process.
TRANSMITTER'S CANCELLATION
This operation can cancel one single transmitter.
1. Press and leave the button. The red led is lighting .
2. Press the transmitter's button. If it is already on the memory,
the red led is fl ashing for 3 sec. and then return to the normal
status. During this time press the button again.
LED
