Inhaltszusammenfassung für Reflexion TL-80

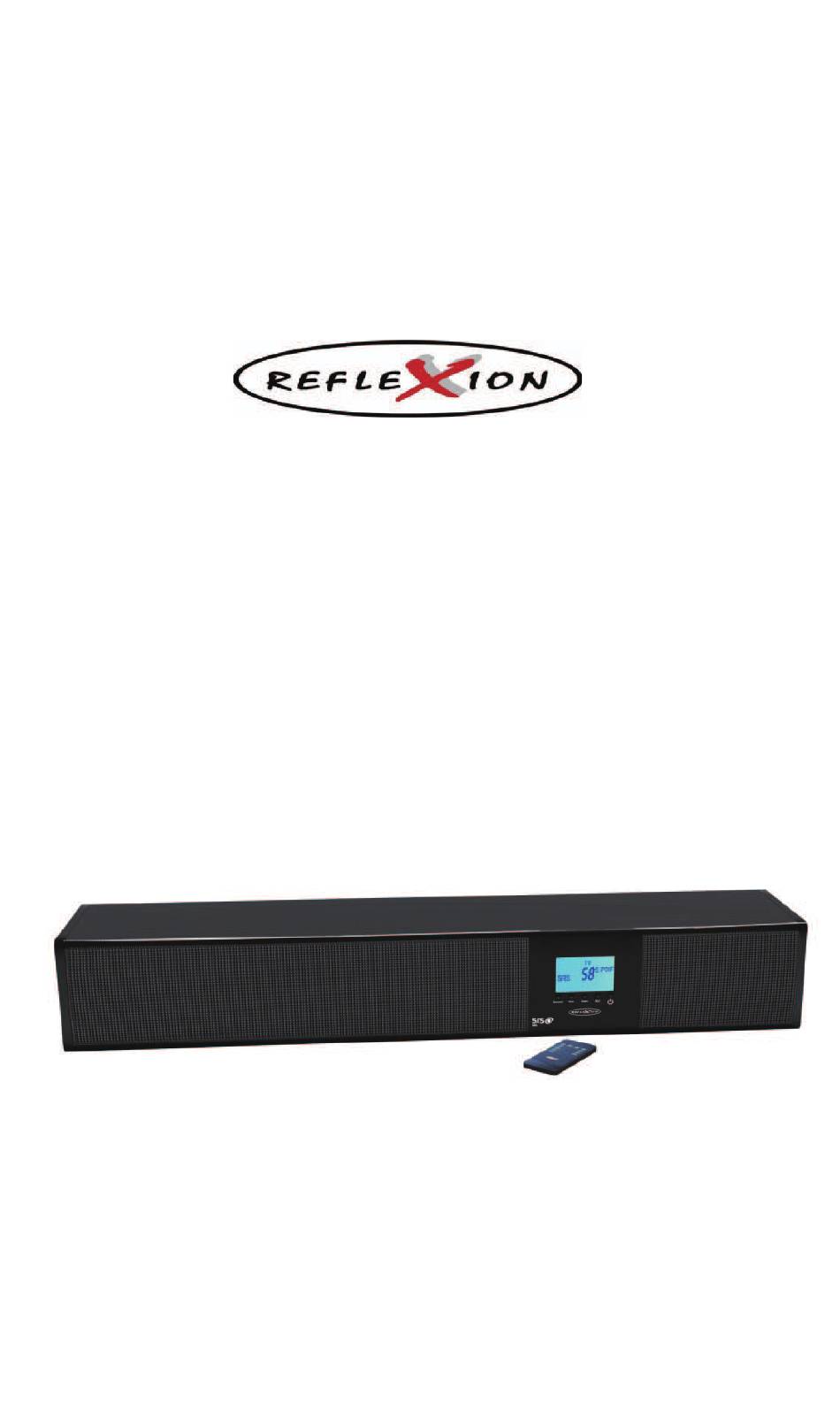

- Seite 1 User Manual Soundbar TL-80...
-
Seite 2: Safty Information
8. Please do not block the cooling vents to avoid overheating. Thank you for choosing Reflexion Soundbar TL-80 All-in-One System. The model and serial number are located on the rear panel of the unit. Please record these numbers as well as purchase date in the space provided and retain this manual as a permanent record of your purchase. -
Seite 3: Packaging Contents
Placing on a table Locate a table or any flat surface of 82 cm wide by 16 cm deep minimum space Leave the Reflexion Soundbar TL-80 unit on the table or on any flat surface and proceed to wire connections. -
Seite 4: Connect Power Supply
For connecting to an S/PDIF digital device, use either an optical cable to patch between the source and Reflexion unit’s S/PDIF “optical” connector on the rear panel, or a good quality RCA cable to connect between the source and Reflexion unit’s S/PDIF “coaxial” connector on the rear panel. -
Seite 5: Front Panel Control
Remote Control and Functions 1. Power ON / Standby Button 2. Select INPUT source 3. SRS down 4. Volume down 5. Reset the equalizer 6. Turn on/off back light of display 7. optical or coaxial RCA connection 8. SRS up 9. -
Seite 6: Troubleshooting
Troubleshooting If you experience any of the following difficulties while using the system, use this troubleshooting guide to help you remedy the problem. Should any problem persist consult an authorized service center. No power Check to make sure the power cord is firmly plugged into the power outlet. One of the safety mechanisms may be operating. - Seite 7 Specification for Reflexion Soundbar TL-80 Total Output Power: 240 watts max. / 90 watts sinus Frequency responds: 60~20K Hz Impedance: 4 ohm Measurements: 870 (L) mm x 250 (W) mm x 180 (D) mm Net weight / Gross weight: 6 Kg/ 7 Kg...
