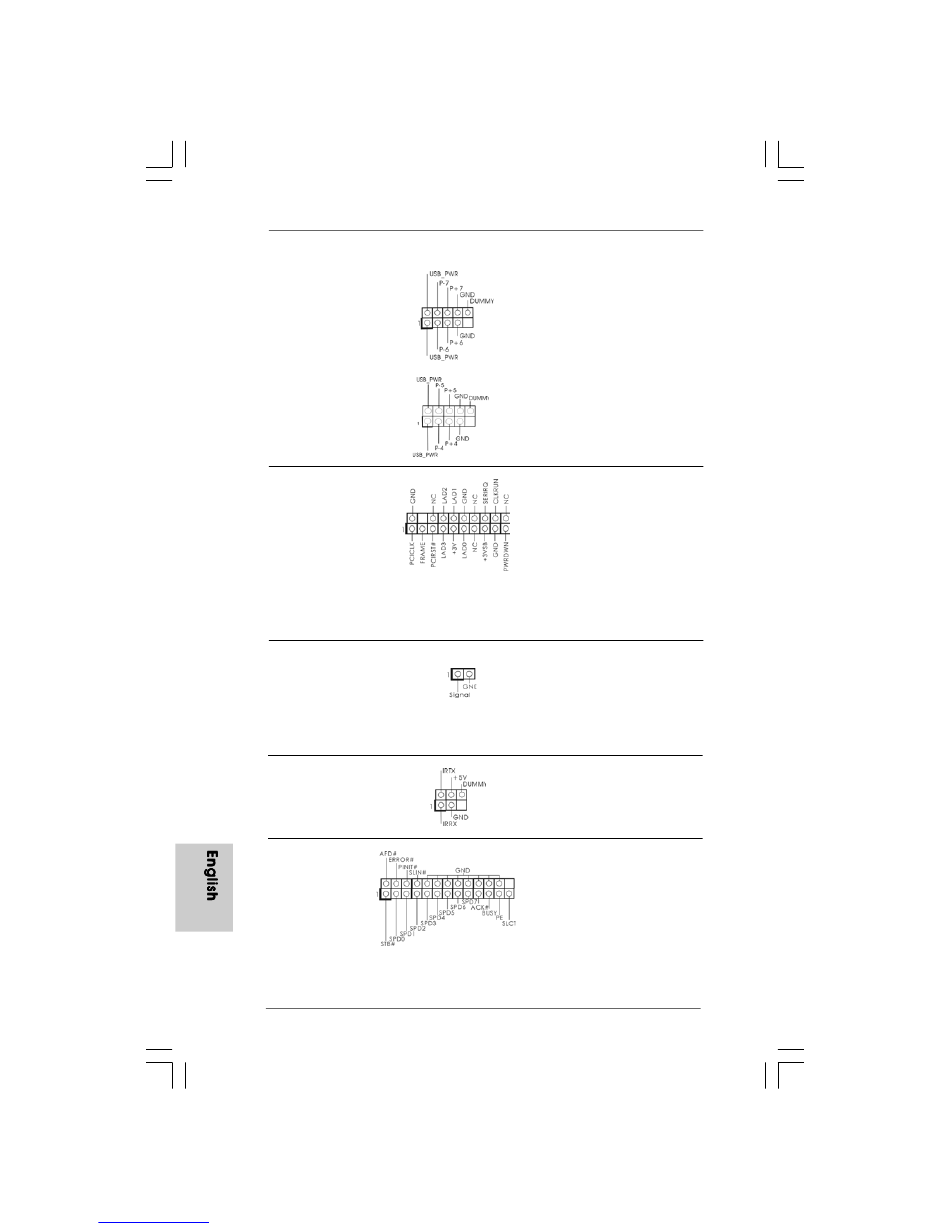

USB 2.0 Headers
(9-pin USB6_7)
(see p.2 No. 22)
(9-pin USB4_5)
(see p.2 No. 21)
TPM Header
(19-pin TPM1)
(see p.2 No. 8)
Chassis Intrusion Header
(2-pin CI1)
(see p.2 No. 19)
Infrared Module Header
(5-pin IR1)
(see p.2 No. 27)
Print Port Header
(25-pin LPT1)
(see p.2 No. 26)
1 8
1 8
1 8
1 8
1 8
ASRock G41M-GE3 Motherboard
manuals search engine
Besides four default USB 2.0
ports on the I/O panel, there are
two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
This connector supports a
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certificates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
This motherboard supports
CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
This header supports an
optional wireless transmitting
and receiving infrared module.
This is an interface for print
port cable that allows
convenient connection of printer
devices.
