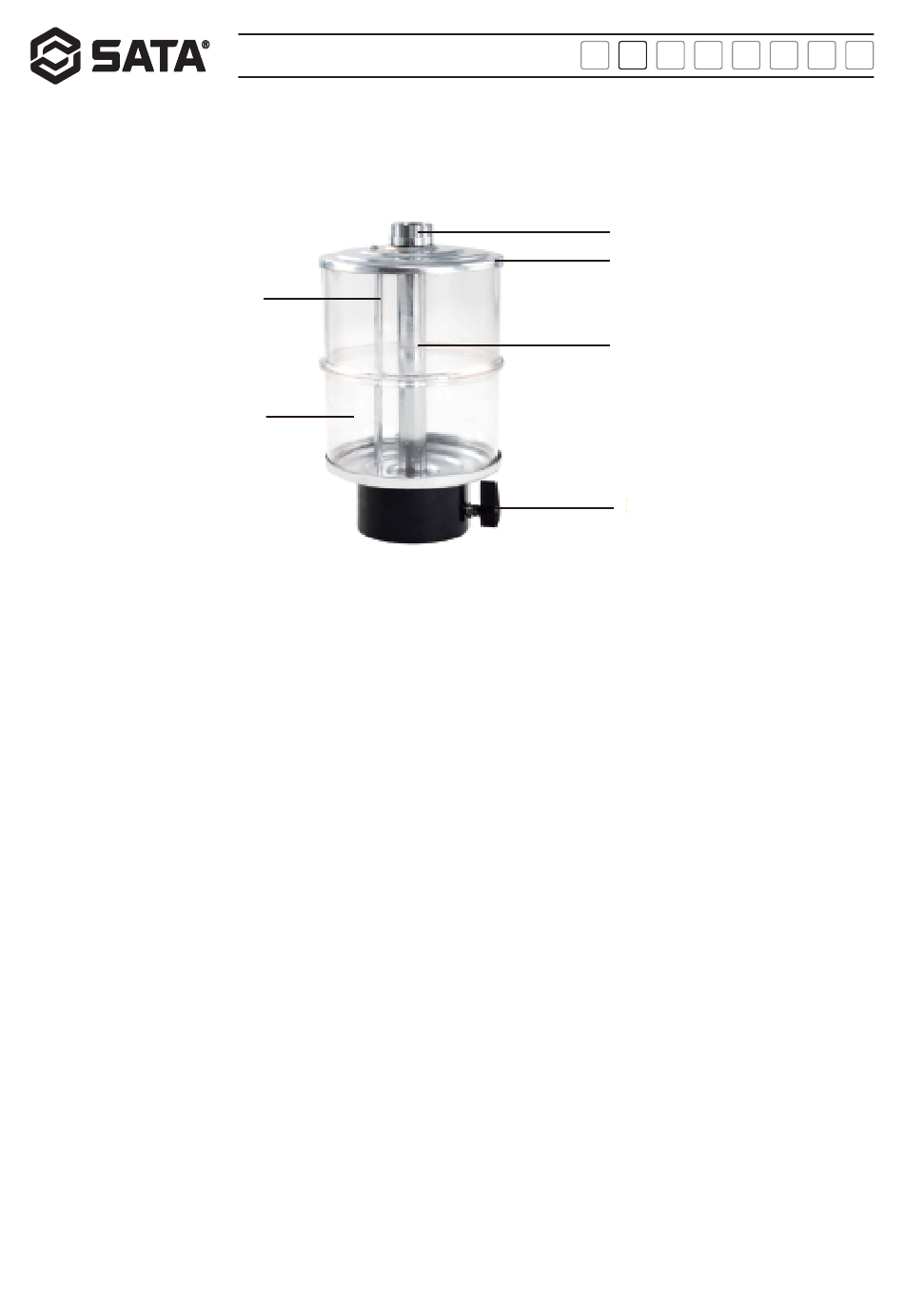

Pneumatic balancing measuring glass assembly in 3893 structure:
Air pipe
Measuring glass body
Chapter III Intended Use
The product is designed to extract and collect the waste oil from vehicle oil tank. It stops when the waste oil reaches the specified level,
and then the waste oil will be discharged through the drain pipe below the tank. The product can be moved to the specified location in a
convenient and fast way.
Chapter IV Dangers and Warnings
1) Location and information of warning labels
Please operate the equipment in strict accordance with the safety considerations in the Operation Instruction. If the Operation Instruction
is missing or the warning labels peel off or are stained, please contact the distributor. Please check whether each machine is attached
with the warning labels shown on the left.
2) Dangers and warnings
2.1 Do not disassemble the product
All parts are tightly sealed as the product works under vacuum pressure. The disassembly without approval will result in failure or
accidents.
2.2 Please read the Operation Instruction carefully prior to use
Any improper operation may cause casualties.
Warning label on oil valve switch: Please close the measuring glass ball valve during air charging and oil drainage or when there is air
pressure in the tank.
Warning label on measuring glass: Never use it for extraction of corrosive liquids (e.g. brake fluid) are.
Chapter V Oil Extracting and Draining Methods
Working principle: Based on the air compression principle, a specially designed vacuum generator is used to vacuum both the transparent
measuring glass and the oil tank such that a certain degree of vacuum pressure difference is generated and the oil will be sucked into the
measuring glass or oil tank through the extracting tube. Then, the waste oil in the tank will discharged into the collection container
AE701/AE5702/AE5703
中文
EN DE RU KO
Upper cover screw
Gland
Oil valve
Ball
