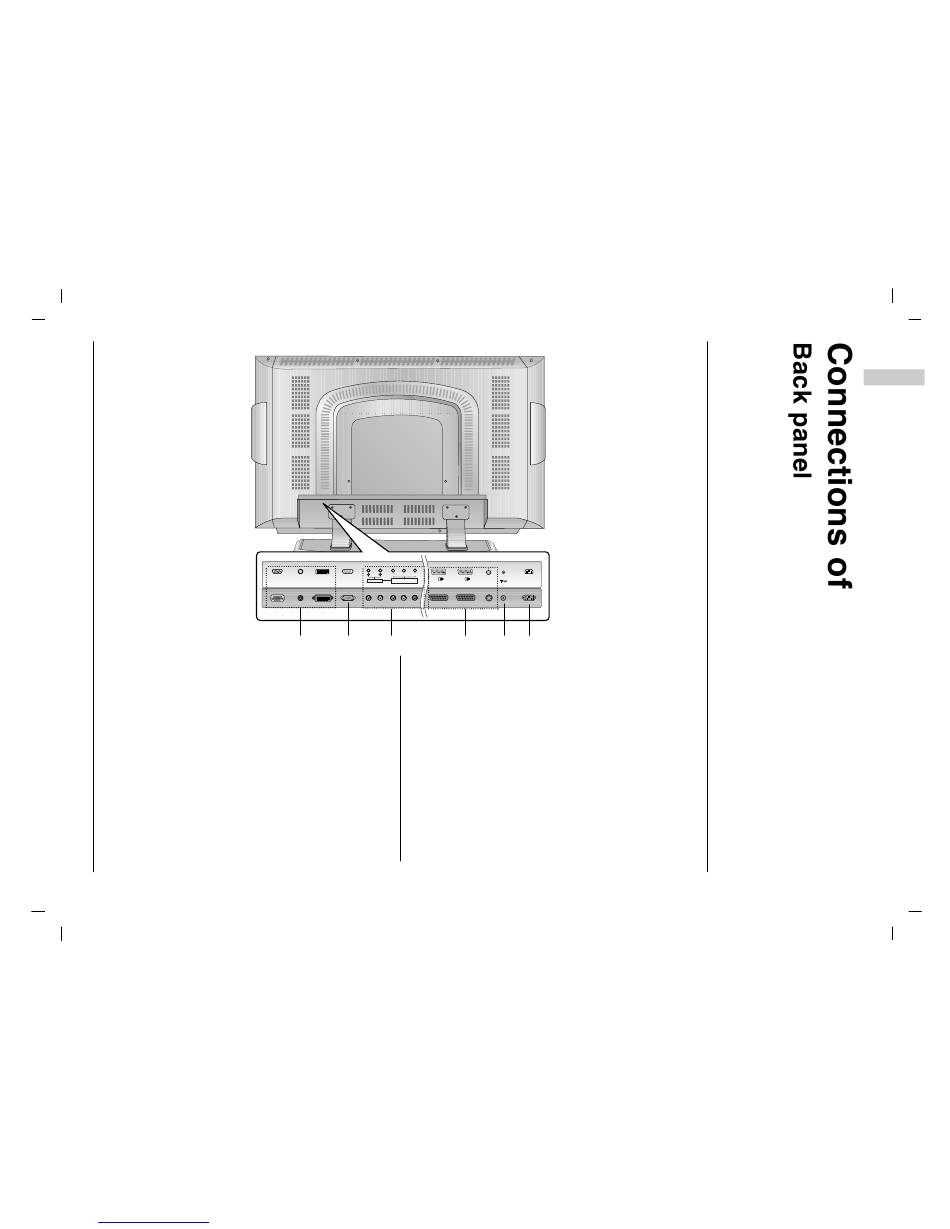

1. RGB INPUT / AUDIO INPUT / DVI INPUT SOCKETS
Connect the set output socket of the PERSONAL COM-
PUTER to this socket.
2. RS-232C INPUT(CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
3. AUDIO INPUT / COMPONENT INPUT (480i/480p/720p/
1080i) SOCKETS
4. S-VIDEO INPUT
connect video out from an S-VIDEO VCR to the S-
VIDEO input.
Downloaded from www.Manualslib.com
R R AUDIO AUDIO T T Y Y
RS-232C INPUT RS-232C INPUT
RGB INPUT RGB INPUT AUDIO INPUT AUDIO INPUT DVI INPUT DVI INPUT
COMPONENT COMPONENT INPUT
(CONTROL/SER (CONTROL/SERVICE) VICE) AUDIO INPUT AUDIO INPUT
(480i/480p/720p/1080i) (480i/480p/720p/1080i)
1 2 3
manuals search engine
P P P P
b b r r
S-VIDEO S-VIDEO AC INPUT AC INPUT
INPUT A A V1 V1 A A V2 V2 ANT ANT. IN . IN
4 5 6
EURO SCART SOCKET
connect the euro scart socket of the VCR to these sock-
ets.
5. AERIAL SOCKET
6. POWER CORD SOCKET
This set operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to oper-
ate the set on DC power.
