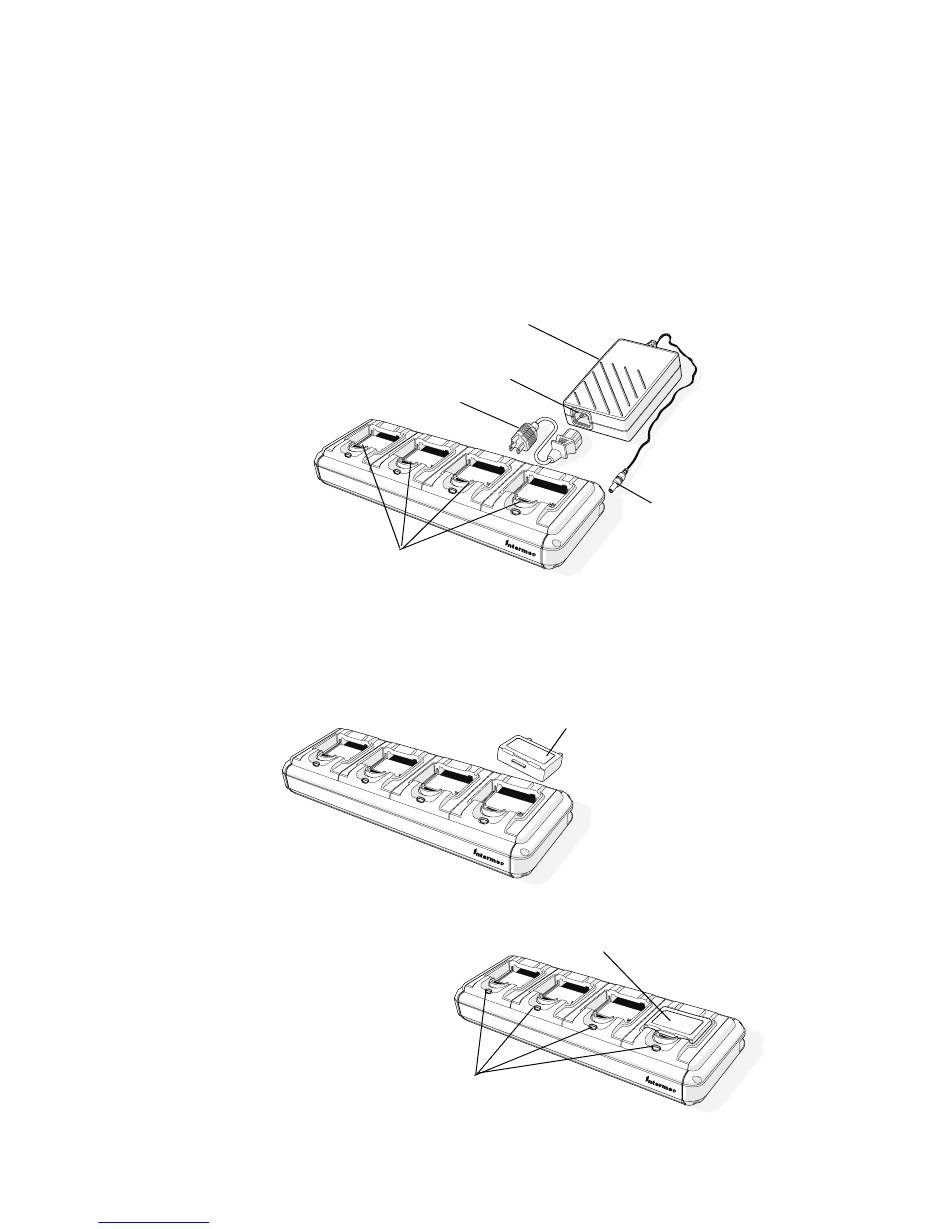

Installing and Using the Quad Charger
1 Locate the charger in a well ventilated area and close to an AC
power outlet.
2 Connect the DC power supply to your charger.
3 Connect the AC power cord to the DC power supply.
AC power cord
Battery charging compartments (four)
4 Insert the battery pack into the charging compartment. The
battery pack reaches a full charge in approximately four hours.
Charging status LED (four)
2
manuals search engine
DC power supply
AC power connector
Battery pack tilted to insert
and "click" into place
Fully seated battery pack
DC barrel connector
