1. PREPARATION

1. Press and hold the printer FEED key and turn on to print the printer configuration.
If it is necessary to modify the parameters:
2. Connect the RS-232 to Mini USB cable supplied to a free port in the PC.

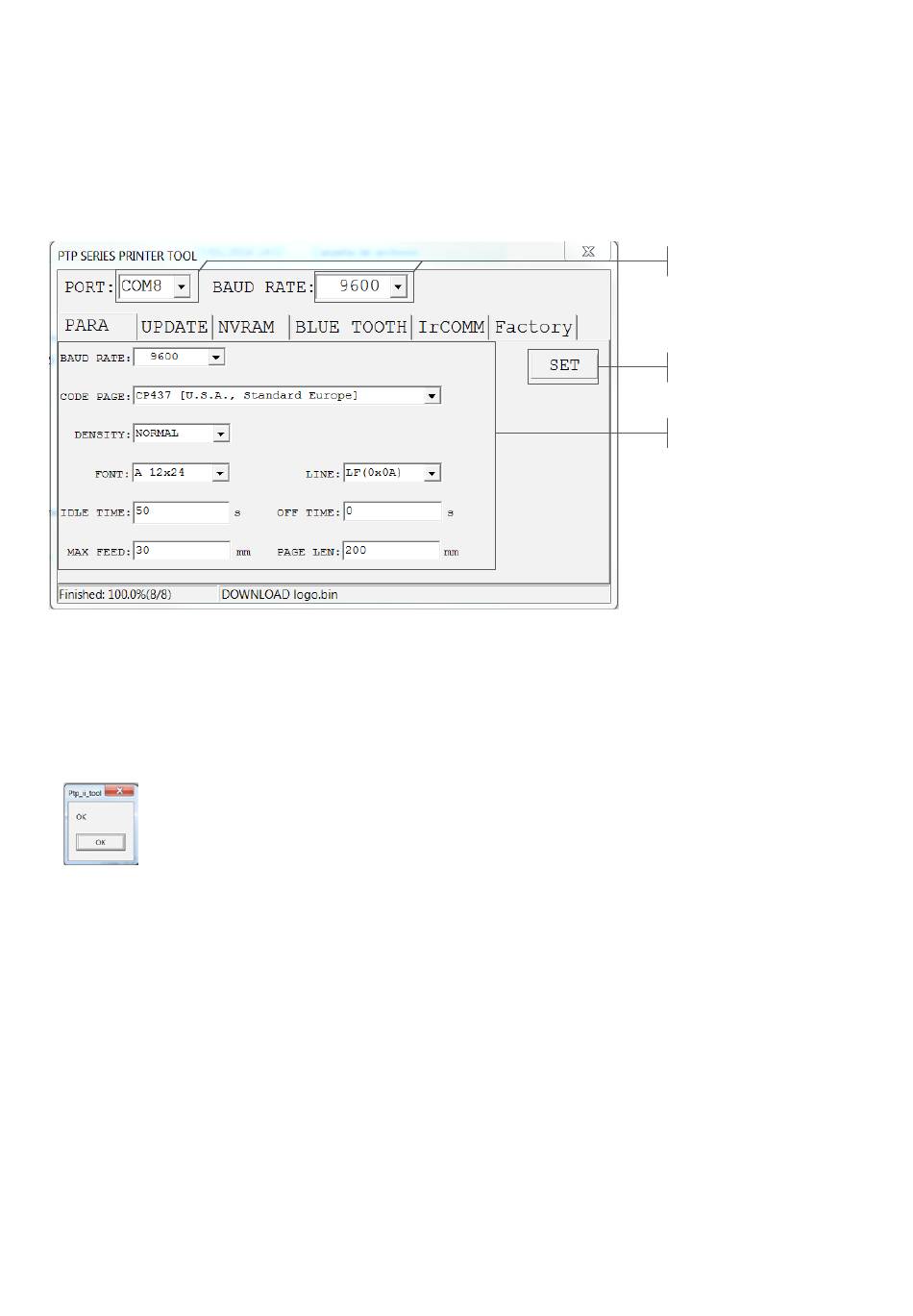

3. Run the PTP_II_Tool program from the equipment software folder
4. Select the COM port where the equipment is connected and the speed printed in the printer configuration at the top.
5. Now modify the required parameter.
6. Click SET to send them to the printer.
7. If everything is successful, a buzzer will sound and the dialogue box will appear.
8. Click OK and everything is ready to connect the equipment to the required indicator

2. CONNECTION TO PC

The connection is via direct cable.
8
USER'S MANUAL IMP05
4
6
5
EN
