PowerFlex
4-Class Remote Small HIM
Kleine PowerFlex
Petite HIM PowerFlex
Modulo interfaccia operatore PowerFlex
Módulo Remoto PowerFlex
Kleine PowerFlex
Pequena HIM remota PowerFlex
IP66 (NEMA Type 4X/12)
Indoor / Innenraum / Usage Intérieur / Interno / Interior / Indoor / Interno
Important:
Adhesive coated gasket designed for one time installation.
Wichtig:
Dichtung ist nur für den einmaligen Einbau anwendbar.
Important : Joint adhésif à usage unique.
Importante: Guarnizione adesiva valida per una sola installazione. Smontando e
rimontando la stessa non sara' piu' garantita la protezione IP66.
ATENCIÓN: Junta con capa adhesiva diseñada para solo una fijación–
no reutilizable.
Belangrijk:
De zelfklevende dichtingsring is voor éénmalig gebruik.
Importante: Vedação adesiva foi projetada para ser instalada uma vez.
®
HIM
®
décentralisée
®
Compacto de Interface de Operador
®

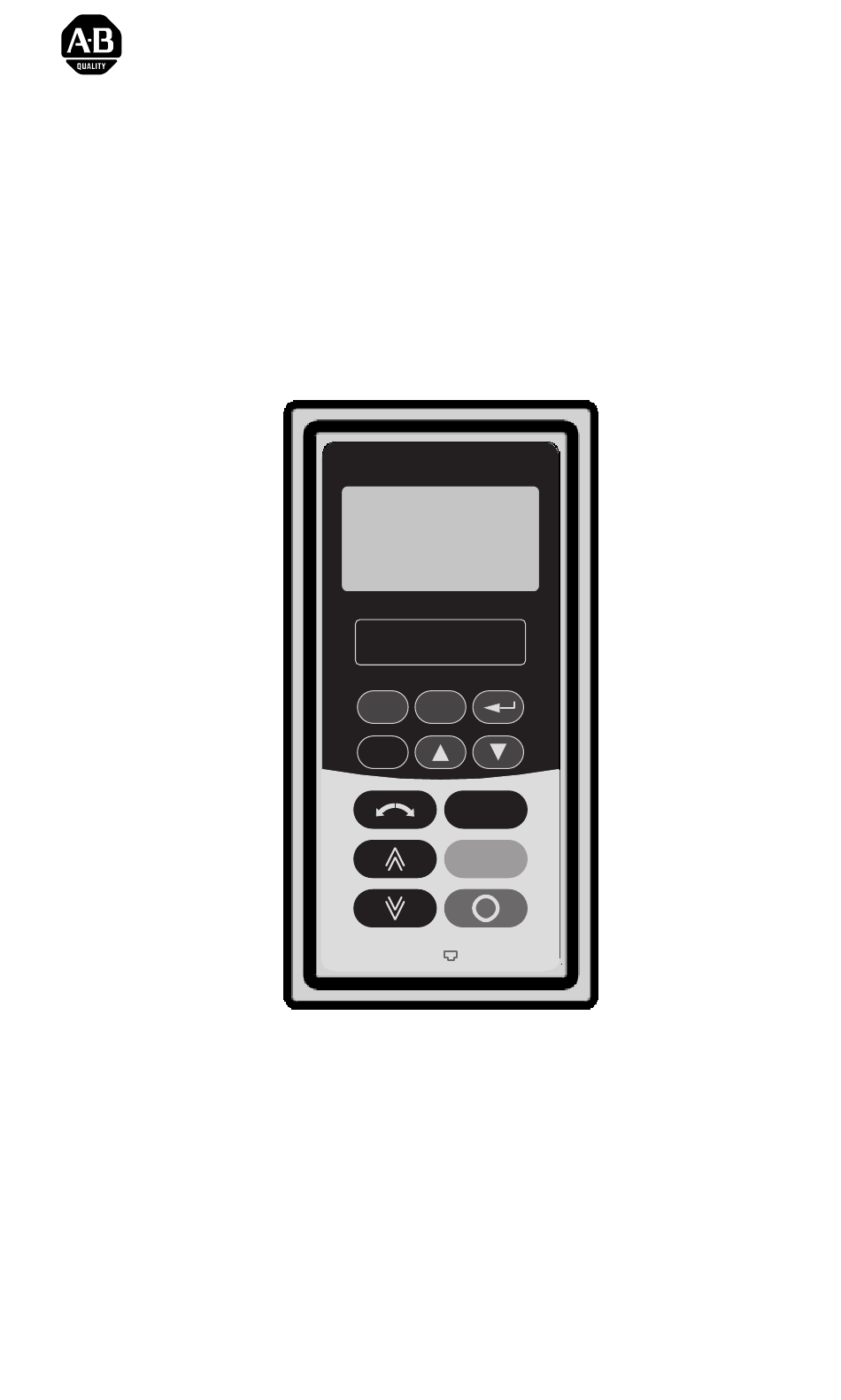

Remote HIM
®
22-HIM-C2S
Esc
ALT
Installation Instructions
®
remoto di piccole dimensioni
DISP
REMOVE
Sel
LANG
Jog
|
DSI
Installationsanleitung
Notice d'installation
Installazione
Instalación
Instructies
Instalação
