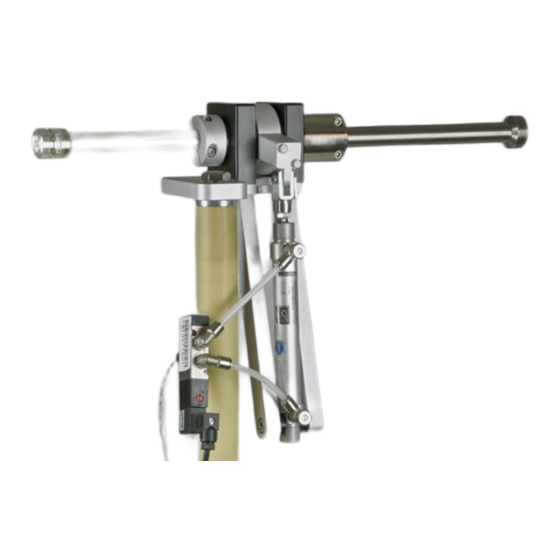

PPS 9208 Pneumatischer Polarisationssteller Pneumatic polarisation swivel adapter Technische Daten: Specifications: Aufnahme Antennenrohr 22 mm Antenna Tube Fixture: Maximales Antennengewicht: 15 kg Maximum Antenna Weight: Mastmontage: 3/8" female Mast Mount: Empfohlener Druck: 5-6 bar Recommended Pressure: Durchmesser Pressluftschlauch 6 mm/4 mm Pipe Diameter (outer/inner): außen/innen:...
Seite 2
(Werkseinstellung). tion “0” (=factory setting) Nun kann die Antenne mit dem 22 mm Rohr in Now the antenna may be placed with its 22 Rohraufnahme Polarisationsstellers mm tube into the fixture of the PPS 9208. geschoben werden. Datasheet Rev. C...
Seite 3
Vor dem ferngesteuerten Polarisationswechsel If both conditions are fulfilled, the fixture of muss in jedem Fall sichergestellt werden, dass PPS 9208 can be tightened with appropriate sich keine Personen bzw. Gegenstände im torque. Please note: prior to remote control Schwenkbereich der Antenne befinden. Um eine operation the operator must take care that gleichmäßige Drehbewegung zu erreichen, sollte...
Seite 4
PPS 9208 Change of Settings: Änderung der Einstellungen: Ab Werk sind alle Einstellungen When delivered all settings are bereits vorgenommen. Sie können made for standard operation. jedoch dem individuellen Bedarf They can be adjusted if neces- angepasst werden. sary. Drosselventile: Flow control valves: Die Drosselventile müssen direkt am...
Seite 5
Schraube löst den Hub in die and out will release the cylinder entgegengesetzte Richtung aus. to move in the opposite direc- tion. SCHWARZBECK MESS – ELEKTRONIK OHG An der Klinge 29 69250 Schönau, Germany Phone: +49 6228 1001 Fax.: +49 6228 1003 E-Mail: office@schwarzbeck.de...
