CHARACTERISTICS
Front Grille
The speakers's components in the buffle are protected by 1.5mm metal steel grille
covered by foam on backside.
Cooling
The amplifier is cooled by means of the aluminium panel placed on the back of the
speaker.
The thermal protection is ensured by an internal circuit which controls the temperature of
the amplifier and protects this against any risk of overheating thus limiting the general
volume ( temperature >80°C).
If the temperature reaches the maximum operating temperature (>80°C), the audio signal
is set to the "MUTE" position and it will be indicated by the switching on of the yellow
"MUTE" LED.
The requiriered volume and all functions will be restored automatically when the normal
operating temperatures are reached.
Protection
When the yellow "MUTE" LED turns on, it means that a malfunction has been detected on
the speaker, thus setting this to the mute position.
Perform the checks listed below:
- Check if the speaker is properly connected to the power supply.
- Make sure that the power supply is of correct voltage.
- Check that the amplifier is not overheated.
- Disconnect the speaker from the mains power supply, wait for a few minutes and
connect it again.
If after these tests the yellow "MUTE" LED is still on, please contact an authorised service
centre.
CONNECTIONS (Only for FLEXSYS F212)
Connecting to the mains supply
Each active speaker features its own power cable. Connection is done by a Neutrik
POWER CON® (blue) model which permits easy and fast connection to the speaker as
well as being an excellent locking system.
The same connector serves as a switch to turn ON and OFF the active loudspeaker by
turning the connector to the left (OFF) or right (ON).
The active speaker must be connected to a power supply able to deliver the maximum
required power.
Main power supply linking
On the rear of the speaker, a Neutrik POWER CON® connector (grey) offers linking the
mains power supply.
This socket links the power supply to another speaker, thereby reducing the direct
connections to the mains. Maximum amplifier input power is shown on the amplifier
panel.
The maximum number of speakers connected together varies of max input power and
of the maximum allowed current of the first power socket.
21
FLEXSYS F8 - F10 - F12 - F15 - F212 - F315 FLEXSYS F8 - F10 - F12 - F15 - F212 - F315
ROTATING HORN (Except FLEXSYS F315)
Loudspeaker allows to maintain the same coverage angle by featuring a rotating horn.
The speakers are always supplied by the manufacturer with the horn positioned horizontal
by default at 90° for Flexsys F8, F10, F12 and F15 and 60° by default for F212.
Only Flexsys F212 can be used placing more speakers side by side (cluster), in this case is
necessary rotate the horn.
If you wish to change the coverage angle (Fig. 5):
- unscrew the fixing screws of the grille
- remove the front protective grille by slightly pressing on one side and taking the grille
off the recessed slots
- unscrew the fixing screws of the horn
- rotate the horn in the desired position (the horn should never be removed from the
driver!)
- tighten the fixing screws of the horn
- put the grille back in the recessed slots and tighten the screws of the grille.
LOUDSPEAKER INSTALLATION
WARNING
Make sure that the loudspeaker is securely installed in a stable position to avoid any
injuries or damages to persons or property.
For safety reasons do not place one loudspeaker on top of another without proper fastening
systems. Before hanging the loudspeaker check all the components for damages,
deformations, missing or damaged parts that may compromise safety during installation.
If you use the loudspeakers outdoors avoid places that are exposed to bad weather.
The loudspeaker has the following mounting options:
- bookshelf (Fig. 1)
- floor (monitor) (Fig.2)
- on speaker stands (Fig.3)
- suspended with support rails or brackets supplied by the manufacturer (Fig.4)

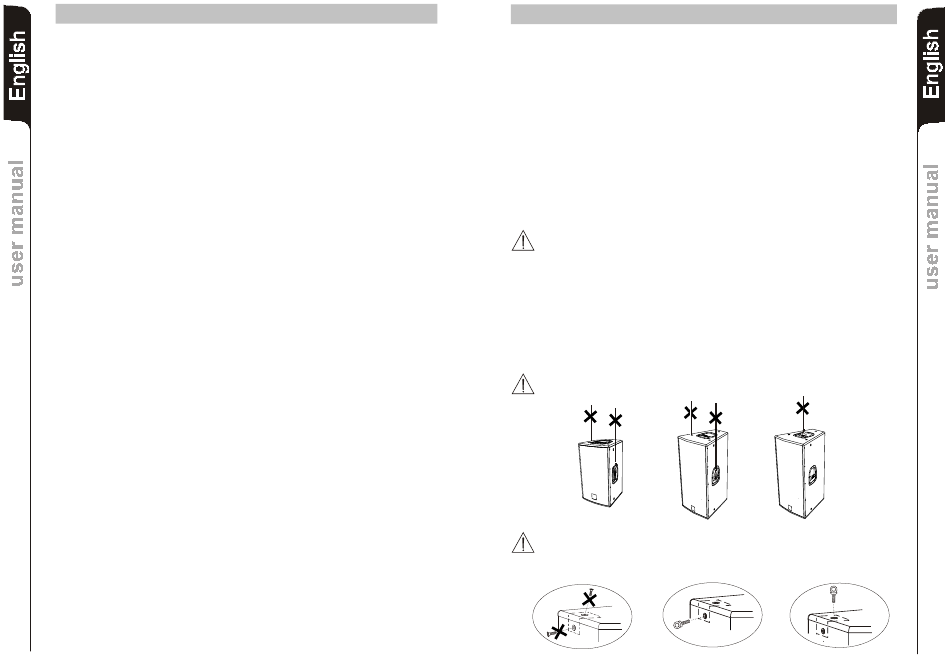

WARNING
Never use the handles to hang the speaker!
WARNING
To hang the loudspeaker use only one eyebolt for each hanging point
The hanging points are of M8 threads for Flexsys F8,F10 and M10 threads for
Flexsys F12, F15, F212 and F315.
Do not unscrew both bolts recessed in the housing!
WRONG! EXACT!
EXACT!
