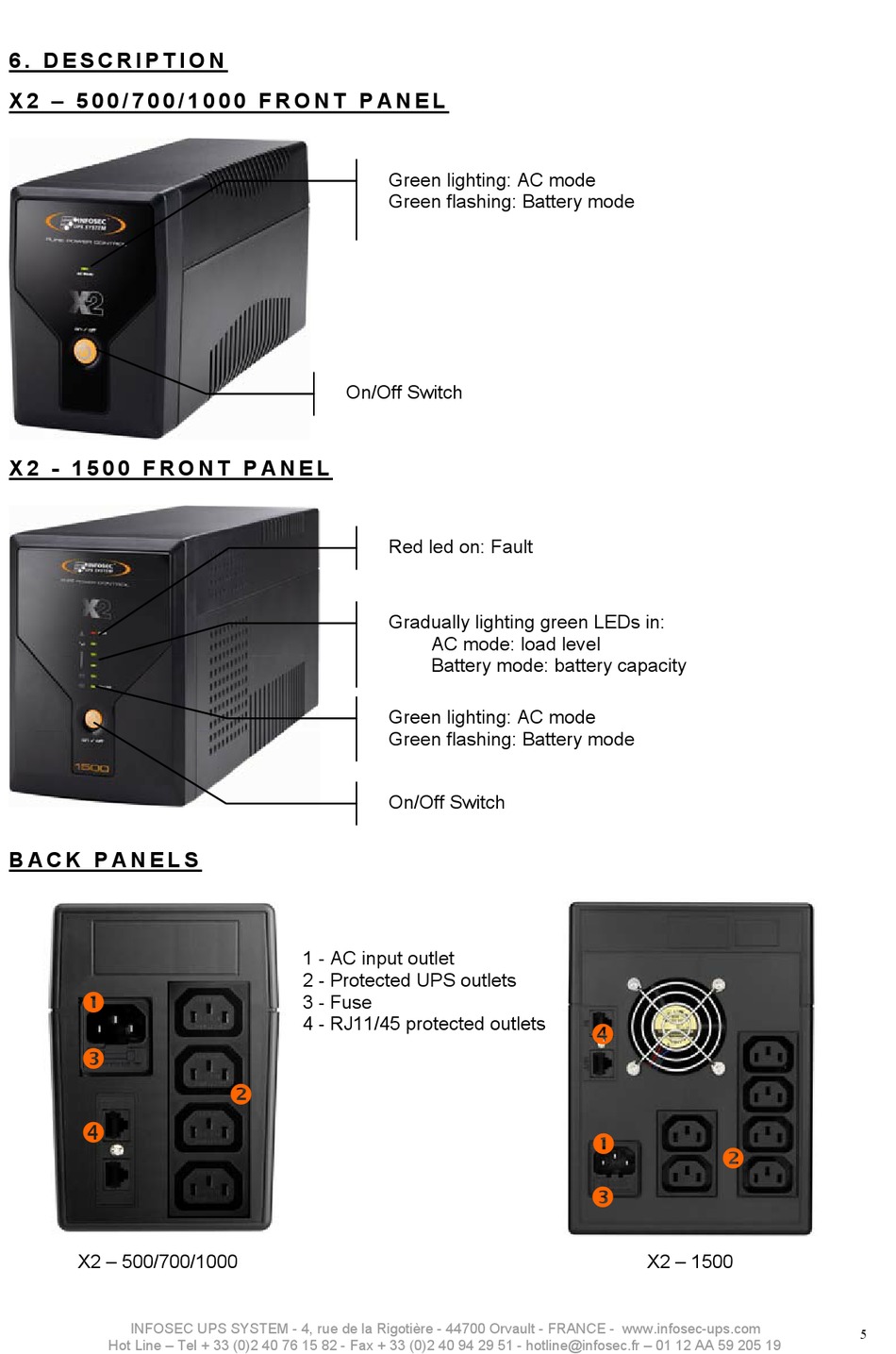

6 . D E S C R I P T I O N
X 2 – 5 0 0 / 7 0 0 / 1 0 0 0 F R O N T P A N E L
X 2 - 1 5 0 0 F R O N T P A N E L
B A C K P A N E L S



X2 – 500/700/1000
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 01 12 AA 59 205 19
Green lighting: AC mode
Green flashing: Battery mode
On/Off Switch
Red led on: Fault
Gradually lighting green LEDs in:
Green lighting: AC mode
Green flashing: Battery mode
On/Off Switch
1 - AC input outlet
2 - Protected UPS outlets
3 - Fuse
4 - RJ11/45 protected outlets

AC mode: load level
Battery mode: battery capacity




X2 – 1500
