Lenovo ThinkPad X1 Carbon Einrichtungsanleitung

Setup Guide
Brief user notices

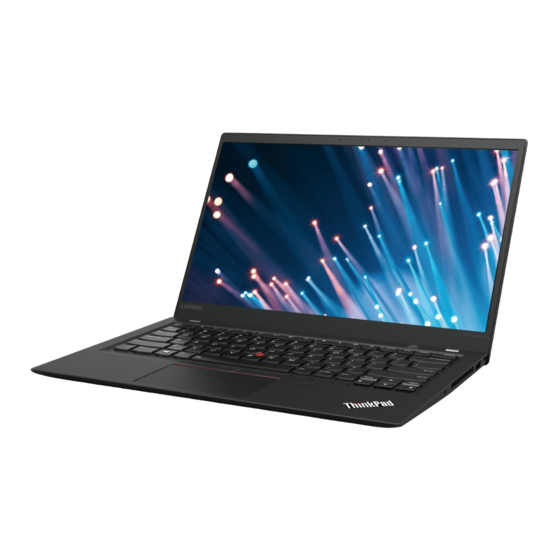

ThinkPad X1 Carbon
http://www.lenovo.com/support
®
Your ThinkPad X1 Carbon computer (20A7 and 20A8) comes with many innovative features designed to provide a pleasurable ownership
experience whether you use it for work, personal projects, or entertainment.
In the box
ThinkPad computer
Getting started
Read the safety information in the accompanying Safety and Warranty Guide before you begin the setup instructions.
Connectors
Power connector
Lenovo OneLink connector
TM
HDMI connector
®
Mini DisplayPort connector
Always-on USB 3.0 connector
Audio connector
®
Lenovo electronic manuals... for a greener planet!
Refer to the electronic User Guide for detailed product info
http://www.lenovo.com/UserManuals
Power cord ac power adapter Documentation
1.
Connect to power as shown. Ensure that all power cord connectors
are securely and completely plugged into receptacles.
2.
Press the power button to turn on the computer.
3.
Configure the operating system following the on-screen instructions
to complete the initial setup. This process takes several minutes.
Additional information about using your ThinkPad computer is in the User
Guide. See "Accessing your User Guide" later in this document.
USB 3.0 connector
Ethernet extension connector
Security-lock slot
Micro-SIM-card tray (on some models)
rmation:
Accessing your User Guide
Your User Guide is preinstalled on your computer in an electronic format. To access your User Guide, do the following:
 ®
Windows 8.1: Press the Windows key

Windows 7: Click or tap Start → Help and Support. Windows Help and Support opens. Click or tap Lenovo User Guide.
Ethernet extension adapter
The most up-to-date version of your User Guide is available at http://www.lenovo.com/UserManuals.
Controls
Shift
ThinkPad OneLink dock accessory
First Edition (January 2014)
© Copyright Lenovo 2014.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration "GSA" contract, use, reproduction,
or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
PN: SP40A25903
Printed in China
+ F1. Windows Help and Support opens. Click or tap Lenovo User Guide.
Ambient light sensor Fingerprint reader
Microphones
NFC control
Camera
ThinkPad trackpad
Screen (multi-touch or non-touch)
Shift key with indicator
Adaptive Keys
TrackPoint
Power button with indicator
* Double-tap the shift key to enable or disable Caps Lock mode. When the indicator is on,
the Caps Lock mode is enabled.
Note: The Adaptive Keyboard integrates dynamically changing keys that provide additional
functionality based on the type of application that is active. Refer to the accompanying
Adaptive Keys, Gestures, and Voice booklet for details.
You can attach your computer to any of the ThinkPad OneLink dock series to
expand the working capability of your computer.
The ThinkPad OneLink dock attaches to monitors and USB devices, and also
provides power to your computer all from one cable.
To purchase a ThinkPad OneLink dock, go to:
http://www.lenovo.com/essentials
Shift *
®
pointing stick
