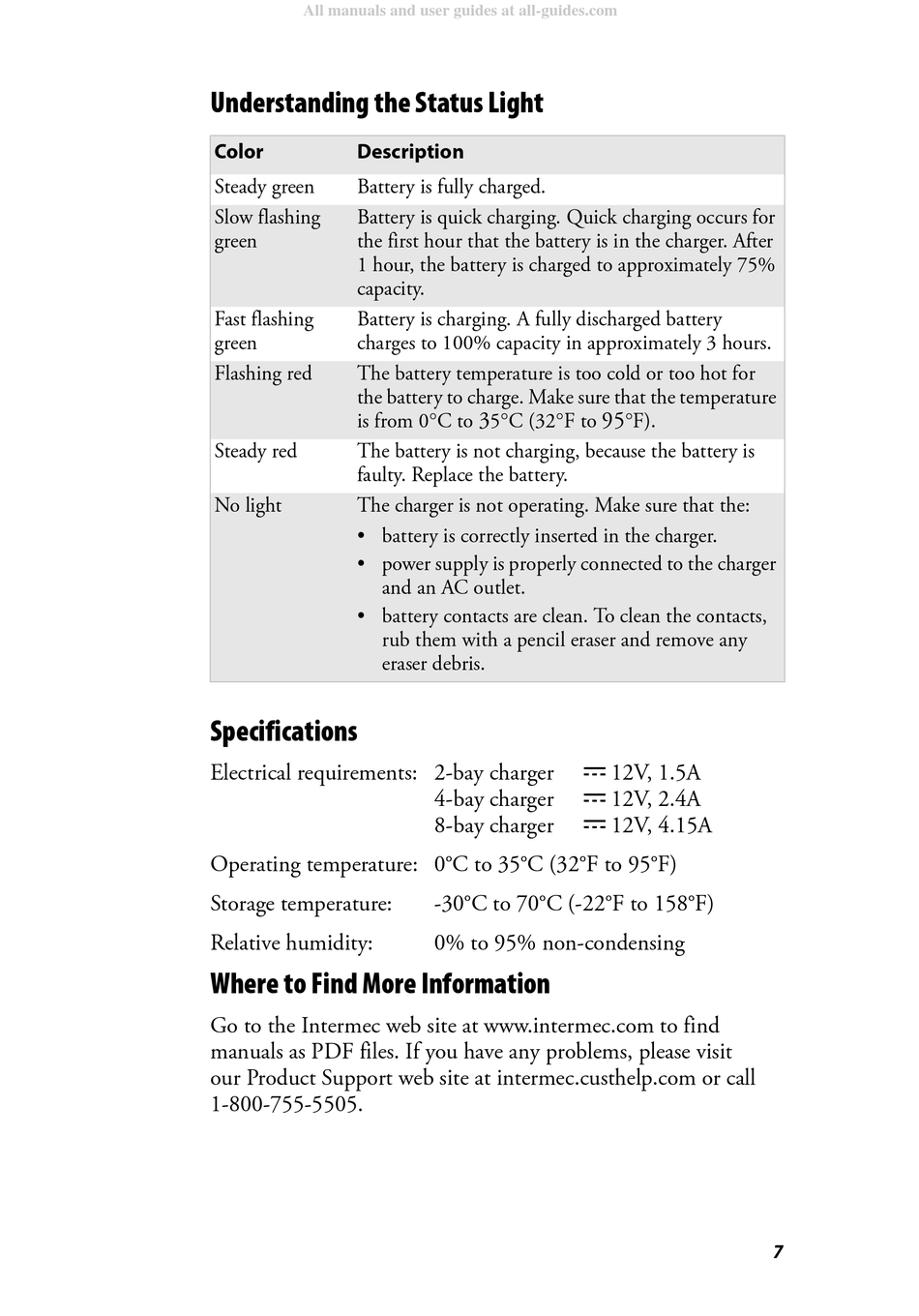

Understanding the Status Light
Color Description
Steady green Battery is fully charged.
Slow flashing Battery is quick charging. Quick charging occurs for
green the first hour that the battery is in the charger. After
1 hour, the battery is charged to approximately 75%
capacity.
Fast flashing Battery is charging. A fully discharged battery
green charges to 100% capacity in approximately 3 hours.
Flashing red The battery temperature is too cold or too hot for
the battery to charge. Make sure that the temperature
is from 0°C to
Steady red The battery is not charging, because the battery is
faulty. Replace the battery.
No light The charger is not operating. Make sure that the:
• battery is correctly inserted in the charger.
• power supply is properly connected to the charger
and an AC outlet.
• battery contacts are clean. To clean the contacts,
rub them with a pencil eraser and remove any
eraser debris.
Specifications
Electrical requirements: 2-bay charger
Operating temperature: 0°C to 35°C (32°F to 95°F)
Storage temperature:
Relative humidity:
Where to Find More Information
Go to the Intermec web site at www.intermec.com to find
manuals as PDF files. If you have any problems, please visit
our Product Support web site at intermec.custhelp.com or call
1-800-755-5505.
3 95
5°C (32°F to
x 12V, 1.5A
x 12V, 2.4A
4-bay charger
x 12V, 4.15A
8-bay charger
-30°C to 70°C (-22°F to 158°F)
0% to 95% non-condensing
°F).
