Instruction manual Tele-Control
Please read this instruction manual carefully before use and check the product for eventual damage.
Pay attention that it is not in reach of children or unauthorized persons. At the end of its lifespan this
product has to be properly recycled.
Function
The Tele-control set contains a transmitter and 3 Receivers. This product can switch electrical
and electronic devices (lamps, TV-Sets, computers, christmas illumination, etc.) of a capacity of
up to 1000 W within a range of up to 5 m (free area). It is possible to switch on/off these devices
from any location through furniture and walls. The range inside buildings is limited according to the
building specific construction features.

Installation

Before using the Tele-control system it the following has to be done:
Remote control:
• Insert the battery (see chapter batteries picture ).
• Test the channel setting (see chapter settings).
Receiver:
• Test the channel setting (see settings).
• Assign the button to the socket (see settings).
• Plug the remote controlled socket into a safety socket (picture1).
• Plug in the device what should be remote controlled into the radio socket (picture1).
• Switch on the device what shall be controlled (picture 1).

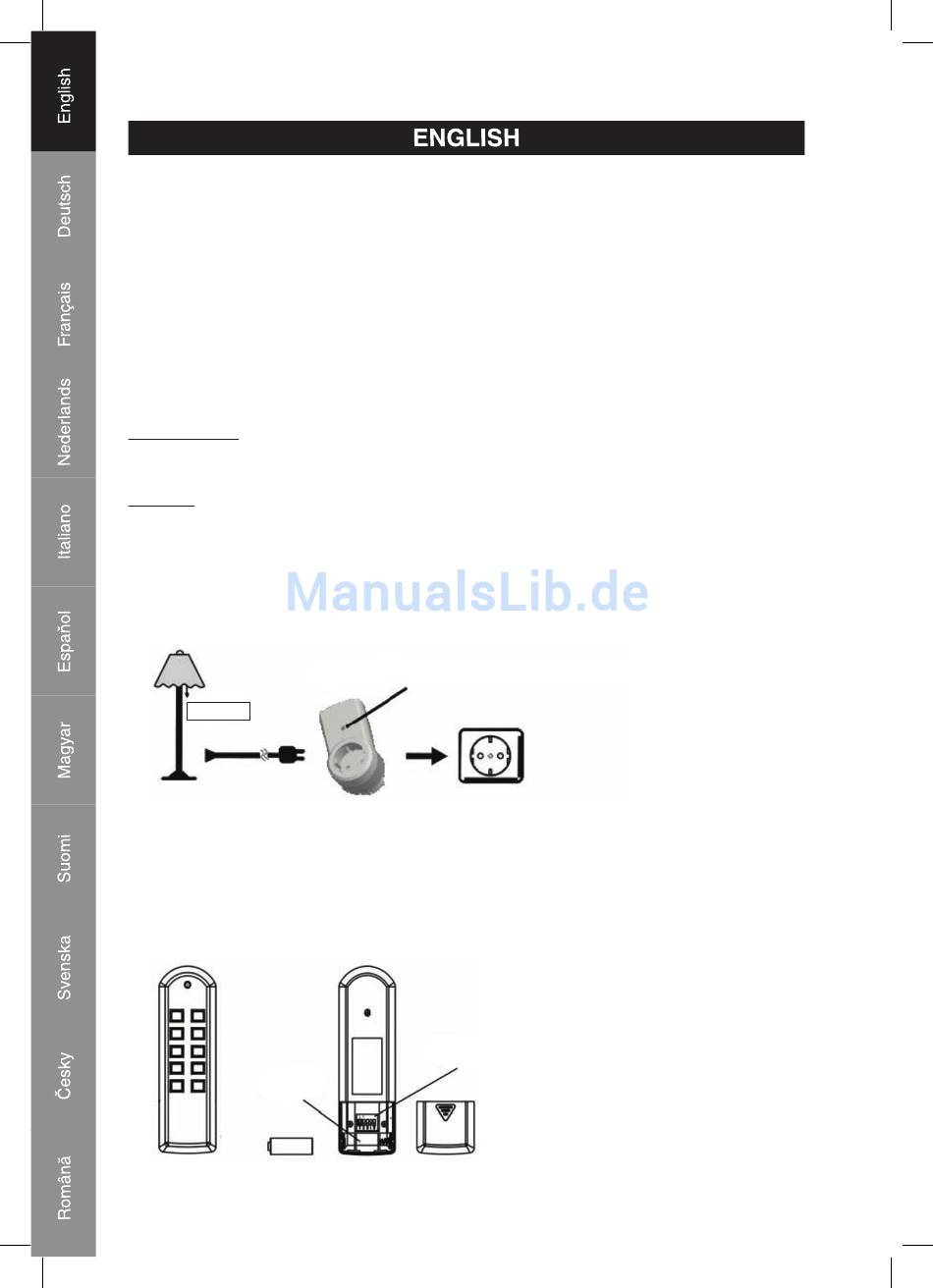

Picture 1
Control lamp signalises connection to the mains.
ON
Batteries
For the remote control a 1 V (A3) battery is used (included). Remove the cover of the battery
compartment at backside and insert the battery. Pay attention of the polarity symbols. The battery
should be changed when the range is considerable reduce or once a year. Used batteries should
not be disposed together with normal waste!
Picture 2
Battery case
Channel setting
(A-E, CODE 1-5)
