4. Assembling the changing table

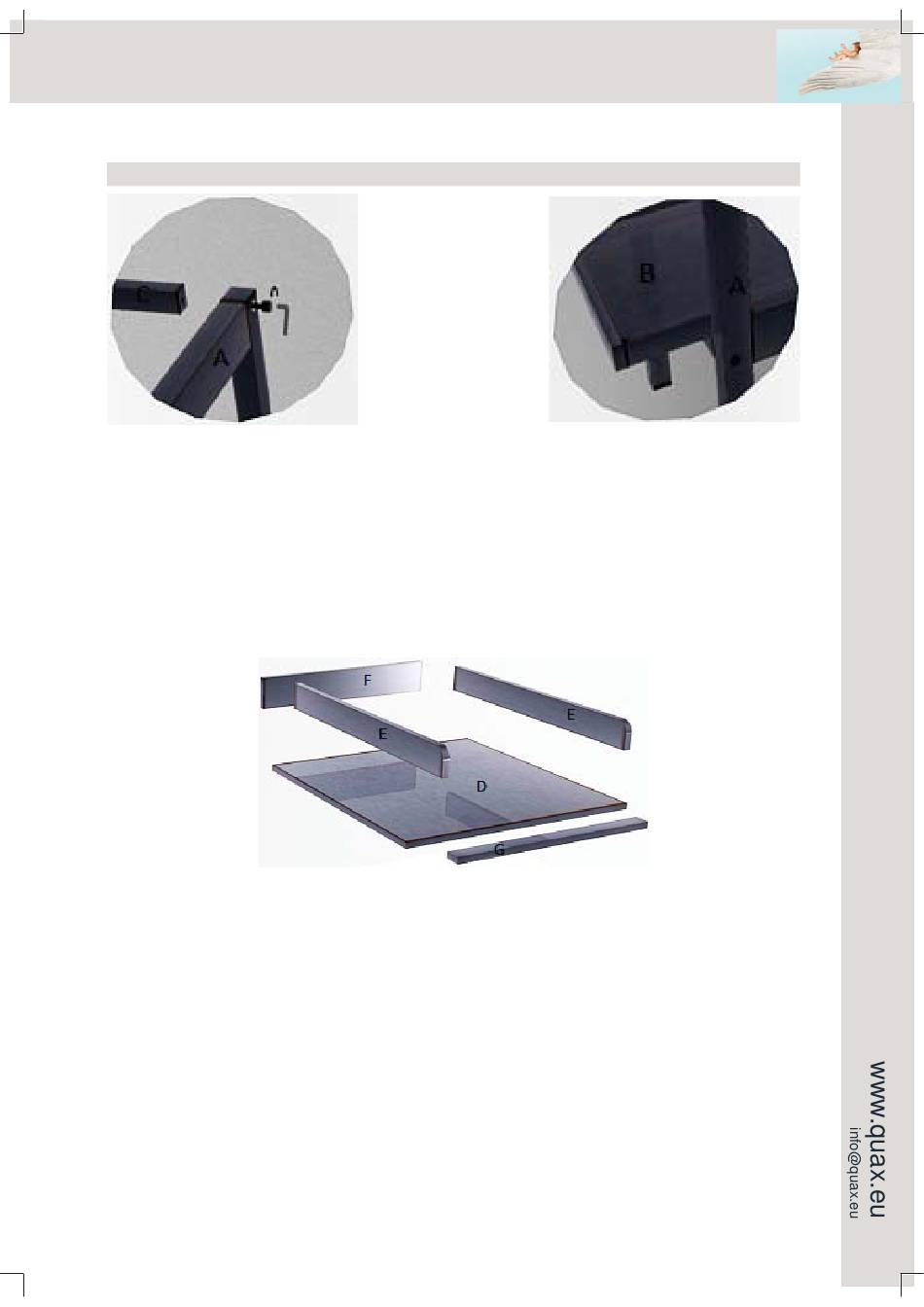

Step 1 : Use the 2 sides A, the 6 crossbars C, the 12 long bolts I, the 12 cylindrical nuts J and the hexago-
nal key N
Insert the cylindrical nuts (J) in the provided openings at the bottom of the crossbars (C). Push the bolts (I)
in the drillings of the sides (A) and connect the parts by means of the hexagonal key (N). Please note to
align the opening in the cylindrical nut with the bolt. Do not fully tighten the connections.
Step 2 : Use the parts of step 1 and both shelves B
Slide the shelves (B) diagonally across the sliders on the sides (A) and with the stoppers underneath the
sliders. Now tighten all connections of step 1.
Step 3 : Use the 2 barriers E, the back F, the connector G and the four short bolts M
Put the parts (E), (F) and (G) together, the connector placed at the bottom of the barriers. Tighten 2 bolts
(M) in the provided openings at the backside of the back (F). Tighten 2 bolts (M) in the provided openings
at the bottom of the connector (G).
Step 4 : Use the parts of step 3 and the top D
Slide the assembled extension on the top (D).
Step 5 : Use the parts of step 4, the 2 eccentrics K and the 2 connectors L
Tighten two connectors (L) in the provided openings in the middle of the top outsides (D). Insert two ec-
centrics (K) in the middle and upperside of the sides (A). Push the top with its connectors in the drillings
with the eccentrics and tighten these.
Step 6 : Use the parts of step 5 and the 4 wheels H
Insert the adapters for the wheels in the provided openings at the bottom of the sides (A) and push the
wheels (H) into place.
Luiertafel met mobiele leggers
Wickeltisch mit ausziehbaren Regalen
Table à langer avec étagères mobiles
Changing table with mobile shelves
