7. LOADING THE RIBBON

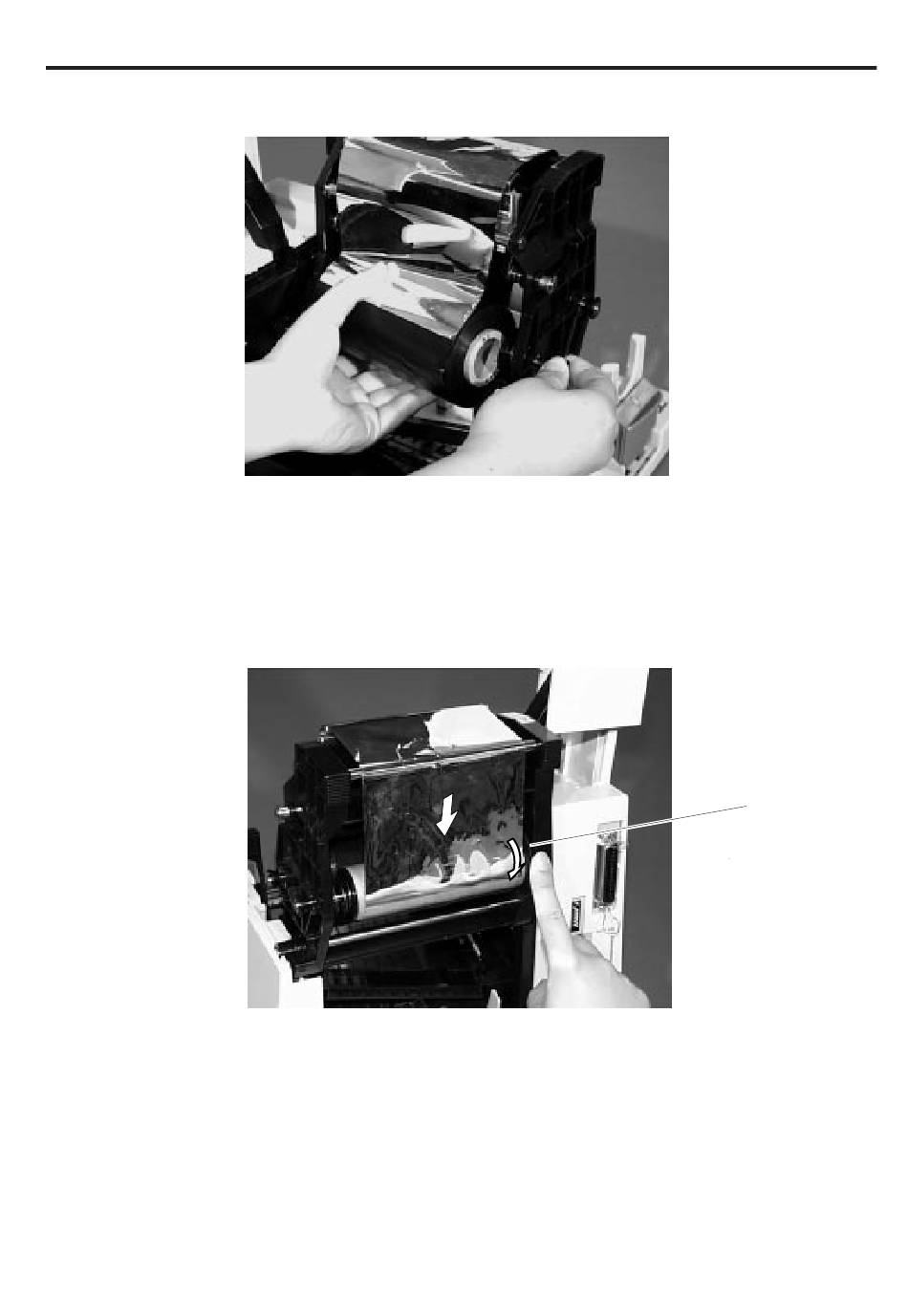

5. Set the ribbon core (supply side) by fitting the protrusion into the notch.
6. Turn the guide wheel in the arrow-indicating direction to remove any slack of the ribbon.
NOTE: Make sure that the ribbon has no wrinkles and the protrusions are fitted into the notches of the
ribbon cores.
E7-2
ENGLISH VERSION EO1-33005
7. LOADING THE RIBBON
Fig. 7-3
Guide Wheel
Fig. 7-4
