Nacon PC-CL510 Bedienungsanleitung

oNACON
GAMING KEYBOARD
PC-CL510
EN
Thank you for purchasing this NACON product. In case of a malfunction please refer to the support information at
the end of this manual. We highly appreciate any feedback which helps us to improve our products. Please keep this
instruction manual for future reference.
WARRANTY
This product bearing the NACON trademark, is guaranteed by the manufacturer for a period of 1 year from the date
of purchase, and will, during this period, be replaced with the same or a similar model, at our option, free of charge if
there is a defect due to faulty material or workmanship. This guarantee does not cover defects arising from accidental
damage, misuse or wear and tear and is available only to the original purchaser of the product. This does not aff ect your
statutory rights.
PRODUCT SPECIFICATIONS

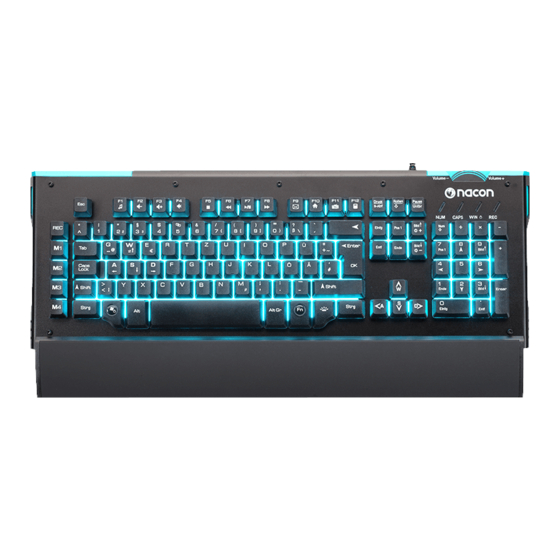

• Gaming keyboard with 104/105 keys
• Metal front casing
• 4 dedicated macro keys
• Hardware based "on-the-fl y" macro recording
• WinLock function
• Swappable movement keys
• Selectable key response time
• 12 Multimedia function keys
• Blue/Red/Purple backlighting (static or with pulse eff ect)
• Detachable wrist rest
• USB cable (app. 1.8m)
• Compatible with Windows 2000/XP/Vista/7/8/10
CONTENTS OF THE PACKAGE
• NACON CL-510 gaming keyboard
• Wrist rest
• Instruction booklet
CONTROL ELEMENTS
1. Dedicated macro keys M1 – M4 & macro recording
2. Windows key with WINLOCK function
3. Function key FN
4. MULTIMEDIA Functions
5. Backlight colour key
6. Backlight brightness
7. Movement key selection . Moveme e nt key selection
8. Key response selection . Key resp p onse selection
9. Detachable wrist rest . Detacha a ble wrist rest
10. Volume +/- 0. Volume +/-
8 7
1
2
INSTALLATION NSTALLATION
The NACON CL-510 is a plug'n'play device. This means no additional driver software is needed to operate it. Simply he NACON CL-510 is a plug'n'play device. This means no additional driver software is needed to operate it. Simply
insert the plug of your new keyboard into one of the free USB sockets of your computer and after some seconds the nsert the pl g of o r ne ke board into one of the free USB sockets of o r comp ter and after some seconds the
keyboard should be operational.
LOCKABLE WINDOWS KEY (WINLOCK)
By default pressing the Windows key (2) the start menu will appear on your screen. If you´re in the middle of your game,
accidently pressing this key would therefore result in leaving your active game. To prevent this, you can deactivate this
function by fi rst pressing the Windows (2) and then the function key FN (3).
LED CONTROLS
Your NACON CL-510 keyboard features backlit keys for enhanced gameplay in dark environments. You can control the
brightness of the LEDs or turn them completely off , by pressing FN (3) and PAGE UP / DOWN (6).
The colour of the backlight can be chosen by pressing the backlight key (5). You can choose between red, blue and
purple backlight. By pressing FN (3) and the backlight key (5) you can switch between a constant single colour backlight
or a light eff ect with colour cycle and pulse eff ect.
MACRO AND PROFILE KEYS
Macros are recordings of singular or a sequence of key presses. Usually these are regularly used in certain games or
applications, so it is convenient to have them tied to one key and fi re them up when needed.
Your NACON CL-510 features 4 dedicated macro keys, labeled M1 to M4 (1) which are located on the left side of the
keyboard. After you have set up a macro and assigned it to one of those keys, you can execute it directly by pressing the
according key.
To record a macro fi rst press REC (the REC LED will start to fl ash slowly), then press the macro key you want the macro to
be recorded for. The REC LED will start to fl ash faster. Now enter the desired key sequence and save it by pressing REC
again.
MOVEMENT KEYS
Most PC gamers prefer the WASD keys to control the movement or camera in games. They're also people who rather
like to use the cursor keys instead. That's why your NACON CL-510 comes with an integrated feature to swap these
keys quickly and easily. By pressing FN (3) and then W (7) you will swap the cursor keys to the WASD and vice versa. By
pressing this combination again you restore the default setting.
BB5039
10
4
6
3 5
9
KEY RESPONSE
By default your NACON CL-510 uses a key response time of MS, which means that if you keep a key pressed the device
will transmit this key in certain intervals to your computer. You can slow this process down to 80% of the original setting
by pressing FN (3) and Q (8). By pressing this combination again you restore the default setting
MULTIMEDIA FUNCTIONS
Your NACON CL-510 keyboard features several hot keys for common multimedia functions. These are located on the
function key section F1 – F12 and can be accessed by pressing the FN (3) key and the according function key. The
functions are:
Fn + F1 : Media player – Start default media player application
Fn + F2 : Media player – Volume -
Fn + F3 : Media player – Volume +
Fn + F4 : Media player – Volume mute
Fn + F5 : Media player – Stop playback
Fn + F6 : Media player – Skip to previous track
Fn + F7 : Media player – Playback / Pause
Fn + F8 : Media player – Skip to next track
Fn + F9 : Applications – Start default mail program
Fn + F10 : Applications – Start default web browser
Fn + F11 : Function – Lock / Unlock keyboard
Fn + F12 : Applications – Start calculator application
RECYCLING
This product should not be disposed of in normal household rubbish. Please take it to a nominated collection point.
Recycling is important and will help to protect our environment from reduced landfi ll waste
IMPORTANT SAFEGUARDS & PRECAUTIONS
1. This Unit is for indoor use only. Never expose to direct sunlight or wet weather conditions.
2. Do not expose the unit, to splashing, dripping, rain or moisture. Do not immerse in liquid.
3. Do not expose to dust, high humidity, high temperatures or mechanical shock.
4. Do not use if the equipment is damaged.
5. Do not disassemble; there are no serviceable parts inside.
6. For external cleaning, use a soft, clean, damp cloth only. Use of detergents may damage the fi nish and leak inside.
ERGONOMICS
Holding your hand in the same position for a longer period of time can lead to aching and pain. If this occurs repeatedly
please consult your doctor.
• As a precaution we recommend that you take a 15 minute break every hour
TECHNICAL SPECIFICATION
• USB keyboard, QWERTY layout
• 5 V, max. max. 200 mA power consumption
• Weight: 1550 g
• Height x Width x Depth (with wrist rest): 30 mm x 504 mm x 225 mm
TECHNICAL HELPLINE INFORMATION
For UK support contact: support@bigben.fr
LEGAL LINES
Windows XP/VISTA /7/8/10 are registered trademarks of Microsoft Corporation.
® ®
PC-CL510DE
Model No. : BB5039
Made in China
