oNACON

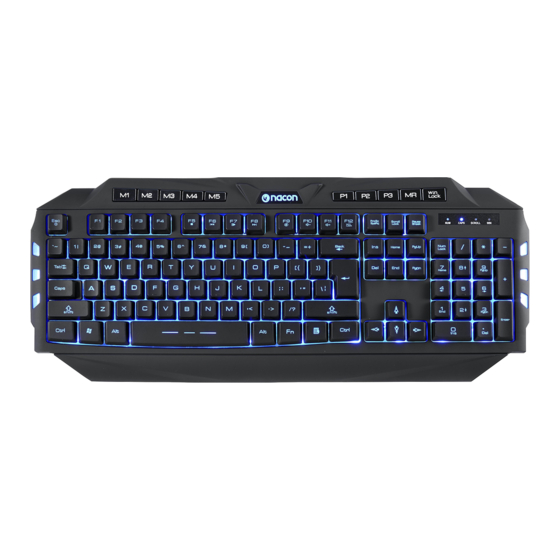

GAMING KEYBOARD
PC-CL200
EN
Thank you for purchasing this NACON product. In case of a malfunction please refer to the support information at
the end of this manual. We highly appreciate any feedback which helps us to improve our products. Please keep this
instruction manual for future reference.
WARRANTY
This product bearing the NACON trademark, is guaranteed by the manufacturer for a period of 1 year from the date
of purchase, and will, during this period, be replaced with the same or a similar model, at our option, free of charge if
there is a defect due to faulty material or workmanship. This guarantee does not cover defects arising from accidental
damage, misuse or wear and tear and is available only to the original purchaser of the product. This does not aff ect your
statutory rights.
PRODUCT SPECIFICATIONS
• Gaming keyboard with 104/105 keys
• 5 dedicated macro keys
• Hardware based "on-the-fl y" macro recording
• Up to 3 gaming profi les
• WinLock function
• Blue backlighting (static or with pulse eff ect)
• USB cable (app. 1.5m)
• Compatible with Windows 2000/XP/Vista/7/8/10
CONTENTS OF THE PACKAGE
• NACON CL-200 gaming keyboard
CONTROL ELEMENTS
1. Dedicated macro keys M1 – M5
2. Profi le selection keys P1 – P3
3. Macro recording key MR
4. WINLOCK key
5. Function key FN
6. MULTIMEDIA Functions
7. Backlight control
8. Windows key
1
7 6
8
INSTALLATION
The NACON CL-200 is a plug'n'play device. This means no additional driver software is needed to operate it. Simply
insert the plug of your new keyboard into one of the free USB sockets of your computer and after some seconds the
keyboard should be operational.
LOCKABLE WINDOWS KEY (WINLOCK)
By default pressing the Windows key (8) the start menu will appear on your screen. If you´re in the middle of your game,
accidently pressing this key would therefore result in leaving your active game. To prevent this, you can deactivate this
function by pressing the WinLock (4) key.
LED CONTROLS
Your NACON CL-200 keyboard features backlit keys for enhanced gameplay in dark environments. You can control
the brightness of the LEDs or turn them completely off , by pressing [FN] and [ESC] simultaneously (7). The order of the
settings are:
Backlight off – dimmed – bright – bright with pulse eff ect.
MACRO AND PROFILE KEYS
Macros are recordings of singular or a sequence of key presses. Usually these are regularly used in certain games or
applications, so it's convenient to have them tied to one key and fi re them up when needed.
Your NACON CL-200 features 5 dedicated macro keys, labeled M1 to M5 (1) which are located on the top of the
keyboard. After you have set up a macro and assigned it to one of those keys, you can execute it directly by pressing the
according key.
To record a macro fi rst press [MR] (the WIN LED will start to fl ash red), then press the macro key you the macro to be
recorded for. The WIN LED will now be constantly lit. Now enter the desired key sequence and save it by pressing [MR]
again.
Your NACON CL-200 also features three profi les. Each profi le can store its own set of fi ve macro keys, backlight setting
and WINLOCK status. If you want to store your macros to a specifi c profi le, you need to press the corresponding key (P1
to P3) fi rst, in order to activate that profi le. NOTE: Final keys may change, waiting for confi rmation.
BB5038
4
3
2
5
MULTIMEDIA FUNCTIONS
Your NACON CL-200 keyboard features several hot keys for common multimedia functions. These are located on
the function key section F5 – F12 and can be accessed by pressing the FN key and the according function key. The
functions are:
Fn + F5 : Media player – Stop playback
Fn + F6 : Media player – Skip to previous track
Fn + F7 : Media player – Playback / Pause
Fn + F8 : Media player – Skip to next track
Fn + F9 : Media player – Volume mute
Fn + F10 : Media player – Volume -
Fn + F11 : Media player – Volume +
Fn + F12 : WinLock (see "Lockable Windows key (WinLock)")
RECYCLING
This product should not be disposed of in normal household rubbish. Please take it to a nominated collection point.
Recycling is important and will help to protect our environment from reduced landfi ll waste.
IMPORTANT SAFEGUARDS & PRECAUTIONS
1. This Unit is for indoor use only. Never expose to direct sunlight or wet weather conditions.
2. Do not expose the unit, to splashing, dripping, rain or moisture. Do not immerse in liquid.
3. Do not expose to dust, high humidity, high temperatures or mechanical shock.
4. Do not use if the equipment is damaged.
5. Do not disassemble; there are no serviceable parts inside.
6. For external cleaning, use a soft, clean, damp cloth only. Use of detergents may damage the fi nish and leak inside.
ERGONOMICS
Holding your hand in the same position for a longer period of time can lead to aching and pain. If this occurs repeatedly
please consult your doctor.
• As a precaution we recommend that you take a 15 minute break every hour.
TECHNICAL SPECIFICATION
• USB keyboard
• 5 V, max. 200 mA power consumption
• Weight: 690 g
• Height x Width x Depth: 193 mm x 462 mm x 32 mm
TECHNICAL HELPLINE INFORMATION
For UK support contact: support@bigben.fr
LEGAL LINES
Windows ® XP/VISTA ® /7/8/10 are registered trademarks of Microsoft Corporation.
PC-CL200DE
Model No. : BB5038
Made in China
