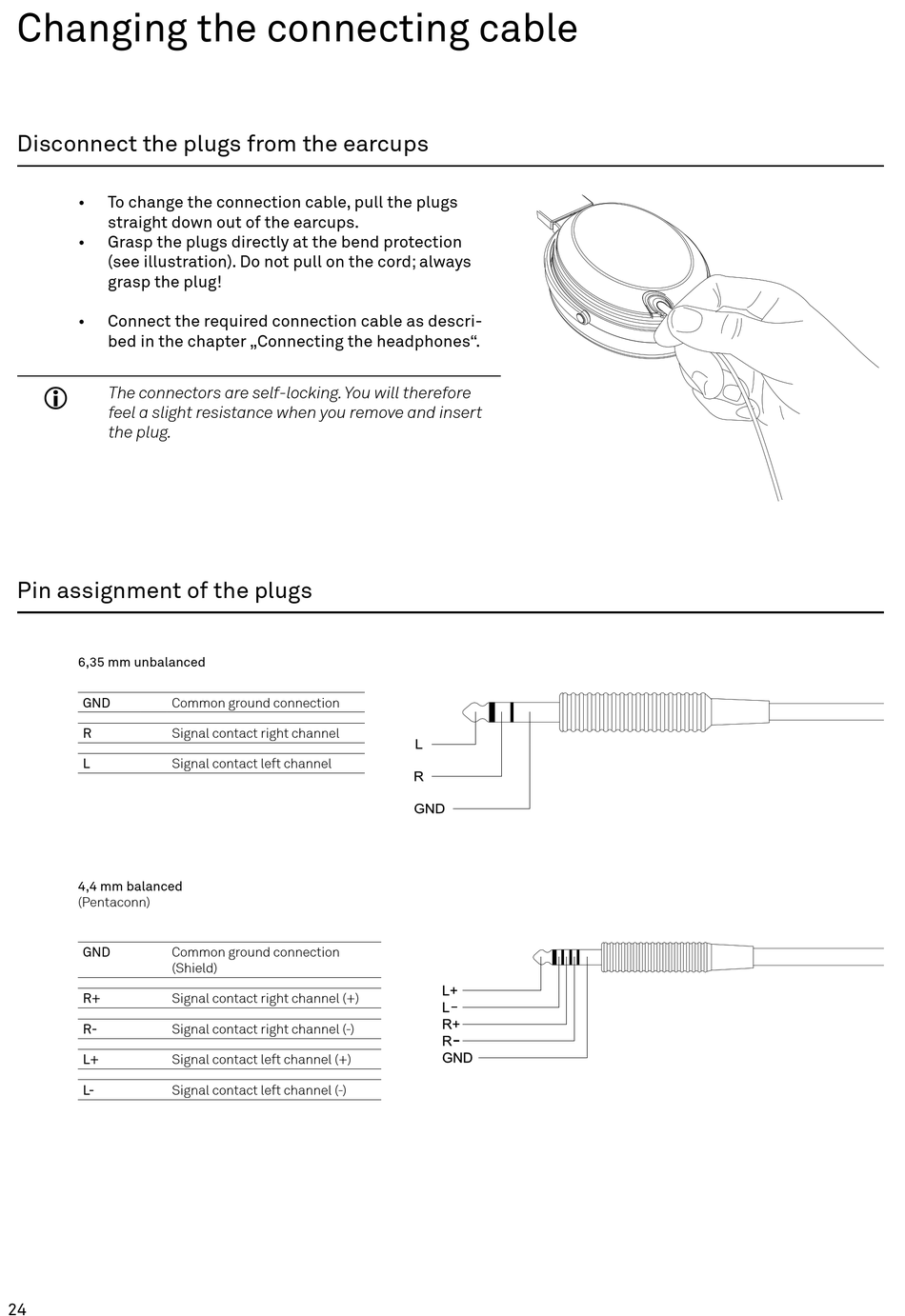

Changing the connecting cable

Disconnect the plugs from the earcups

To change the connection cable, pull the plugs
straight down out of the earcups.
Grasp the plugs directly at the bend protection
(see illustration). Do not pull on the cord; always
grasp the plug!
Connect the required connection cable as descri-
bed in the chapter „Connecting the headphones".
The connectors are self-locking. You will therefore
j
feel a slight resistance when you remove and insert
the plug.

Pin assignment of the plugs

6,35 mm unbalanced
GND
Common ground connection
R
Signal contact right channel
L
Signal contact left channel
4,4 mm balanced
(Pentaconn)
GND
Common ground connection
(Shield)
R+
Signal contact right channel (+)
R-
Signal contact right channel (-)
L+
Signal contact left channel (+)
L-
Signal contact left channel (-)
