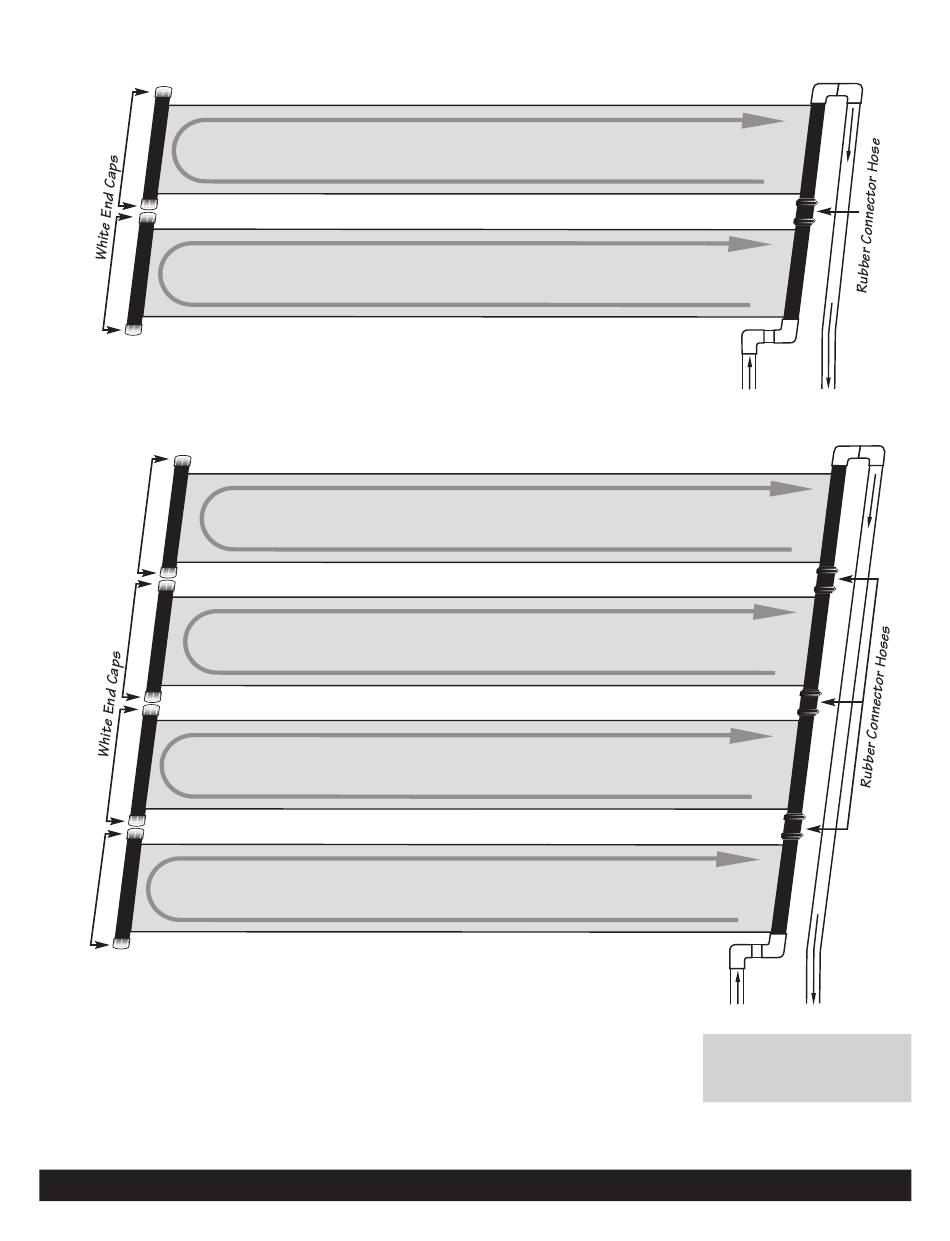

CONNECTIONS FOR TWO COLLECTORS
CONNECTIONS FOR FOUR COLLECTORS
• Use connector hose provided.
• If collectors are to be mounted on a roof, you must purchase kit SK43
for each collector. For high wind areas you will also need kit SK24
for each collector. Call your dealer or SmartPool at 888-560-7665.
• Slots are provided in each solar collector for mounting.
• Maximum of four collectors may be plumbed in series.
• Pitch the collectors slightly toward the end caps for winterizing and draining (1"-2").
• Do not add additional mounting hardware other than SmartPool factory approved mounting kits.
CAUTION: Use Of Non-Factory Approved Mounting Hardware, Will Void Your Warranty
3
Do Not Mount Collectors
Using "C" Clamps
On Header Pipes!
