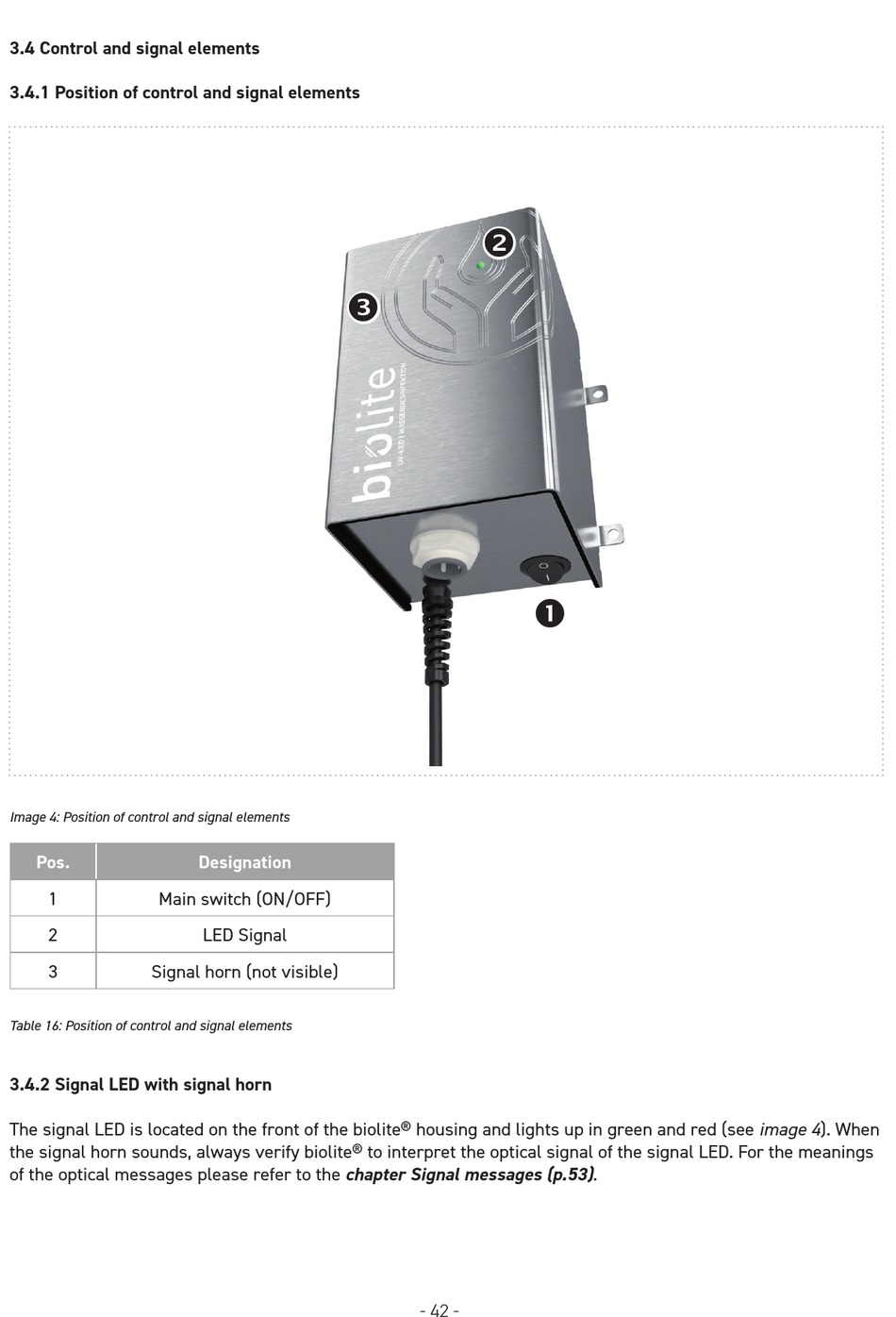

3.4 Control and signal elements

3.4.1 Position of control and signal elements

Image 4: Position of control and signal elements
Pos.
1 Main switch (ON/OFF)
2
3 Signal horn (not visible)
Table 16: Position of control and signal elements

3.4.2 Signal LED with signal horn

The signal LED is located on the front of the biolite® housing and lights up in green and red (see image 4). When
the signal horn sounds, always verify biolite® to interpret the optical signal of the signal LED. For the meanings
of the optical messages please refer to the chapter Signal messages (p.53).
 
Designation
LED Signal
 

