Web-Based Management

The switch is managed from an embedded web server, which offers advanced management features and lets you manage the switch from anywhere on
the network through a standard web browser. The Web-Based Management supports Internet Explorer 6.0 or later version.

Default Values

Change your user name and password for increased security.
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
User Name: root
Password: root

System Login

To configure the switch, you must log into the system via the internet.

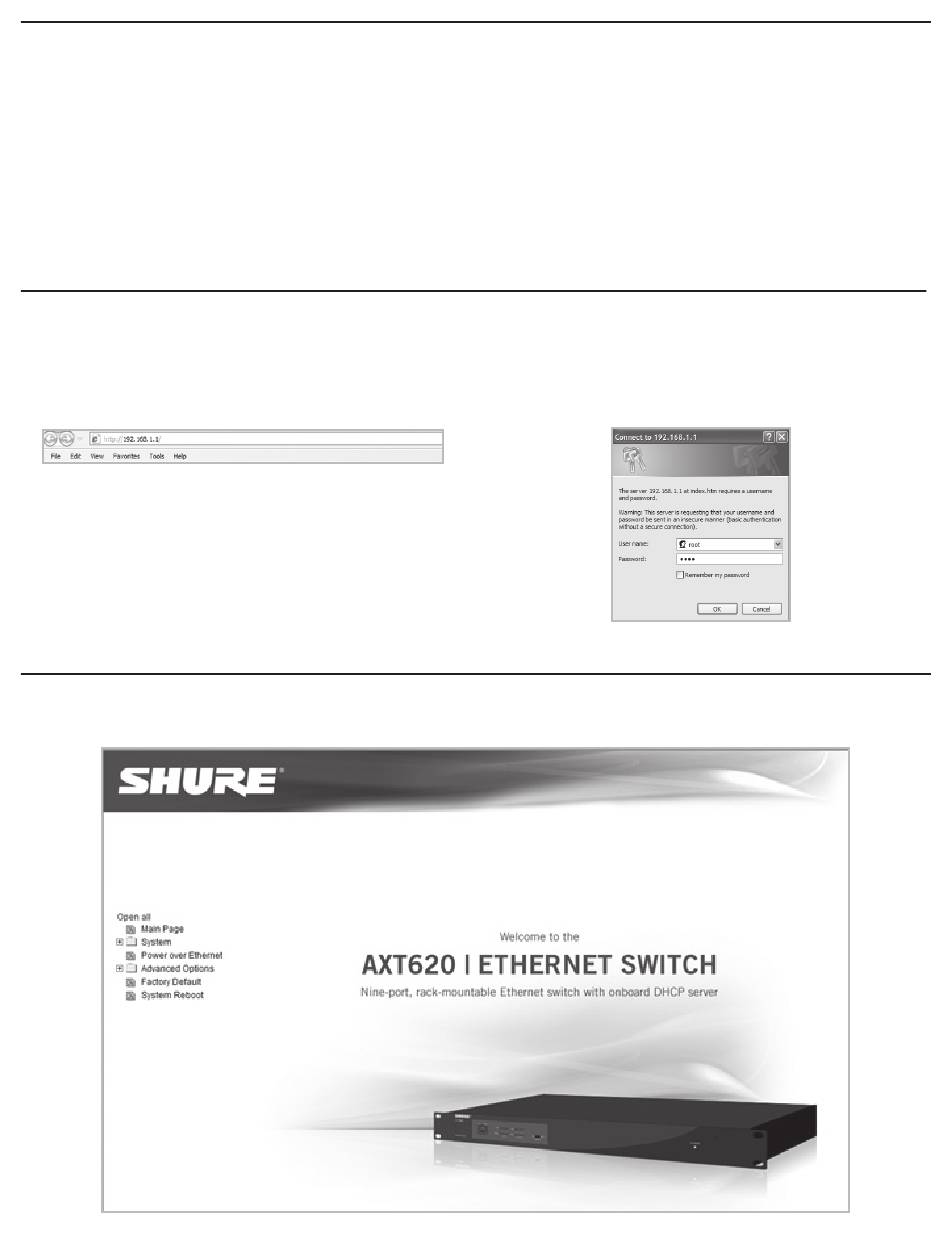

1. Open a web browser. In the address bar, enter the IP address of the
switch, and then press Enter.
Main Page
From the Main Page, you can navigate to the desired area of interest to configure and manage the switch options.
2. On the login window, enter your credentials. For the initial login, use
the default user name and password. Select OK. The Main page is
displayed.
5
