1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the DB3! Read the manual carefully before bringing this user-friendly door chime into service.
2. Features
• the DB3 can be used as a doorbell, a remote pager or a panic switch
• the DB3 has a range of approximately 240ft (= 80m)
• easy installation: no wiring or AC power required
• uses a coded radio signal to prevent the kind of false triggering traditionally caused by other devices
• a button on the remote control makes it easy to select the ringing tone
• meets the highest quality standards in telecommunications
• 16 different bell chimes: ding, ding-dong, Westminster, ...
• ideal for your home, the office, workshops, etc.
3. Installation
a) Transmitter (see figure below)
• insert a 12V GP23GA battery (incl.) and close the cover
• select a ringing tone, choose a suitable mounting location and attach the device to the wall
b) Receiver (see figure below)
• insert three AA-batteries (not incl.)
• install the receiver anywhere you like: the dining room, the study, the bedroom, etc.
• the user can hang the device on the included screw.
DB3

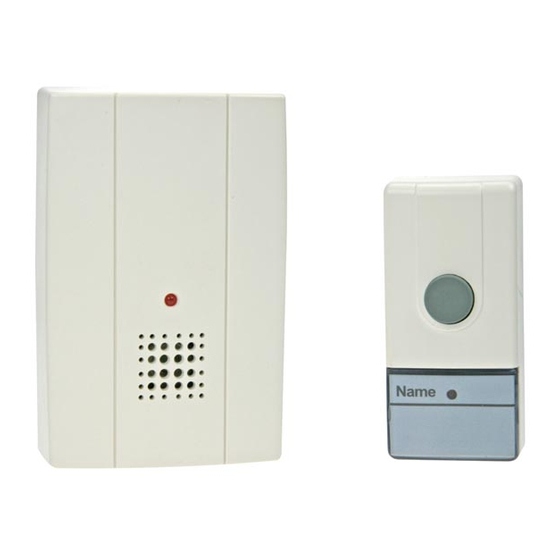

DB3 – WIRELESS REMOTE DOOR CHIME
récepteur (sonnette)
transmitter
zender
émetteur
emisor
Sender
receiver (chime)
ontvanger (bel)
receptor (timbre)
Empfänger (Klingel)
