TAPKO MECip-Sec Betriebs-/Montageanweisung

Product description
The MECip-Sec media coupler connects both media KNX IP and KNX TP.
Used as KNX IP Router, it couples KNX IP/Ethernet and TP bus. KNXnet/IP
(Secure) Routing and Tunneling are supported. Secure Tunneling, Secure
Commissioning, and IP Backbone Security can be activated.
MECip-Sec is able to filter the traffic according to the installation place in
the bus system hierarchy and according to the built-in filter tables for
group-oriented communication. Configuring from subline to main line
can be deactivated. Used as Interface, MECip-Sec provides configuring,
commissioning, visualization, protocolling and diagnostic operation.
Operational and filtering states, malfunction and faulty communication
are indicated by LEDs. Filtering can be temporarily deactivated on button
press (Function button), i.e. to ease commissioning. Long messages with
up to 240 bytes APDU length are supported. For IP (Secure) Tunneling,
four (password-protected) Tunneling channels are available.
MECip-Sec is shown as UPnP network device. A disengageable web
front-end can be accessed to read out device settings, remotely activate
functions and watch a 60 min busload history diagram. The bootloader
function enables remote firmware updates via IP/Ethernet.
MECip-Sec is suitable for 35 mm DIN rails and installation in distribution
boards. Supplied by the KNX bus line, it does not require an external
power supply. KNX IP devices can be connected directly and via Ethernet.
Requirements of Directives EMC, RoHS and LVD are met. Standards for
residential, commercial, and industrial environments are fulfilled. The full
text of the EU declaration of conformity is available at the following
internet address: www.tapko.de/ce
Technical specifications
Power input
Power supply:
Current consumption:
Housing
Dimensions (HxWxD):
Mounting (IEC60715):
Width in space units:
KNX bus connection:
IP connector:
Weight:
Environmental conditions
Operating temperature:
Storage temperature:
Ambient humidity:
Mounting, commissioning and safety notes
• After connection to the KNX bus system, the device works with its
default settings as intended
•
Warning: Do not connect to 230 V. The device is supplied by the
KNX bus and does not require any additional external power supply
• The device may only be installed and put into operation by a
qualified electrician or authorized person
• For planning and construction of electric installations the appropriate
specifications, guidelines and regulations in force of the respective
country have to be complied
• For mounting use an appropriate equipment according to IEC60715
• Installation on a 35 mm DIN rail (TH35)
• Connect the KNX bus line as for common KNX bus connections with a
KNX bus cable, to be stripped and plugged into a KNX TP connector
• Do not damage electrical insulations during connecting
• Installation only in dry locations
• Accessibility of the device for operation and visual inspection must be
provided
• For changing the configuration use the ETS
Release version/date: R1.1 / December 2019
© 2001-2019 TAPKO Technologies GmbH
Im Gewerbepark A15, 93059 Regensburg, Germany
Details, modifications and corrections may be subject to change without notice. TAPKO gives no warranty for the accuracy of the document. All rights reserved.
Operating Instructions
21...30 V DC SELV
< 20 mA
90 x 36 x 71 mm
35 mm top-hat rail (TH35)
2 modules at 18 mm
KNX connector (red/black)
Ethernet (RJ45, female)
68 g
-5...45 °C
-20...60 °C
5...93 % (non-condensing)

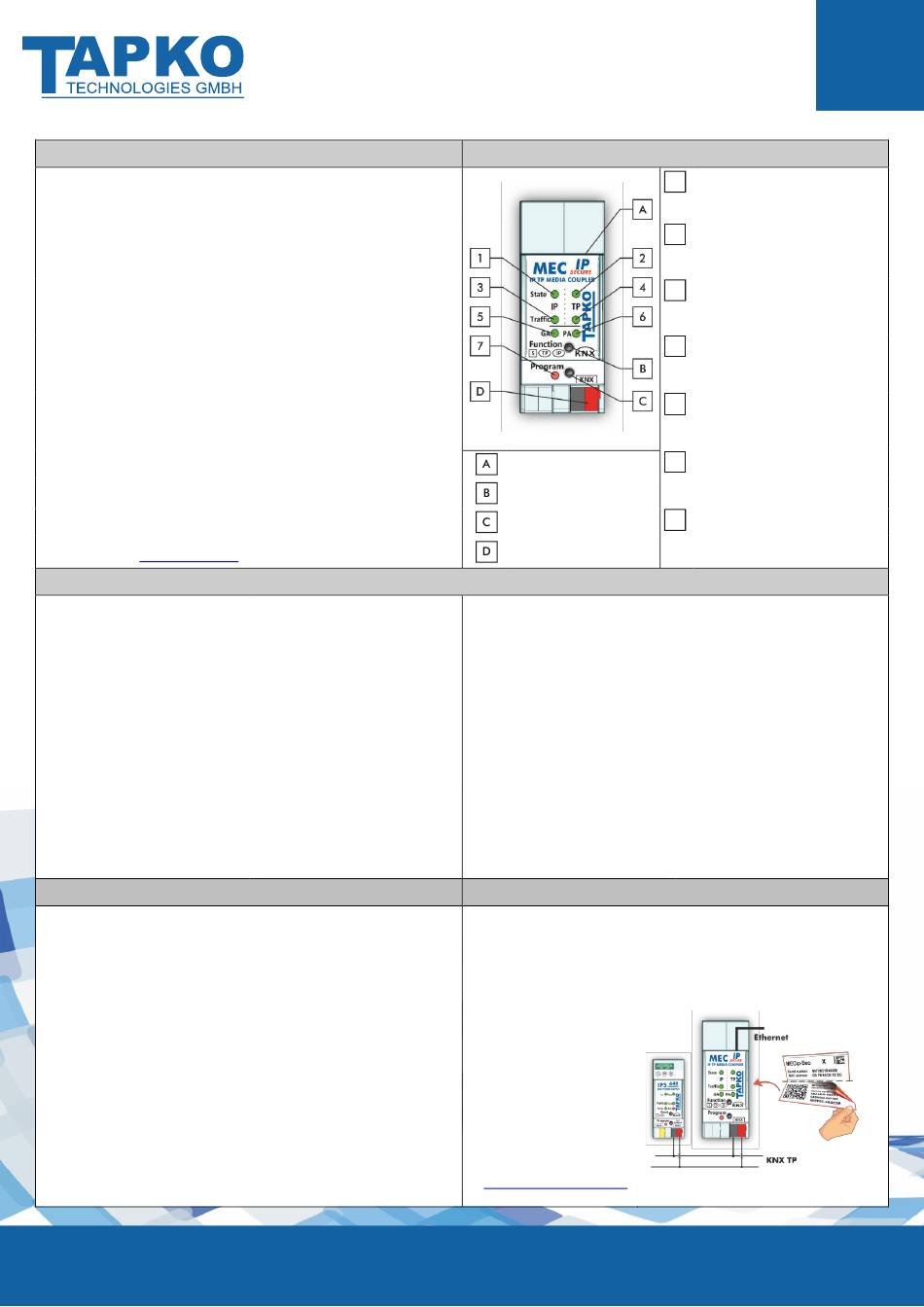

Connectors, buttons and LEDs description
Ethernet connector
Function button
Programming button
KNX TP connector
Electrical safety
Pollution degree (IEC60664):
Protection type (IEC60529):
Protection class (IEC61140):
Overvoltage category (IEC60664):
Approbation (ISO/IEC14543-3):
CE Marking
EU Directives:
Standards:
Installation and maintenance
• The housing must not be
opened
• Protect the device from
moisture, dirt and
damage
• The device needs no
maintenance
• If necessary, the device
can be cleaned with a dry
cloth
• In the case of damage (at
storage, transport) no
repairs may be carried
out by unauthorized
persons
• Configuration details and
ETS database:
www.tapko.de/mecip-sec
State IP (Main line)
1
green: Main line OK
orange: Manual Function active
Bus state KNX TP (Subline)
2
green: Subline OK
Telegram traffic IP (Main line)
3
green (blinking):
Telegram traffic extent
Telegram traffic KNX TP (Subline)
4
green (blinking):
Telegram traffic extent
red (blinking):
Transmission error
Group Address routing
5
green: Filter active
orange: Route all
red: Block all
<off>: Main line / subline different
Physical Address routing
6
green: Filter active
orange: Route all
red: Block all
<off>: Main line / subline different
Programming LED
7
red: Programming Mode active
red (blinking):
No IP connection
2
IP20
III
II
KNX-certified
LVD (2014/35/EU)
EMC (2014/30/EU)
RoHS (2011/65/EU)
EN50491-5-1/-2/-3
EN50581
EN60950-1
EN61000-6-2/-3
IEC60950-1
• Device Certificate and Serial Number
are placed on a label sidely adhered.
For archiving, the certificate can be cut
off and removed. Afterwards, the cut-
off part can only be identified by
comparison of the Serial Number.
MECip
SECURE
