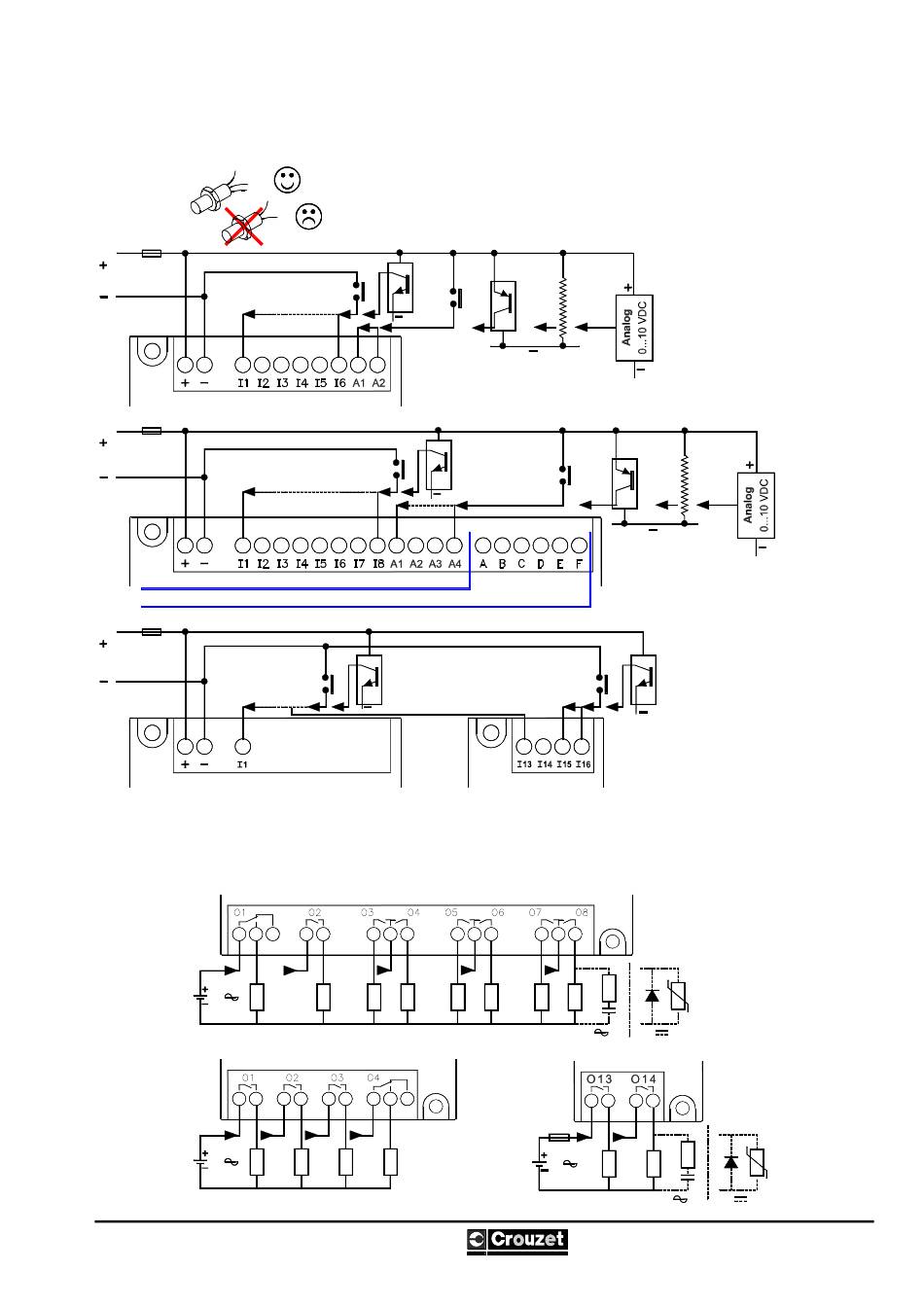

3. Câblage / Wiring / Anschlussschema / Cablaggio / Cableado
3.1 Entrée / Input / Eingangsspannung / Ingresso / Entrada : 24 VDC (-15%, +20%)
Température ambiante / Ambient temperature / Umgebungstemperatur / Temperatura ambiente : -5 °C +55 °C
(1)
24VDC
SA/EC/CN 12N
(1)
24VDC
SA/EC/CN 20N
XT 20N
(1)
24VDC
XT20N
3.2 Sorties / Output / Ausgang / Uscita / Salida
Charge résistive / Resistive load / Ohmsche Last / Carica resistiva / Carga resistiva : 8A 250 VAC / 30 VDC
SA/EC/XT/CN 20N
ou
SA/EC/CN 12N
ou
NTR 760
- 1500 0198
1725 S. Johnson Rd., New Berlin, WI, 53146, 262-446-0000, Fax 262-446-0300, 877-268-3700
10 KΩ max
2.2 KΩ 0.5 W : valeur optimale / optimum value / Optimaler Wert. / valore
ottimale / valor óptimo
XC01N
Crouzet Sales, Gross Automation
www.grossautomation.com
fusible ou coupe-circuit
Fuse or circuit-breaker
Ultraschnellsicherung oder
Geräteschutzsicherung
Fusibile o interruttore
Fusible o interruptor de
circuito.
XC01N
(1)
ou
(1)
05/2002 - 4/4
