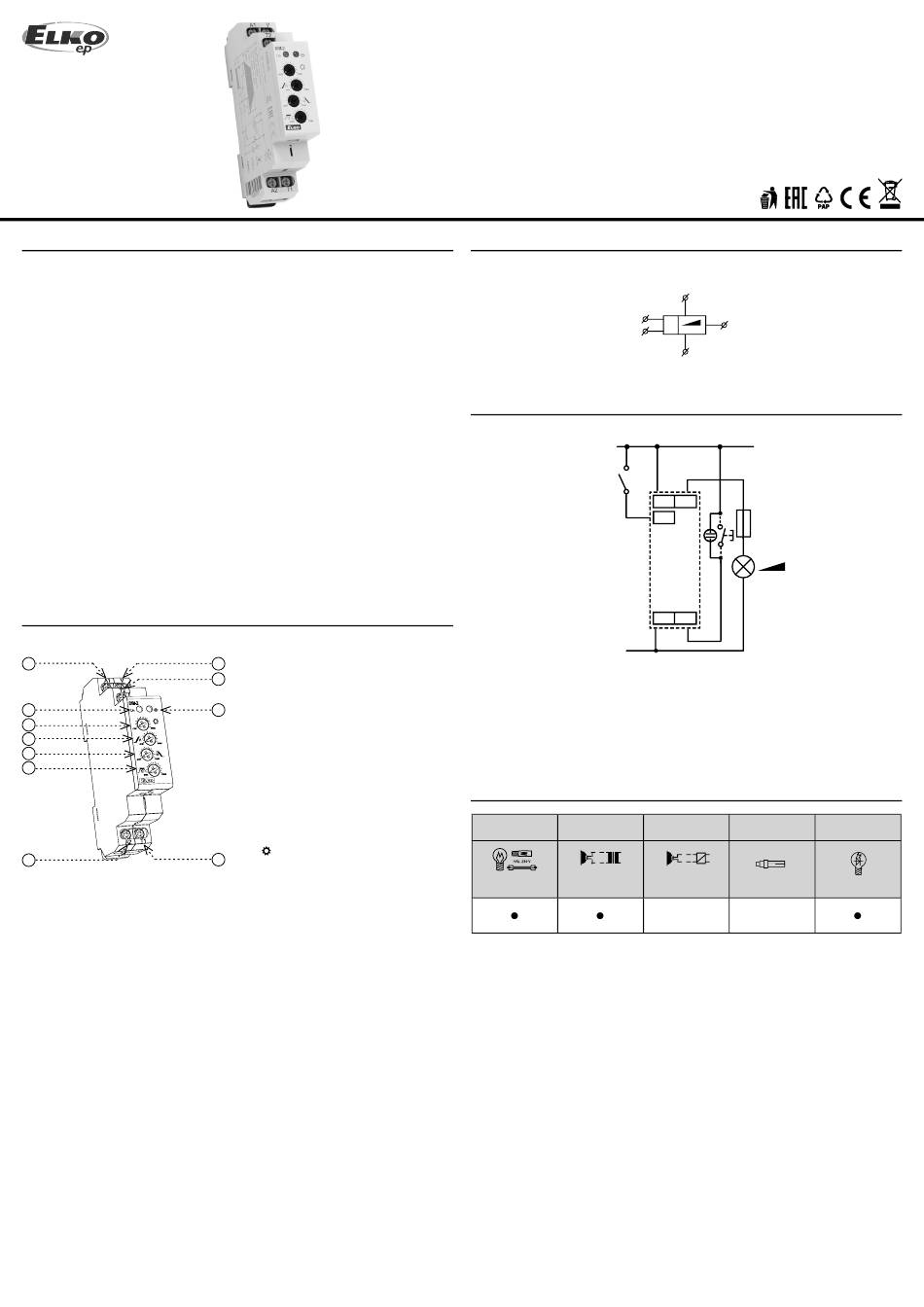

Characteristics
• Designated for dimming el. bulbs, halogen lights and halogen lights with winding
transformers and Dimmable LED
• Intelligent control of halogen lights, function of gradual switching on and dim-
ming.
• Controlling inputs for push button and switch.
• Values are set by potentiometers on front panel of the product, adjustable:
- maximum dim-up
- speed (fl uency) of dim-up
- speed (fl uency) of dim-down
- time for which a light is on with maximum dim-up.
• Output without contact: 1x triac.
• Clamp terminals.
• Parallel connection of controlling pushbuttons is possible.
• Protection against over-temperature inside the product - switches output off +
signalizes overheating by LED fl ashing.
• Note: possibility of start and fi nish adjustment up on 1 hour, device has descrip-
tion DIM-2 1h.
• 1-MODULE, DIN rail mounting.
Description
2
5
6
7
8
9
10
1 .
1. Output
1
3 2. Supply voltage terminal
3. Control input for push button - is a
4
service switch (possibility to switch a
light on permanently)
4. Output indication - red LED:
- start - LED fl ashes in medium pace
- delay - LED is on
- end - LED slowly fl ashes
- temperature overload - output dis-
connected, LED fl ashes quickly
5. Supply voltage indication
6. - brightness setting: 10 - 100%
11
7. t1 - dim-up time setting: 1 - 40 s
8. t3 - dim-down time setting: 1 - 40 s
9. t2 - time dwell setting: 0 s - 20 min
10. Supply terminals
11. Controlling input for switch - to
control dimmers (for example in
staircases). This input is protected
against undesired button blocking (for
example by a match). Length of button
pressing doesn´t infl uence length of
cycle.
DIM-2
Staircase switch with dimming
Symbol
Connection
L
N
T 2.5 A - ballast protection recommended
When load is above 300 VA it is necessary to ensure suffi cient cooling.
Recommendation for mounting: leave a gap of min. 0.5 module (approx. 9 mm) on side
of the device to ensure better cooling of the device.
Product loadability
a b
R L
a) lamp,halogen light
b) low-voltage el. bulbs 12/24V wound transformers
c) low-voltage el. bulbs 12/24V electronic transformers
d) energy saving bulbs
e) dimmable LED bulbs, designed for dimmers with phase-controlled rising edge (triac
dimmers)
1 / 2
A1
T1
V
R, L, LED
T2
A2
h
A1 V
T 2.5 A
T2
R, L,
LED
A2 T1
c d
C ESL
- -
EN
e
LED 1
