GuardEon
Installation Instruction
PE160 GuardEon
DEH 4020
PE250 GuardEon
PG630 GuardEon
PE150 GuardEon with UL
PE250 GuardEon with UL
PG600 GuardEon with UL

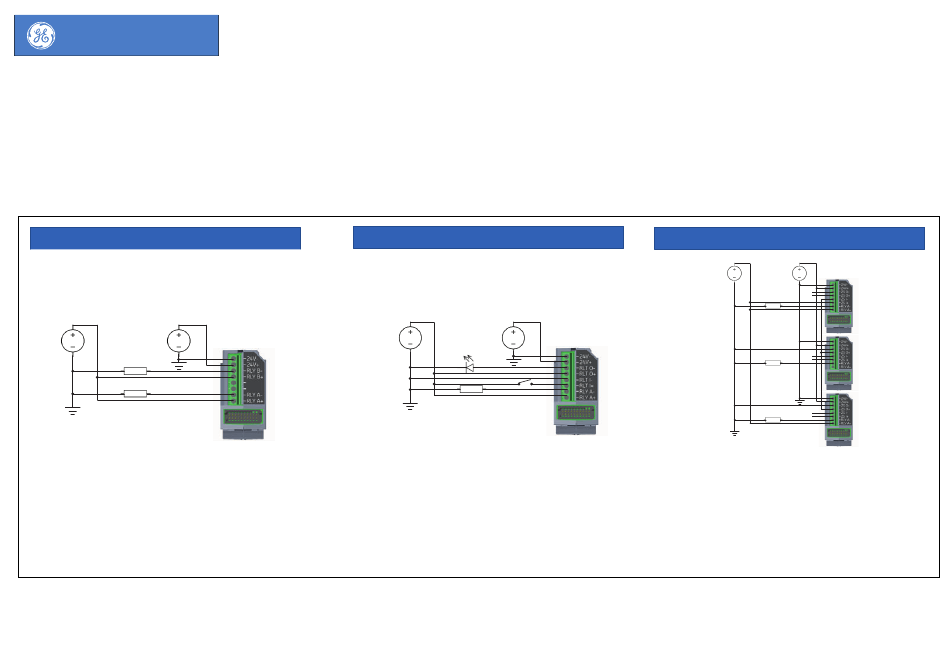

Protective Relay (PPRLY) wiring diagram
Auxilary Power Supply
Trip Unit Power Supply
24 V
24 V
DC
DC
Load
Load
RELAY A,B: 30VDC/25VAC/0.5A,
Connection: 0.5÷1.0mm2 (18÷22AWG)
:
Reduced Energy Let-Through (RELT) Module (PRELT) wiring diagram:
Reduced Energy Let-Through (RELT) Module (PRELT) wiring diagram
Auxilary Power Supply
24 V
DC
RLT OUT - 30VDC/25VAC/0.5A.
RLT IN - 30Vpk-pk/30mA
RLY A - 30VDC/25VAC/0.5A
Connection: 0.5÷1.0mm2 (18÷22AWG)
Trip Unit Power Supply
24 V
DC
RELT Visual
Feedback
RELT Input Switch
Load
:
Zone Selective Interlocking (ZSI) Module (PZSI) wiring diagram
Auxilary Power Supply
Trip Unit Power Supply
24 V
24 V
DC
DC
Load
Load
Load
ZS OUT/ZS IN: 24VDC/5mA
RLY A - 30VDC/25VAC/0.5A
Connection: 0.5÷1.0mm2 (18÷22AWG)
:
ZSI Upstream Circuit Breaker 1
NC
NC
ZSI Downstream Circuit Breaker 2
NC
NC
ZSI Downstream Circuit Breaker 3 to N
NC
NC
