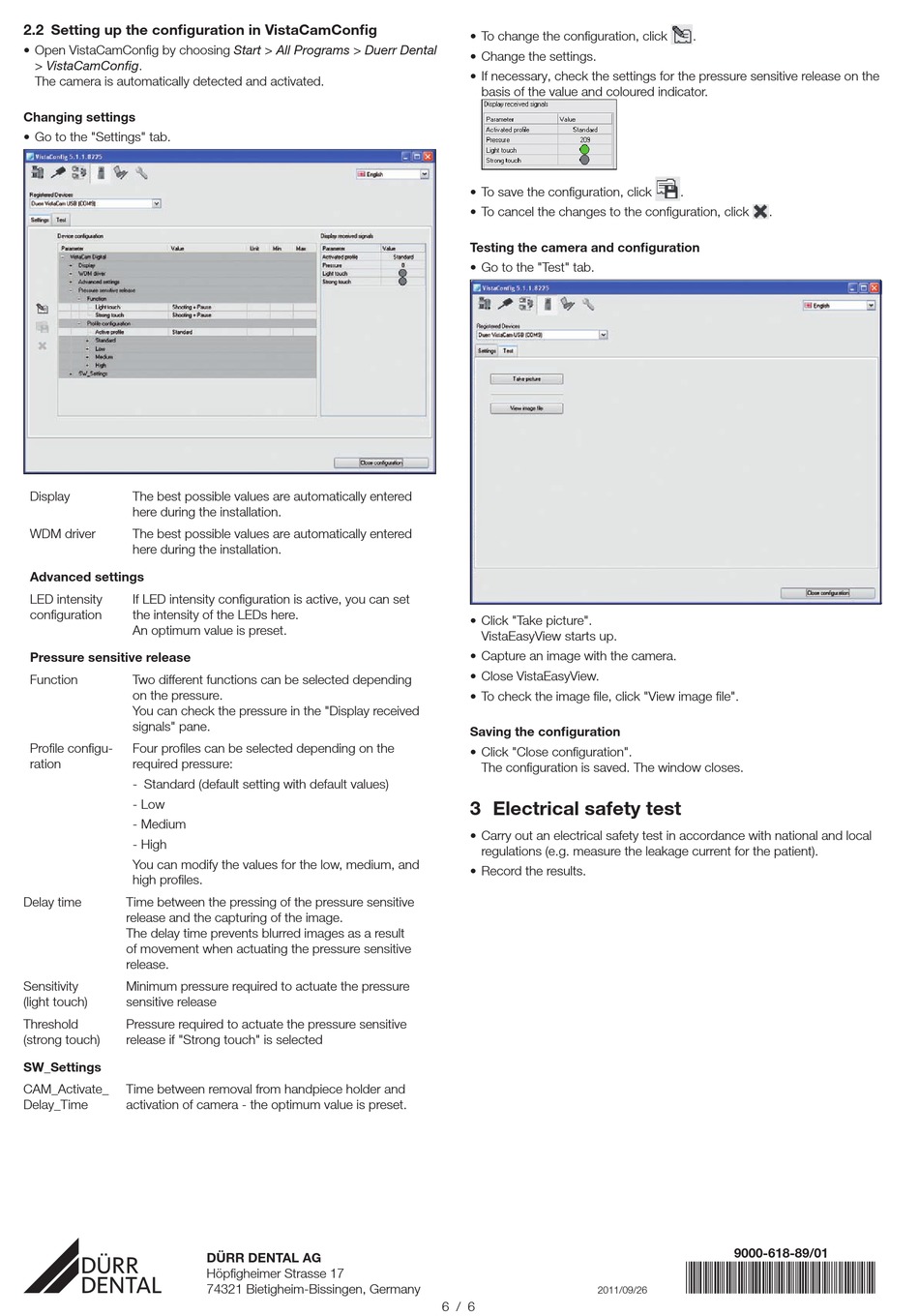

Durr Dental VistaCam Digital Installations- Und Konfigurationsanleitung Seite 6

2.2 Setting up the configuration in VistaCamConfig
• Open VistaCamConfig by choosing Start > All Programs > Duerr Dental
> VistaCamConfig.
The camera is automatically detected and activated.
Changing settings
• Go to the "Settings" tab.
Display The best possible values are automatically entered
here during the installation.
WDM driver The best possible values are automatically entered
here during the installation.
Advanced settings
LED intensity If LED intensity configuration is active, you can set
configuration the intensity of the LEDs here.
An optimum value is preset.
Pressure sensitive release
Function Two different functions can be selected depending
on the pressure.
You can check the pressure in the "Display received
signals" pane.
Profile configu- Four profiles can be selected depending on the
ration required pressure:
- Standard (default setting with default values)
- Low
- Medium
- High
You can modify the values for the low, medium, and
high profiles.
Delay time Time between the pressing of the pressure sensitive
release and the capturing of the image.
The delay time prevents blurred images as a result
of movement when actuating the pressure sensitive
release.
Sensitivity Minimum pressure required to actuate the pressure
(light touch) sensitive release
Threshold Pressure required to actuate the pressure sensitive
(strong touch) release if "Strong touch" is selected
SW_Settings
CAM_Activate_ Time between removal from handpiece holder and
Delay_Time activation of camera - the optimum value is preset.
DÜRR DENTAL AG
Höpfigheimer Strasse 17
74321 Bietigheim-Bissingen, Germany
• To change the configuration, click
• Change the settings.
• If necessary, check the settings for the pressure sensitive release on the
basis of the value and coloured indicator.
• To save the configuration, click
• To cancel the changes to the configuration, click
Testing the camera and configuration
• Go to the "Test" tab.
• Click "Take picture".
VistaEasyView starts up.
• Capture an image with the camera.
• Close VistaEasyView.
• To check the image file, click "View image file".
Saving the configuration
• Click "Close configuration".
The configuration is saved. The window closes.
3 Electrical safety test
• Carry out an electrical safety test in accordance with national and local
regulations (e.g. measure the leakage current for the patient).
• Record the results.
