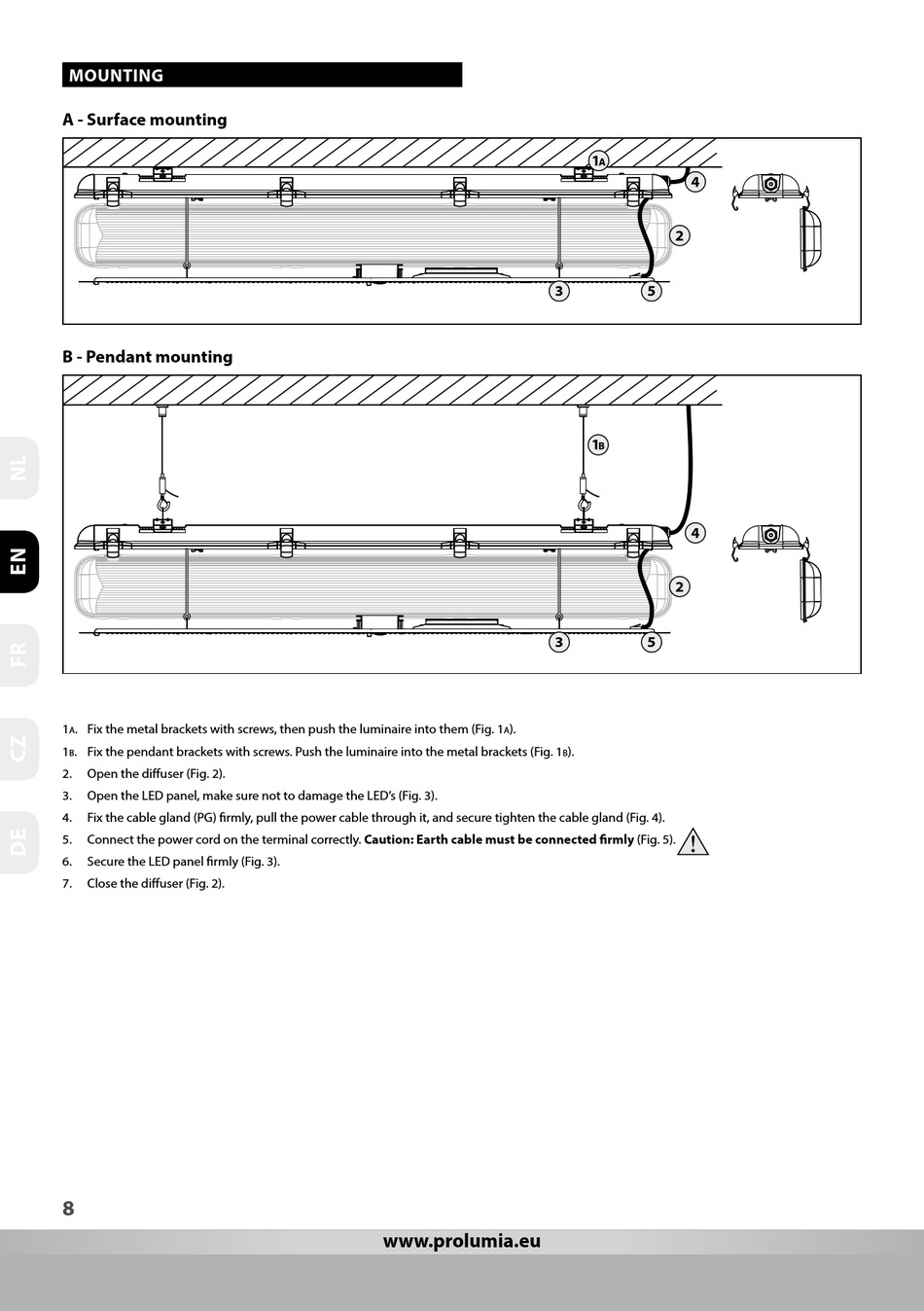

MOUNTING
A - Surface mounting
B - Pendant mounting
1 . Fix the metal brackets with screws, then push the luminaire into them (Fig. 1
a
1 . Fix the pendant brackets with screws. Push the luminaire into the metal brackets (Fig. 1
b
2. Open the diffuser (Fig. 2).
3. Open the LED panel, make sure not to damage the LED's (Fig. 3).
4. Fix the cable gland (PG) firmly, pull the power cable through it, and secure tighten the cable gland (Fig. 4).
Connect the power cord on the terminal correctly. Caution: Earth cable must be connected firmly (Fig. 5).
5.
6. Secure the LED panel firmly (Fig. 3).
7. Close the diffuser (Fig. 2).
