GF SIGNET 2100 Installationsanleitung

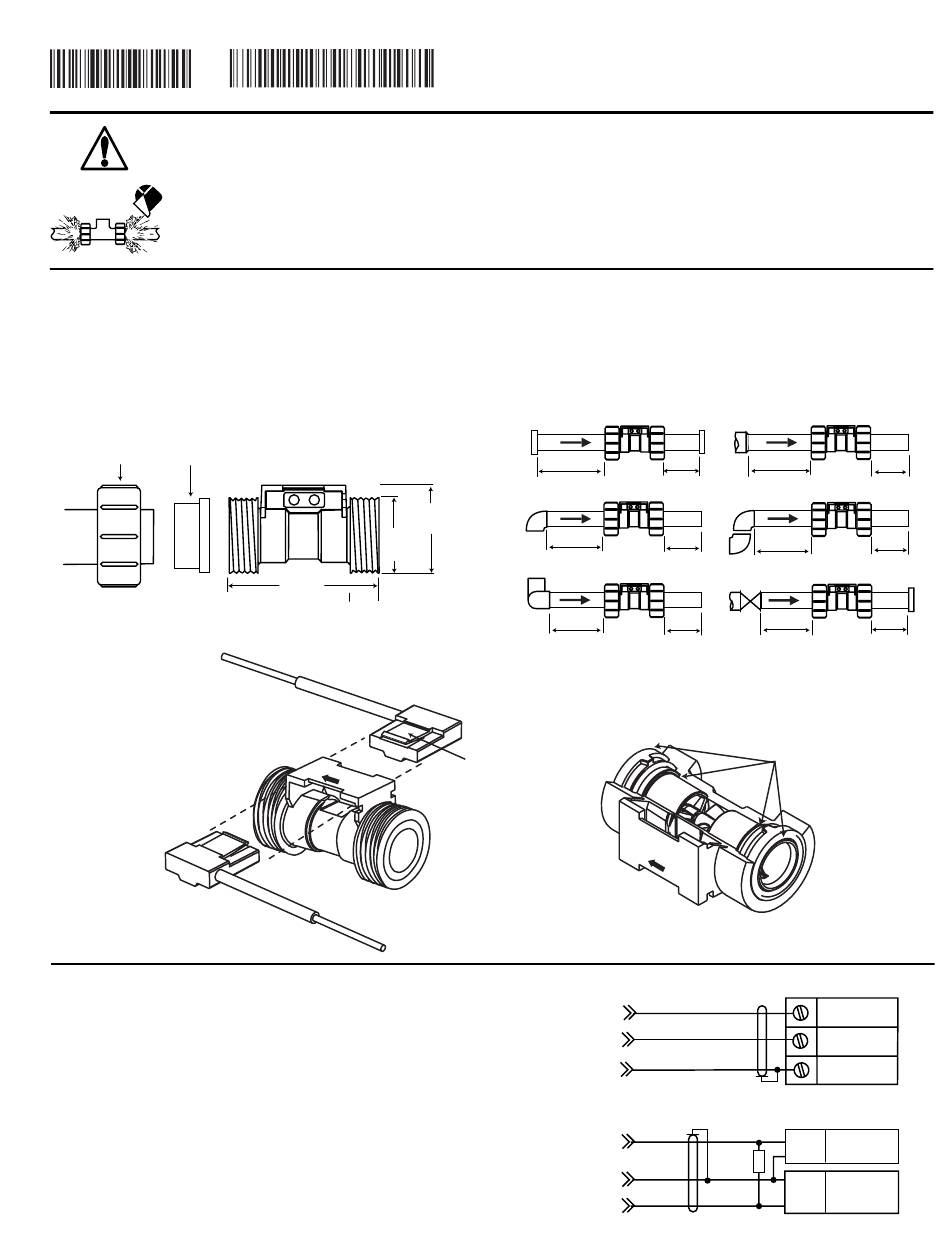

‡ SIGNET 2100 Turbine Sensor Operating Instructions
3-2100.090-1
WARNING!
1. Do not remove from pressurized lines.
2. Never install sensor without O-rings.
3. Confirm chemical compatibility before use.
4. Do not exceed maximum temperature/pressure specifications.
5. Wear safety goggles and faceshield during installation/service.
6. Failure to follow safety instructions could result in severe personal injury.
1. Installation/Mounting
1. Install sensor with arrow pointing in the direction
of flow. All mounting angles acceptable.
2. Slide union nut onto pipe or flexible tubing.
3. Install end connectors.
4. Hand tighten union nut to secure.
Union Nut End Connector
Pipe
Reversible
electronics
2. Sensor Wiring
Wiring Tips:
• Use 2-conductor twisted-pair shielded cable (Belden #8451 or
equivalent) for sensor cable splices up to 300 m (1000 ft) max.
• Maintain cable shield through cable splice.
• Route sensor cable away from AC power lines.
• Use the 2535/2536 input card setting for +GF+ SIGNET
Intelek-Pro controllers.
‡ SIGNET 2100 Turbine Sensor Operating Instructions
E-11/02 E/G/F/S
33.3 mm
(1.3 in.)
64 mm
(2.5 in.)
12.2 mm
(.48 in.)
• Suitable for clear or opaque fluids. Suspended solids may
cause mechanical failure.
• Upstream/downstream mounting requirements:
Flange
Inlet
10x I.D.
90° Elbow
43.2 mm
(1.5 in.)
20x I.D.
2 x 90° Elbow
40x I.D.
Press to release
+GF+ SIGNET
2100 Turbine
Flow Sensor
Contents
1. Installation/Mounting
2. Sensor Wiring
3. Calibration
4. Specifications
5. Parts and Accessories
Reducer
Outlet
15x I.D.
5x I.D.
2 x 90° Elbow
5x I.D. 25x I.D.
Valve/Gate
50x I.D.
5x I.D.
O-rings
(factory installed)
+GF+ SIGNET
Black (5 to 24 VDC)
Red (Signal out)
Shield (DC return)
Black
+
-
10 kΩ
Shield
Gnd.
Red
Input
ENGLISH
5x I.D.
5x I.D.
5x I.D.
Instrument
Blk
Power
Red
Freq. input
Shld
Gnd
Other
Instrument
5 to 24
VDC
Other
instrument
page 1 of 8
