DVA AL5 Handbuch Seite 5

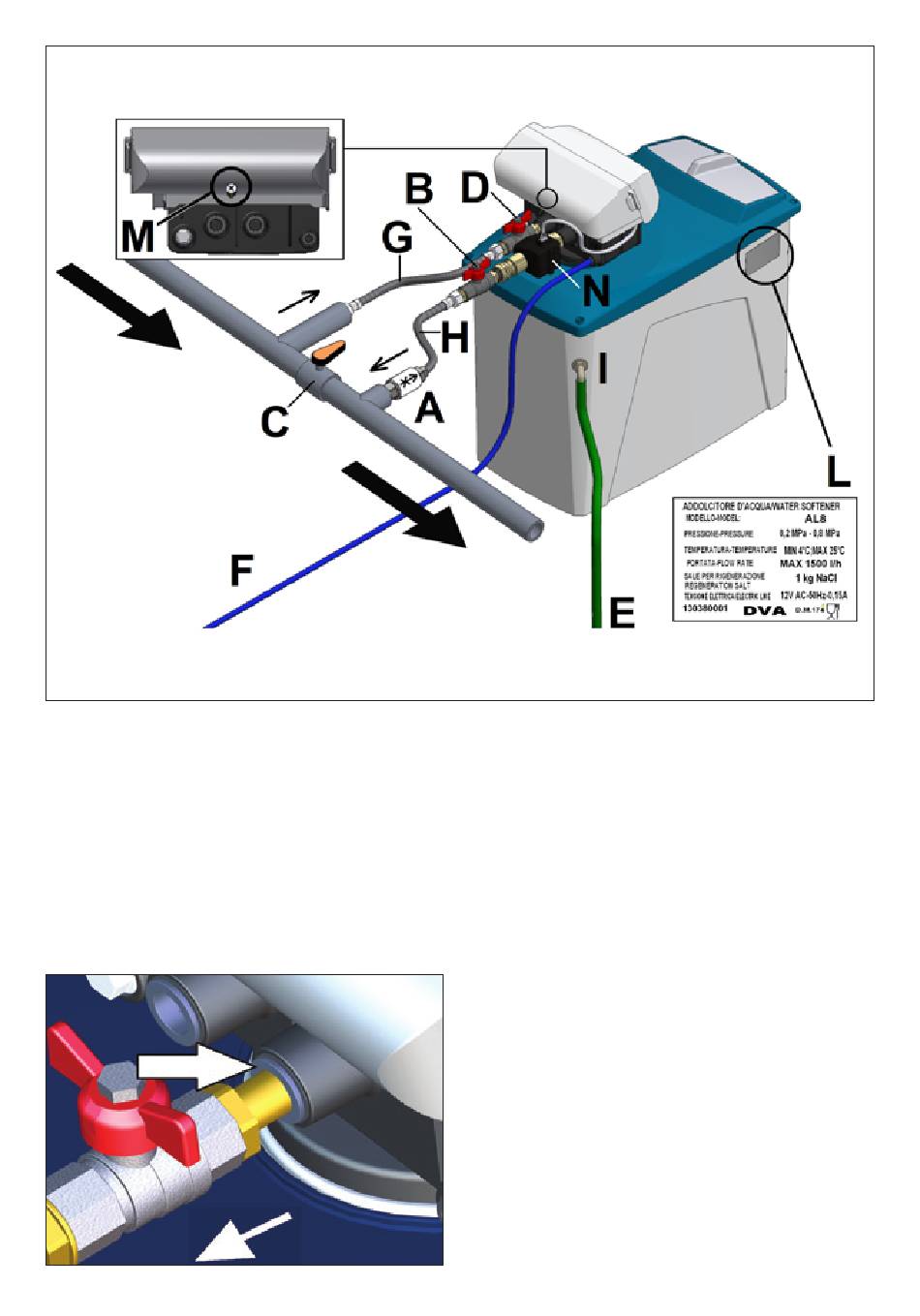

FIG. 3
LEGENDA (fig. 3):
A VALVOLA DI NON RITORNO
B RUBINETTO USCITA
C RUBINETTO BY-PASS
D RUBINETTO INGRESSO
E TUBO PER IL TROPPO PIENO
F TUBO SCARICO
G TUBO MANDATA
H TUBO USCITA
I RACCORDO DI TROPPO PIENO
L ETICHETTA
M VITE MIESCELAZIONE
N TURBINA VOLUMETRICA
WARNING: This leaflet is an integral part of the machine and must be handed to the installer, who in turn should
hand it back to the user after having filled in the check table
LEGEND (fig. 3):
A NON-RETURN VALVE
B OUTLET TAP
C BY-PASS TAP
D INLET TAP
E OVERFLOW PIPE
F UNLOADING PIPE
G INLET PIPE
H OUTLET PIPE
I OVERFLOW UNION JOINT
L LABEL
M MIXER SCREW
N TURBINE
FIG. 4
5
