PowerFlex Remote HIM
Dezentrale Bedieneinheit (HIM) für PowerFlex
HIM décentralisée
Tastiera per montaggio a fronte quadro
Programador remoto
HIM op afstand
HIM remota

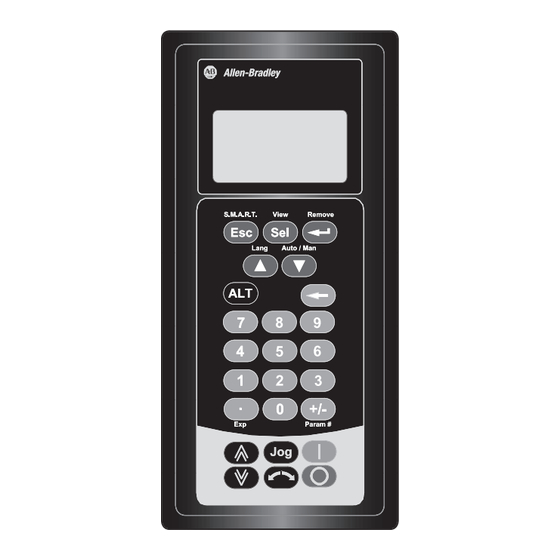

20-HIM-C3
IP66 (NEMA Type 4X/12)
Indoor / Innenraum / Usage Intérieur / Interno / Interior / Indoor / Interno
Important:
Adhesive coated gasket designed for one time installation.
Wichtig:
Dichtung ist nur für den einmaligen Einbau anwendbar.
Important : Joint adhésif à usage unique.
Importante: Guarnizione adesiva valida per una sola installazione. Smontando e
rimontando la stessa non sara' piu' garantita la protezione IP66.
ATENCIÓN: Junta con capa adhesiva diseñada para solo una fijación–
no reutilizable.
Belangrijk:
De zelfklevende dichtingsring is voor éénmalig gebruik.
Importante: Vedação adesiva foi projetada para ser instalada uma vez.
Installation Instructions
Installationsanleitung
Installazione
20-HIM-C5
Installation
Instalación
Instructies
Instalação
Werbung
Verwandte Anleitungen für Allen-Bradley 20-HIM-C3
Inhaltszusammenfassung für Allen-Bradley 20-HIM-C3

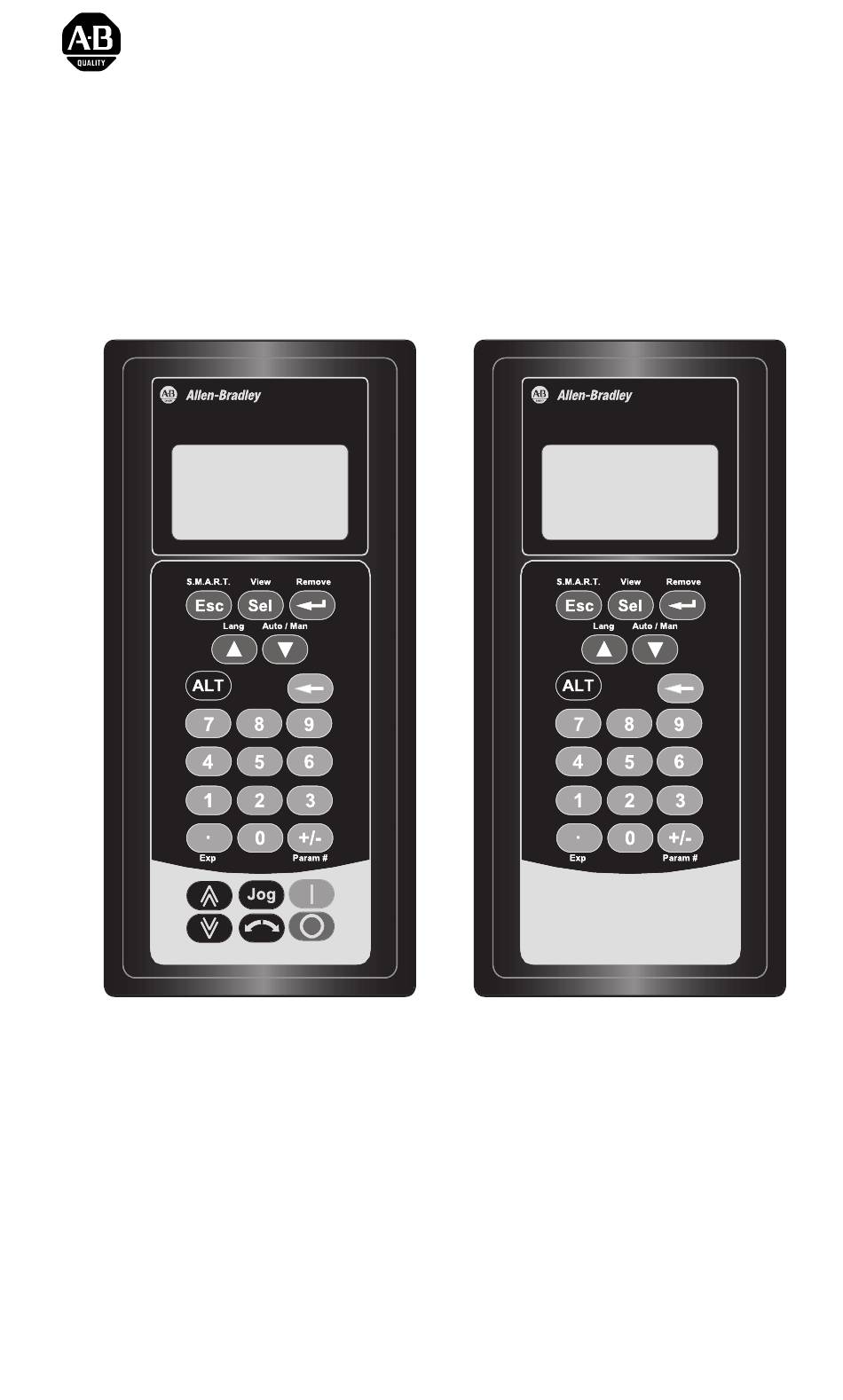

- Seite 1 Tastiera per montaggio a fronte quadro Instructies Programador remoto Instalação HIM op afstand HIM remota 20-HIM-C3 20-HIM-C5 IP66 (NEMA Type 4X/12) Indoor / Innenraum / Usage Intérieur / Interno / Interior / Indoor / Interno Important: Adhesive coated gasket designed for one time installation.
