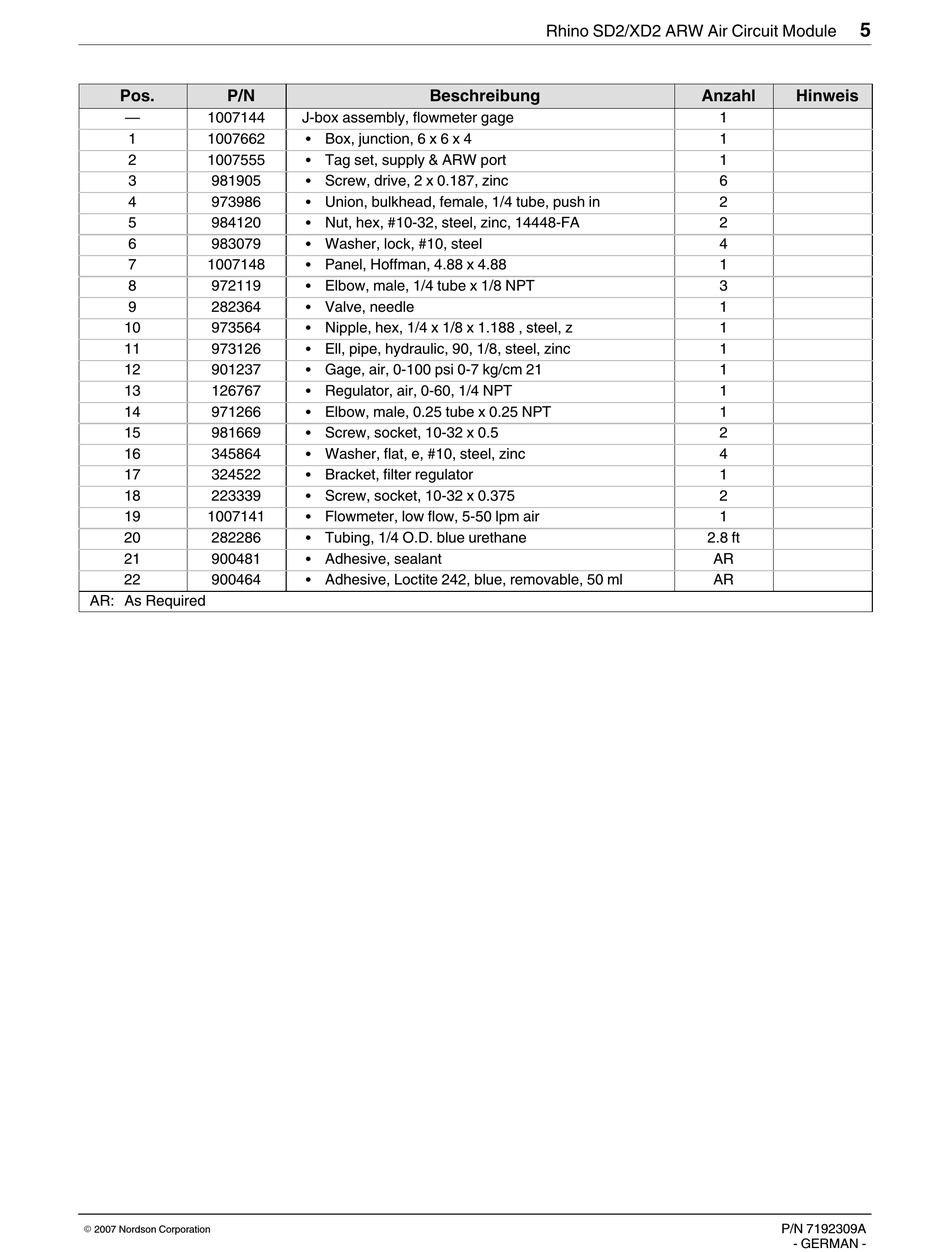

Nordson Rhinor SD2 Bedienungsanleitung Seite 5

Pos. P/N
— 1007144
1 1007662
2 1007555
3 981905
4 973986
5 984120
6 983079
7 1007148
8 972119
9 282364
10 973564
11 973126
12 901237
13 126767
14 971266
15 981669
16 345864
17 324522
18 223339
19 1007141
20 282286
21 900481
22 900464
AR: As Required
E 2007 Nordson Corporation
Beschreibung
J‐box assembly, flowmeter gage
S Box, junction, 6 x 6 x 4
S Tag set, supply & ARW port
S Screw, drive, 2 x 0.187, zinc
S Union, bulkhead, female, 1/4 tube, push in
S Nut, hex, #10-32, steel, zinc, 14448-FA
S Washer, lock, #10, steel
S Panel, Hoffman, 4.88 x 4.88
S Elbow, male, 1/4 tube x 1/8 NPT
S Valve, needle
S Nipple, hex, 1/4 x 1/8 x 1.188 , steel, z
S Ell, pipe, hydraulic, 90, 1/8, steel, zinc
S Gage, air, 0-100 psi 0-7 kg/cm 21
S Regulator, air, 0-60, 1/4 NPT
S Elbow, male, 0.25 tube x 0.25 NPT
S Screw, socket, 10-32 x 0.5
S Washer, flat, e, #10, steel, zinc
S Bracket, filter regulator
S Screw, socket, 10-32 x 0.375
S Flowmeter, low flow, 5-50 lpm air
S Tubing, 1/4 O.D. blue urethane
S Adhesive, sealant
S Adhesive, Loctite 242, blue, removable, 50 ml
Rhino SD2/XD2 ARW Air Circuit Module
Anzahl
1
1
1
6
2
2
4
1
3
1
1
1
1
1
1
2
4
1
2
1
2.8 ft
AR
AR
5
Hinweis
P/N 7192309A
- GERMAN -
