ROBO START : Press the ROBO START (1) button to activate ROBO
START (the button will blink). Use ROBO START in SINGLE-AUTO CUE
MODE to alternate play between the two sides of the CD player (one
track from one side, then one track from the other side). See the Robo
Start Instructions section for further instructions.
4%, 8% and 16% BUTTONS : Use the 4%, 8% and 16% (14) buttons to
assign the percent the pitch control slide will have. The 4% button will
assign +/-4% to the pitch control slide. The 8% button will assign +/-8%
to the pitch control slide. The 16% button will assign +/-16% to the pitch
control slide. The PITCH (18) must be ON for the 4%, 8% and 16% (14)
to work.
PITCH : Pushing the PITCH (18) button activates the PITCH CONTROL
(15). The pitch of the CD will change according to the position of the
PITCH CONTROL (15).
PITCH BEND BUTTONS
automatically raise the pitch up to +4% or lower the pitch down to -4%
from the existing pitch setting. Releasing the buttons will return the pitch
to the original pitch setting. You can use this function to match the pitch
bend when mixing from one song to another.
DIGITAL OUTPUT JACK : Connecting any type of DAT, MD, HARD DRIVE,
or other such items which accept digital signals to the BNC (26) output
connector on the rear panel of the transports allows you to record a
digital signal from CD.
OPERATING INSTRUCTIONS
1. Make sure that the VOLTAGE SELECTOR (23) switch, found on the rear
panel, is set for the proper voltage. Plug the unit in and press the
POWER (21) button. The unit will turn on. Pushing the POWER (21)
button a second time will turn the unit off.
2. Press the OPEN/CLOSE (7) button, place a CD in the DISC TRAY (20)
and press the OPEN/CLOSE (7) button again. The tray will close into the
unit.
3. Push the TRACK SKIP (13) buttons to select the track you want to play.
4. Press the PLAY/PAUSE (17) button and the unit will instantly play.
CUE INSTRUCTIONS
To use FLY CUE (10) to set a cue point, follow these instructions:
1. With the unit in the play mode (play/pause LED glows green), press FLY
CUE (10) at the point where you want the cue point to be (the unit will
continue to play). The cue point is now memorized. Press the CUE (16)
button to return to the memorized cue point. Push the PLAY/PAUSE (17)
button, and the unit will instantly play from the spot selected.
1. To memorize the spot at which you want play to start, select the proper
track, and then push the PLAY/PAUSE (17) button so the unit goes into
the play mode (play/pause LED will glow green). Listen to the CD and
when the CD gets to the approximate spot, push PLAY/PAUSE (17) so
the unit goes into pause mode (play/pause LED will blink green). Move
the SEARCH JOG WHEEL (9) to the precise spot you want play to begin
and push the PLAY/PAUSE (17) button to memorize the cue point. Press
the CUE (16) button to return to the memorized cue point. Push the
PLAY/PAUSE (17) button, and the unit will instantly play from the spot
selected.

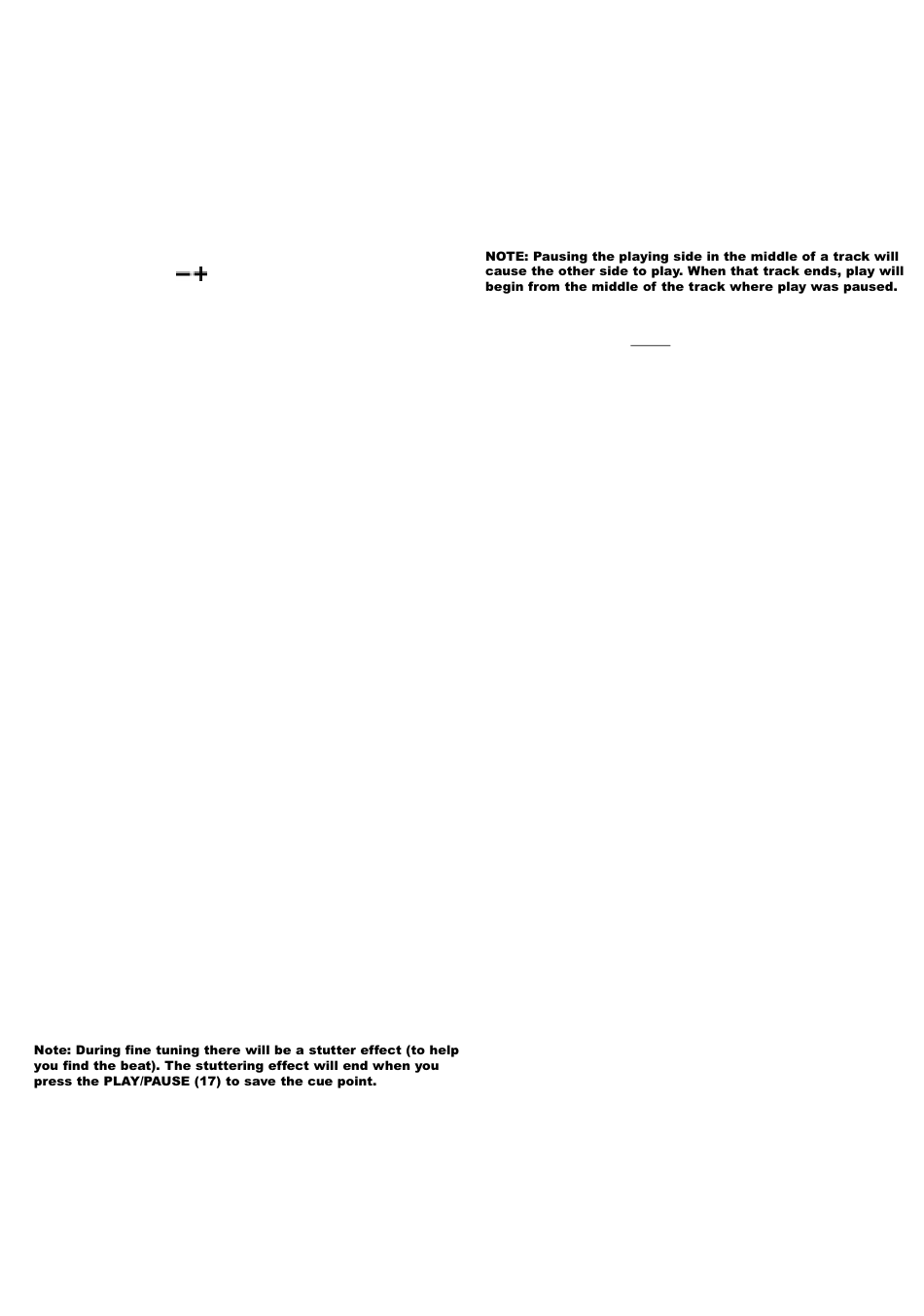

2. To fine tune a cue point, pause play at the memorized cue point (the cue
LED will glow and the play/pause LED will blink), then use the SEARCH
JOG WHEEL (9) to scan frame by frame (1/75th of a second) to where
you want play to begin (the cue LED will blink while you scan). Press
PLAY/PAUSE (17) to save the new cue point.
ROBO START INSTRUCTIONS
IN SINGLE-AUTO CUE MODE:
Use ROBO START in SINGLE-AUTO CUE MODE to alternate play between
the two sides of the CD player (one track from one side, then one track from
: Pushing the PITCH BEND (19) buttons will
AND/OR
the other side). In SINGLE-AUTO CUE MODE play starts immediately from
the start of music without any blank space (which exists at the beginning of
every track). ROBO START causes one side of the CD player to play, while
the other side is paused.
1. Engage SINGLE-AUTO CUE MODE with the SINGLE-AUTO CUE/
CONTINUOUS (3) button.
2. Press the ROBO START (1) button to activate ROBO START (the button
will blink). Play will alternate between the two sides of the CD player. At
the end of the track, the playing side will pause, and the other side will
play. At the end of this track, the playing side will pause, and the other
side will play. The CD player will continue to alternate between the two
sides until you stop it (after the last track of the CD, it goes back to the
first track).
IN CONTINUOUS MODE OR DURING NORMAL PLAY:
If you use ROBO START without SINGLE-AUTO CUE MODE (in CONTINU-
OUS MODE or during normal play), play will not alternate automatically.
Pressing pause on the playing side will cause the other side to play.
1. During normal play, set a cue point on the other side of the CD player.
2. Press the ROBO START (1) button to activate ROBO START (the button
will blink).
3. Press PLAY/PAUSE (17) button on the playing side to begin play from
the cue point on the other side.
TROUBLE SHOOTING
• If the disk will not play, check to see if the disc was loaded correctly
(label side up). Also check the disc for excessive dirt, scratches, etc.
• If the disc turns but there is no sound, check the cable connections. If
they are okay, check your amplifier or receiver.
• If the CD skips, check the CD for dirt or scratches. Do not assume that
the CD player is defective. Many CDs are recorded out of spec and will
skip on most or all CD players. Before sending the unit in for repair, try
playing a CD that you are sure plays properly.

SPECIFICATIONS

GENERAL:
Type...................................Dual Mechanism Compact Disc Player w/wired remote
Disc Type..............................................Standard Compact discs (12 cm & 8 cm)
Time Display..........................................Track Elapsed, Track Remain, or Total remain
Variable Pitch.........................................± 4%, ± 8%, ± 16% Slider with Resume Switch
Pitch Bend.....................................................................................± 20% Maximum
Instant Start..........................................................................Within 0.015 seconds
Track Selection..............................................................................1 to 99 Tracks
Installation....................................................19" Rack Mountable Player Unit, 2 U
AUDIO SECTION:
Quantization.........................................................1 Bit Linear/Channel, 3 Beam Laser
Oversampling Rate...................................................................................8 Times
Sampling Frequency.................................................................................44.1 kHz
Frequency Response......................................................................20 Hz to 20 kHz
Digital Output..............................................................................................IEC958
Total Harmonic Distortion..................................................................Less Than 0.05%
Signal to Noise Ratio..............................................................................104 dB
Dynamic Range...............................................................................................98 dB
Channel Separation..............................................................................90 dB (1 kHz)
Output Level...................................................................................1.9 Volts R.M.S.
Power Supply.................................................................AC 120/230V, 60/50 Hz
Dimensions..........................Player Unit 19" W x 3 1/2" H x 10" D (482 x 88 x 254 mm)
Control Unit 19" W x 3 1/2" H x 3 5/8" D (482 x 88 x 92 mm)
Weight..........................................................................Player Unit 11 lbs (5 kg)
* Specifications and design are subject to change without notice for purpose of
improvement.
Page 3
19" Rack Mountable Control Unit, 2 U
Control Unit 3.5 lbs (1.5 kg)
