01877
Electronic multi-voltage power supply 230 V~ 50 Hz for dimmerable RGB LED
lamps 12-24 V , adjustable with By-me devices. SELV output.
CHARACTERISTICS
• Rated output voltage: 12-24V ± 10%
• Suited for SELV RGB LED lamps and strips: 12-24 V
• Rated supply voltage mains: 230 V~ 50 Hz
• Rated supply voltage Busbar: 29 V
• Absorption at 230 V~:
- 125 mA (output 12 V 20 W)
- 145 mA (output 24 V 24 W)
• Absorption from BUS 29 V: 10 mA
• Fuse with high breaking capacity type 1 A incorporated
• Terminals:
- 2 for mains supply (L phase, N neutral)
- 4 for LED output module (+, R-, G-, B-)
- 2 for TP Busbar (+,-)
• Possible functions:
- Switching on, off and dimmering
- Changing absolute colour
- Actuating/saving scenarios
- FADING SHOW operation
- "Ramp" operation
- Switch-off delay and warning function
- Hue/saturation/brightness adjustment
• Operating temperature: -5°C - +45°C (indoor)
• Appliances of class II
• Jumpers for selecting the output voltage
• Maximum overall output current:
- 1.7 A at 12 V
- 1 A at 24 V
• Maximum overall load:
- 20 W (12 V output )
- 24 W (24 V output )
• PFC active:
- Power factor = 0.92 (12 V , 20 W)
- Power factor = 0.90 (24 V , 24 W)
• Max. dissipated power: 6 W at 12 to 24 V
• Efficiency η at 230 V~:
- 80% (12 V , 20 W)
- 84% (24 V , 24 W)
• Consumption on standby: < 0.5 W
• Max number of power supplies
- with miniature circuit breaker C10: max 7
- with miniature circuit breaker C16: max 12
• Power supply to incorporate IP20 for indoor use
• Galvanic isolation between primary and secondary: 4 kVrms
• Adjustable power supply with By-me devices
• Cable length for LED modules: 10 m with cables of cross-section 1.5 mm
• Supplied with terminal protection and cable clamps
• Opposite input and output terminals
• Cable section:
- Primary: 0.75 mm – 1.5 mm (rigid cables); 0.75 mm
2 2
- Secondary (RGB LED terminals): 0.5 mm
(flexible cables)
• Cable clamp on primary and secondary for cable diameters:
- Primary: min 4 mm - max 8 mm
- Secondary: min 4 mm - max 8 mm
• Screw fixing for power supply
• Protections: Thermal (auto-off reversible), short-circuit, overload
• Max. temperature of tc casing: 80°C
• Dimensions (l x w x h): 224 mm x 60 mm x 36 mm
CONFIGURATION.
FOR THE OPERATIONS OF INSTALLATION AND CONFIGURATION, SEE THE CONTROL
UNIT By-me SYSTEM INSTRUCTIONS MANUAL.
CAUTION: ONLY ONE RGB POWER SUPPLY Art. 01877 CAN BE CONFIGURED PER
GROUP.
• Functional units: 1; the unit can belong to at most 4 different groups.
• Selecting the functional unit (configuration): during group creation, when the control panel
requires pressing the device button (it is recommended to configure the device with the
load OFF):
- Press the CONF button, the red LED will light up;
- with the red LED on, the control panel will configure the functional unit; at the end of this
operation the red LED will go out.
49400525A0 08 1810
2
– 1 mm (flexible cables)
2 2
2 – 1.5 mm 2 (rigid cables); 0.5 mm 2 – 1 mm
CONNECTIONS
Example of connection to the By-me busbar.
L
N
L
N
+
Bus
-

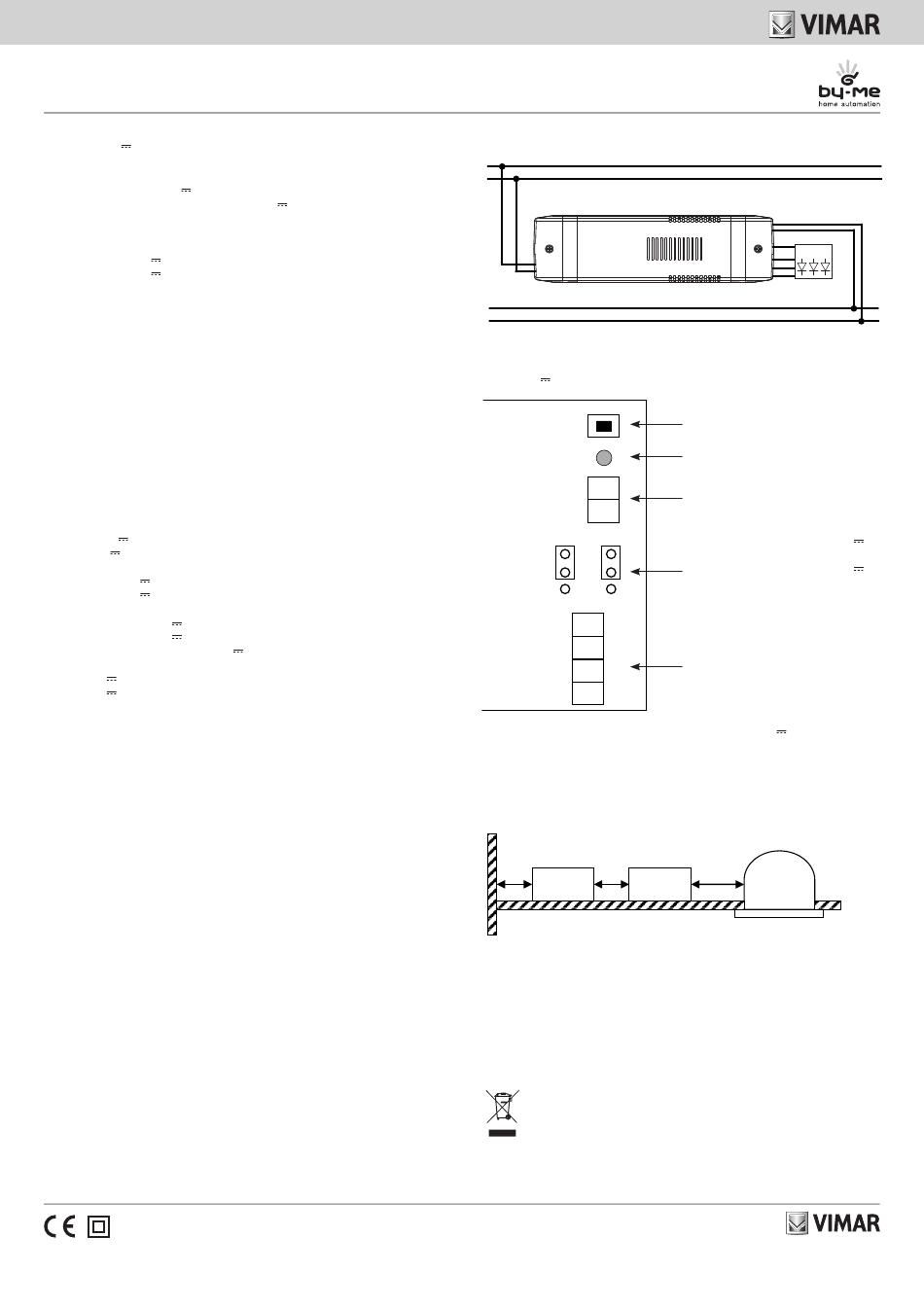

Fig. 1. Wiring diagram for power supply 01877.
Before connecting the power supply to the power mains 230V~, select the rated output volt-
age 12-24 V by means of the jumpers on the secondary side (Fig. 2).
-
+
24 V
12 V
+
R-
G-
B-
Fig. 2. Position of the jumpers to select the output voltage of 24 V

INSTALLATION REGULATIONS

Installation should be carried out by qualified personnel in compliance with the current regula-
tions regarding the installation of electrical equipment in the country where the products are
installed. Ensure clearance around the appliance so there is sufficient ventilation. There must
be no dripping or splashes of water on the appliance.
01874
Ta: 45°C max
01875
2
A A
01877
A ≥ 25 mm; B ≥ 100 mm
Fig. 3. Minimum distance between the power supply 01877 and the lamps and/or external
walls.
For all details on possible installation architectures, please refer to SI-Connection dia-
grams for the relevant item code at www.vimar.com -> Products -> Product catalogue.

STANDARD COMPLIANCE

LV directive. EMC directive.
Standards EN 61347-2-13, EN 62384, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015,
EN 50428, EN 50491.
WEEE - Information for users
If the crossed-out bin symbol appears on the equipment or packaging, this means the product
must not be included with other general waste at the end of its working life. The user must take
the worn product to a sorted waste center, or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation) to
retailers with a sales area of at least 400 m
waste collection for the environmentally friendly disposal of the used device, or its subsequent
recycling, helps avoid the potential negative effects on the environment and people's health, and
encourages the re-use and/or recycling of the construction materials.
01877
-
+
+
R G B
R-
G-
B-
Module RGB LED
Strip RGB LED
Configuration button
Configuration LED
TP BUS terminals
To set the rated output voltage to 24 V
the jumpers as shown in the figure.
To set the rated output voltage to 12 V
the jumpers onto 12 V.
RGB LED module/strip output terminals
.
Module
RGB LED
B
01877
Strip
RGB LED
, if they measure less than 25 cm. An efficient sorted
