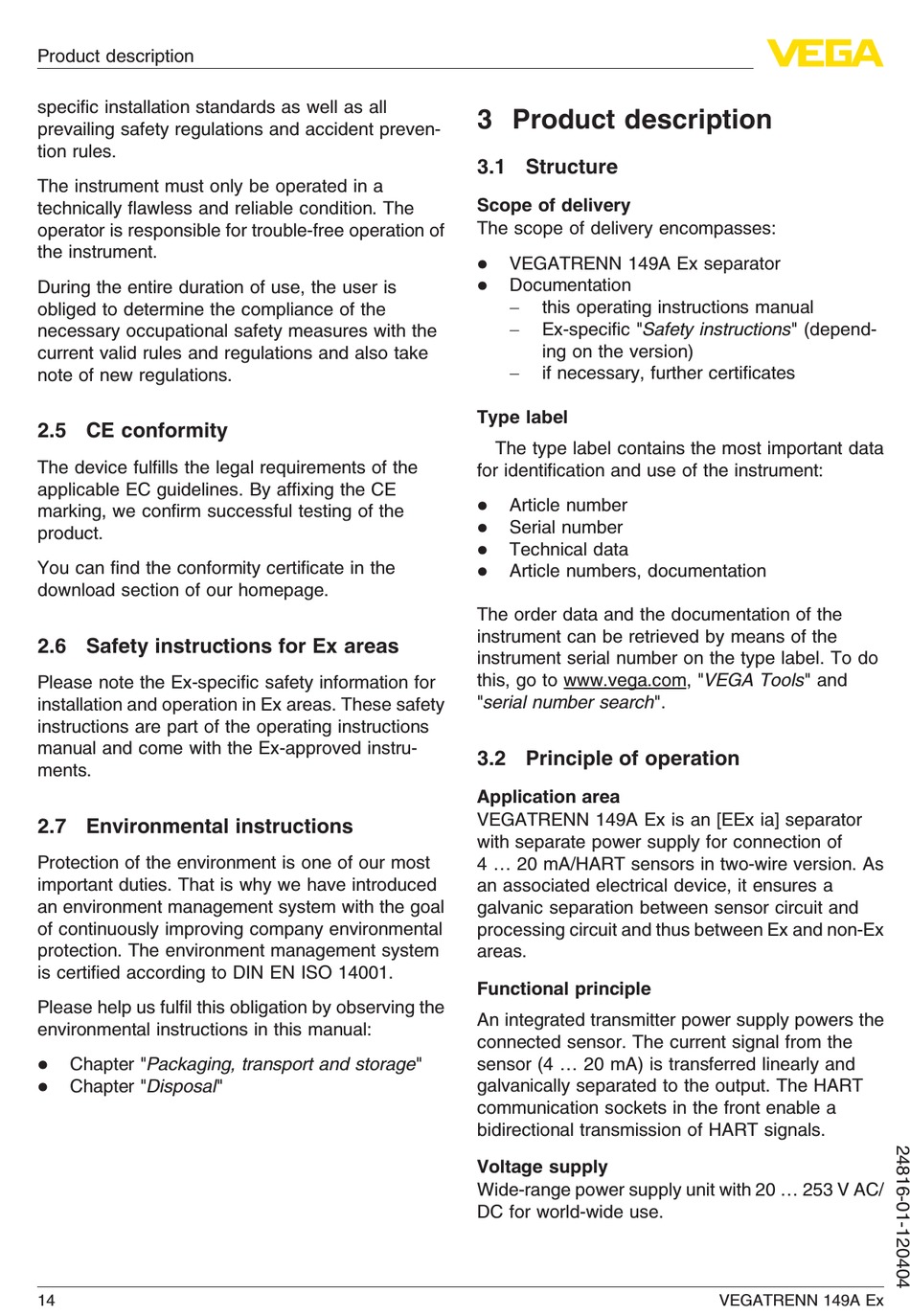

Product description

specific installation standards as well as all
prevailing safety regulations and accident preven-
tion rules.
The instrument must only be operated in a
technically flawless and reliable condition. The
operator is responsible for trouble-free operation of
the instrument.
During the entire duration of use, the user is
obliged to determine the compliance of the
necessary occupational safety measures with the
current valid rules and regulations and also take
note of new regulations.

2.5 CE conformity

The device fulfills the legal requirements of the
applicable EC guidelines. By affixing the CE
marking, we confirm successful testing of the
product.
You can find the conformity certificate in the
download section of our homepage.

2.6 Safety instructions for Ex areas

Please note the Ex-specific safety information for
installation and operation in Ex areas. These safety
instructions are part of the operating instructions
manual and come with the Ex-approved instru-
ments.

2.7 Environmental instructions

Protection of the environment is one of our most
important duties. That is why we have introduced
an environment management system with the goal
of continuously improving company environmental
protection. The environment management system
is certified according to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the
environmental instructions in this manual:
Chapter "Packaging, transport and storage"
l
Chapter "Disposal"
l
14
3 Product description

3.1 Structure

Scope of delivery
The scope of delivery encompasses:
VEGATRENN 149A Ex separator
l
Documentation
l
this operating instructions manual
-
Ex-specific "Safety instructions" (depend-
-
ing on the version)
if necessary, further certificates
-
Type label
The type label contains the most important data
for identification and use of the instrument:
Article number
l
Serial number
l
Technical data
l
Article numbers, documentation
l
The order data and the documentation of the
instrument can be retrieved by means of the
instrument serial number on the type label. To do
this, go to www.vega.com, "VEGA Tools" and
"serial number search".

3.2 Principle of operation

Application area
VEGATRENN 149A Ex is an [EEx ia] separator
with separate power supply for connection of
4 ... 20 mA/HART sensors in two-wire version. As
an associated electrical device, it ensures a
galvanic separation between sensor circuit and
processing circuit and thus between Ex and non-Ex
areas.
Functional principle
An integrated transmitter power supply powers the
connected sensor. The current signal from the
sensor (4 ... 20 mA) is transferred linearly and
galvanically separated to the output. The HART
communication sockets in the front enable a
bidirectional transmission of HART signals.
Voltage supply
Wide-range power supply unit with 20 ... 253 V AC/
DC for world-wide use.
VEGATRENN 149A Ex
