Overview of infrared multi-sensor
General description
The infrared multi-sensor (WTC-ISP/-
ISPL) is compatible only with the infrared
remote control (WTC-IR-LB) and fan coil
units fitted with the Water Terminal
Controller.
Only one infrared remote multi-sensor can
be connected to the WTC.
Motion sensor
Luminosity
level sensor

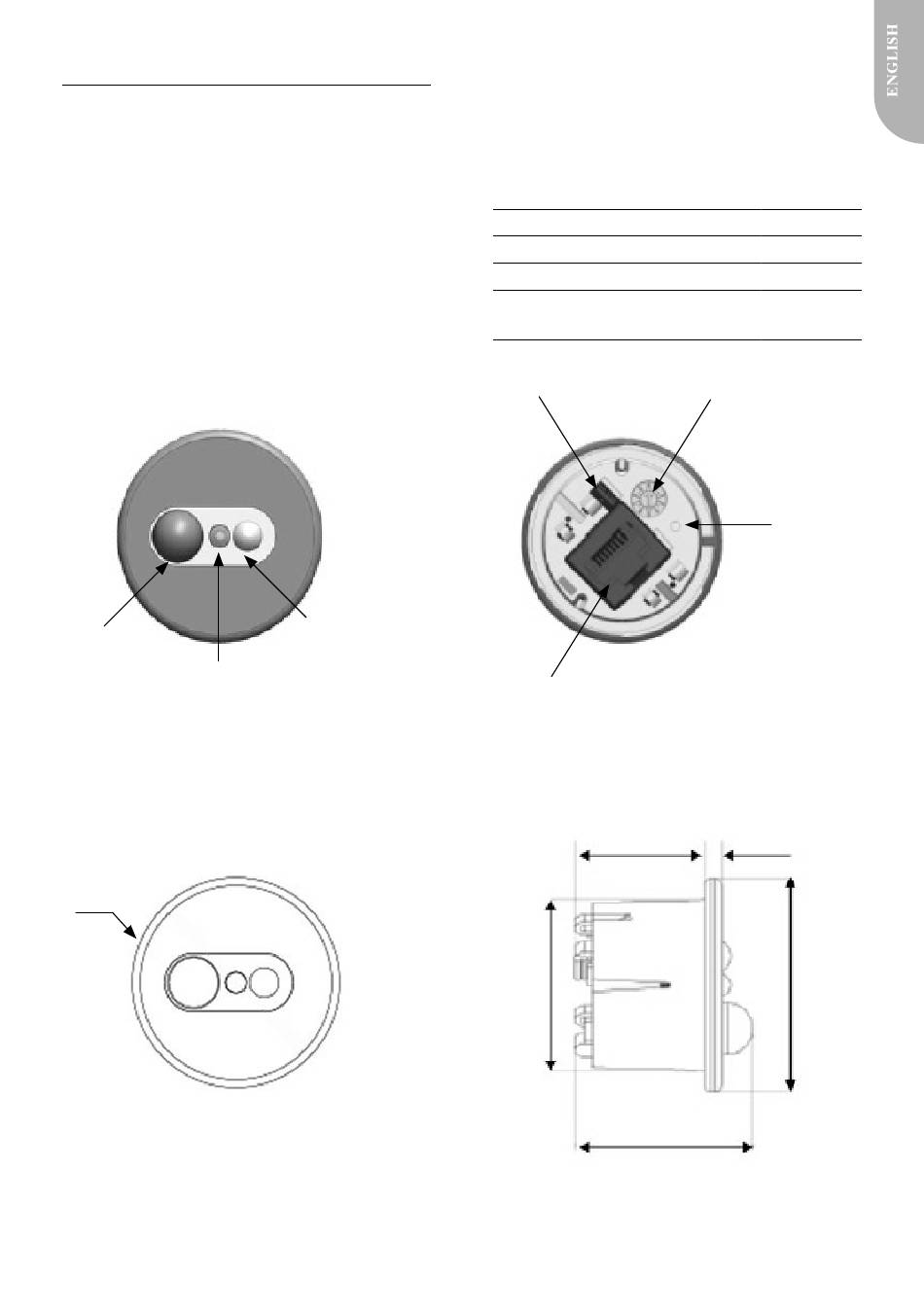

Figure 1: Multi-sensor front view
Multi-sensor dimensions
Ø 40 mm
Figure 3: Front view and side view of the enclosure
EOL Termination
Infrared
receiver
RJ-45 Connector
Figure 2: Multi-sensor back view
Ø 32 mm
The infrared remote multi-sensor is
connected to the network via a single
RJ-45 cable. It can be daisy chained using
a subnet adapter.
Infrared receiver
Motion sensor
Luminosity level
sensor
25 mm
40 mm
WTC-ISP WTC-ISPL
X X
X X
X
Subnet ID
Rotary Switch
Rear Spring
Screw Hole
3 mm
Ø 40 mm
