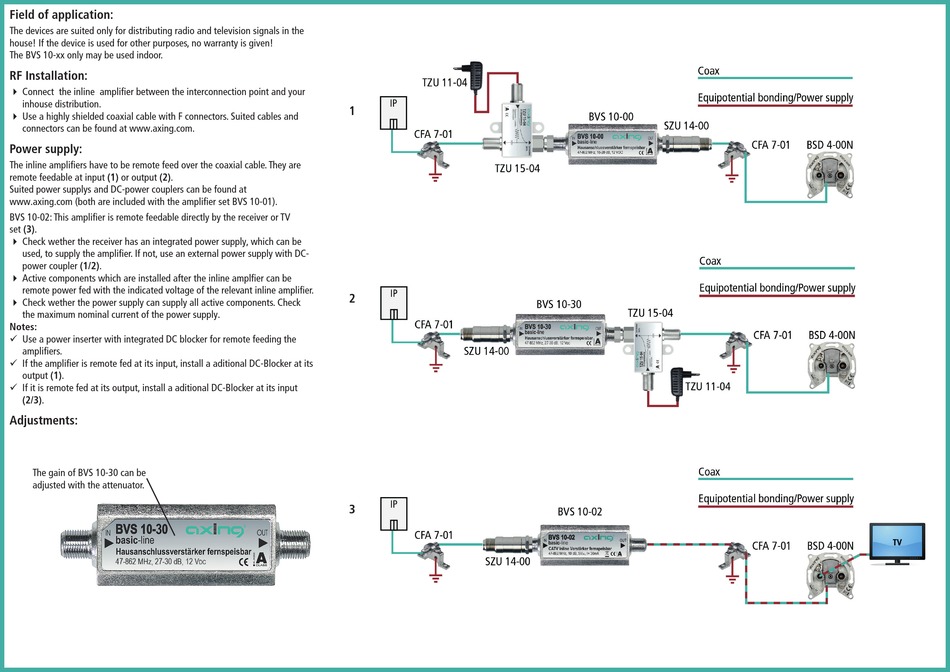

axing basic-line BVS 10-00 Betriebsanleitung Seite 4

Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
The BVS 10-xx only may be used indoor.
RF Installation:
 Connect the inline amplifier between the interconnection point and your
inhouse distribution.
 Use a highly shielded coaxial cable with F connectors. Suited cables and
connectors can be found at www.axing.com.
Power supply:
The inline amplifiers have to be remote feed over the coaxial cable. They are
remote feedable at input (1) or output (2).
Suited power supplys and DC-power couplers can be found at
www.axing.com (both are included with the amplifier set BVS 10-01).
BVS 10-02: This amplifier is remote feedable directly by the receiver or TV
set (3).
 Check wether the receiver has an integrated power supply, which can be
used, to supply the amplifier. If not, use an external power supply with DC-
power coupler (1/2).
 Active components which are installed after the inline amplfier can be
remote power fed with the indicated voltage of the relevant inline amplifier.
 Check wether the power supply can supply all active components. Check
the maximum nominal current of the power supply.
Notes:
9 Use a power inserter with integrated DC blocker for remote feeding the
amplifiers.
9 If the amplifier is remote fed at its input, install a aditional DC-Blocker at its
output (1).
9 If it is remote fed at its output, install a aditional DC-Blocker at its input
(2/3).
Adjustments:
The gain of BVS 10-30 can be
adjusted with the attenuator.
1
2
3
