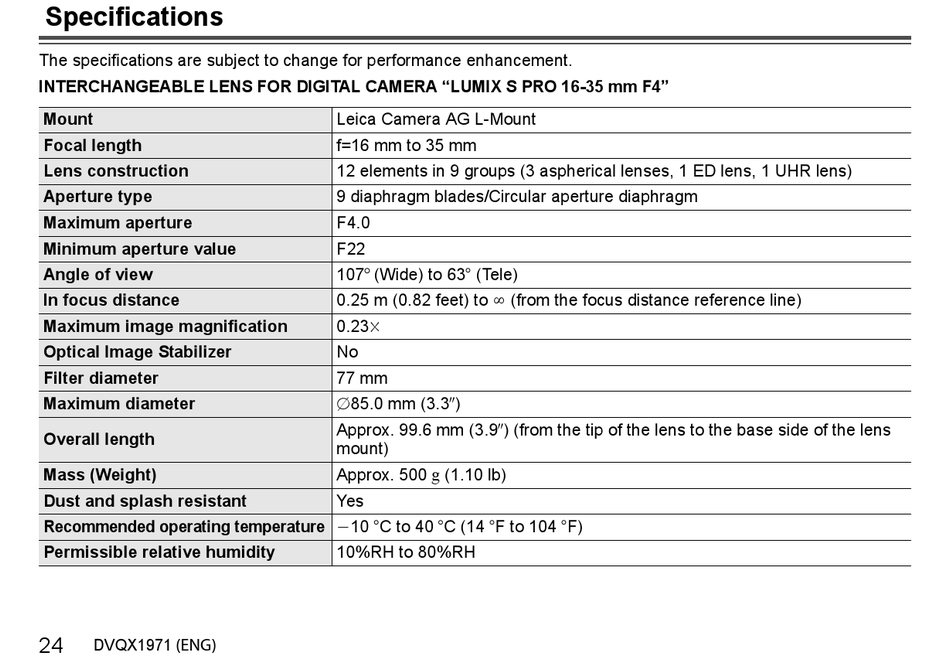

Specifications

The specifications are subject to change for performance enhancement.
INTERCHANGEABLE LENS FOR DIGITAL CAMERA "LUMIX S PRO 16-35 mm F4"
Mount
Focal length
Lens construction
Aperture type
Maximum aperture
Minimum aperture value
Angle of view
In focus distance
Maximum image magnification
Optical Image Stabilizer
Filter diameter
Maximum diameter
Overall length
Mass (Weight)
Dust and splash resistant
Recommended operating temperature j10 oC to 40 oC (14 oF to 104 oF)
Permissible relative humidity
24
DVQX1971
(ENG)
Leica Camera AG L-Mount
f=16 mm to 35 mm
12 elements in 9 groups (3 aspherical lenses, 1 ED lens, 1 UHR lens)
9 diaphragm blades/Circular aperture diaphragm
F4.0
F22
107x (Wide) to 63o (Tele)
0.25 m (0.82 feet) to ¶ (from the focus distance reference line)
0.23k
No
77 mm
‰85.0 mm (3.3q)
Approx. 99.6 mm (3.9q) (from the tip of the lens to the base side of the lens
mount)
Approx. 500 g (1.10 lb)
Yes
10%RH to 80%RH
