3 Intended Use:

It is not allowed to use the device
in other ways than described in chapter
"Description and Function". Use this
device only in dry interior rooms. The symbol
with the house reminds you of that. If you do not
attend to these regulations and notes on safety,
it might causes fatal accidents, injuries and da-
mages to persons and property.
4 Parts Package:
• 1 pc. Full HD switch
• 1 pc. power supply 5 V DC
• 1 pc. IR remote control
• 1 pc. user's manual

5 Connecting and Operating:

The Full HD Switch is designed with 3 operation
modes.

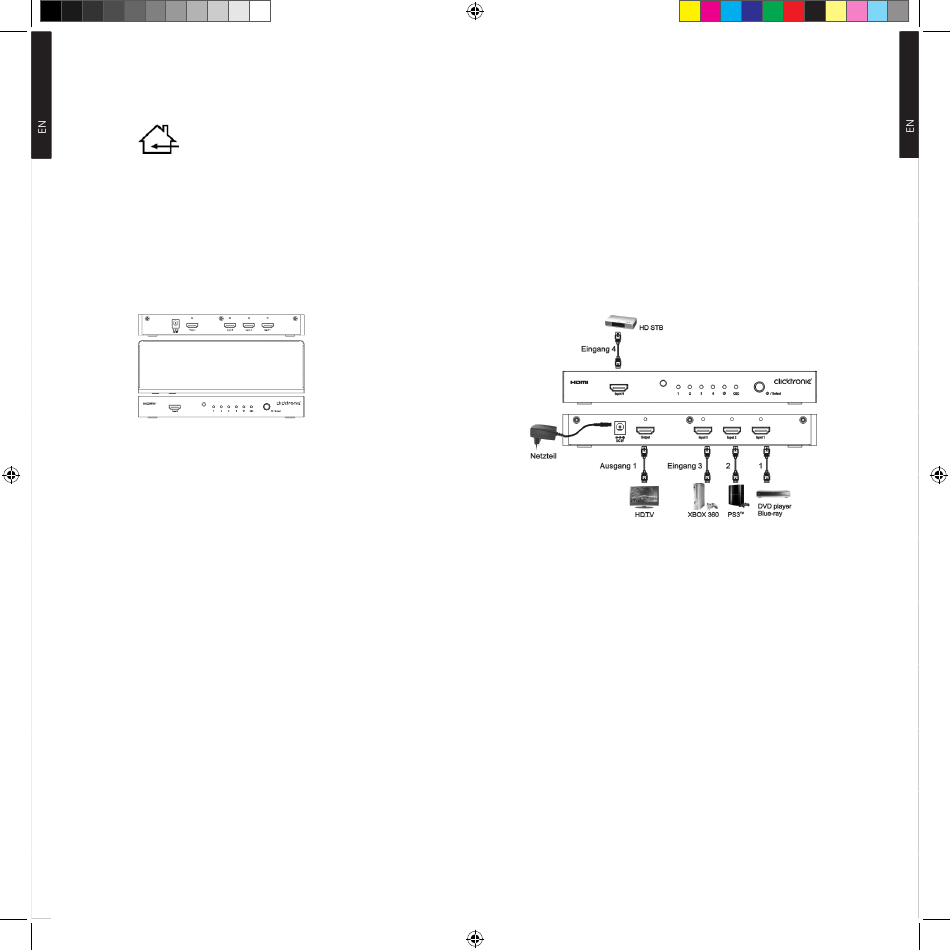

Connection:
Step 1:
Step 2:
Step 3:
Step 4:
Note:
1. After plugging in the DC 5V power adaptor,
the power will be turned on. You are free to
control the Full HD switch by remote control,
manual selecting or auto switching.
2. The Power/SELECT button can also be used as
auto mode control button. Press the button
for 3 seconds to turn on or off the auto
switching CEC function.
12
60808_2012_(HC441)_V1_14lng.indd 12-13
Connect the HDMI TM cables
from the HD sources
(SAT-Receiver, DVD Player etc.)
to the input ports of the Full
HD switch.
Connect the HDMI cable
TM
from your HD display
to the ouput.
Plug the 5 V DC power supply
to the Full HD switch.
After you finished connecting,
the power indication LED will
be lighted up (red). The CEC
function LED lights up (blue)
and one of the input indication
LEDs will be lighted up after
the input source is selected
(green).
Clicktronic®
3. When the CEC/AUTO LED is ON, the Full HD
switch can be operated by remote control,
manual selecting and auto detecting.
You can switch input sources by these three
functions.
4. When the CEC/AUTO LED light is OFF, the auto
switching function will be disabled. The pro-
duct can be operated by remote control
and manual select.
5. If the power indication LED (Red) is flashing,
the Full HD switch is detecting and connec-
ting to the source. After the source is detec-
ted and connected, the flashing will stop. If
the flashing continue, please check the power
of your source is on, or check the HDMI
cable for being working correctly.
6. The product memorizes the latest input port.
For next use, the Full HD switch will detect
and connect the latest input port first.
Activating the CEC/Auto function (auto-
matic source detecting):
1. Switch on the product and all source devices.
2. Select each source device and make sure
they are working.
3. Set all CEC supporting devices into standby
mode.
4. Under standby mode, the Full HD switch will
memorize the latest input port. At your next
use, the Full HD switch will detect and
connect the latest input port first.
5. By switching on a source device, the Full HD
switch and the connected output device will
be activated automatically, when set to
standby mode before and when all devices
are supporting CEC.
6. For changing the setting, reset the product
by unplugging the mains plug for approx. 5
minutes. Repeat step 5 and switch off the
preferred source device.
IR remote operation:
1. Press the Power button at the remote control.
The red power indication LED at the Full HD
switch lights on. Pressing again sets
Clicktronic®
TM
13
