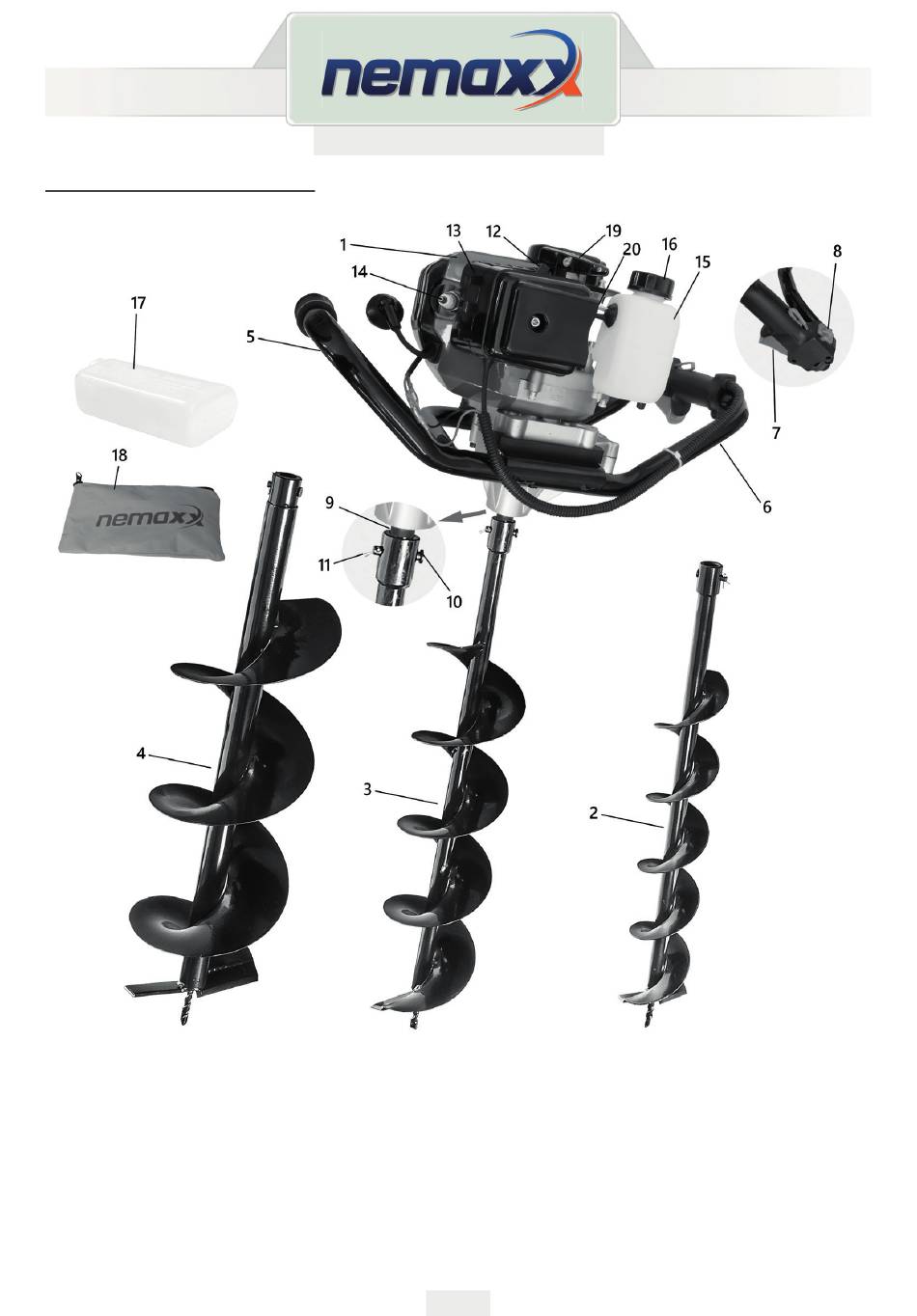

DESCRIPTION OF DEVICE

1. Drive unit
2. Auger drill Ø 100 mm
3. Auger drill Ø 150 mm
4. Auger drill Ø 200 mm
5. Handle
6 Operating handle
7. Throttle trigger
EN
8. ON/OFF switch
9. Drive shaft
10. Bolt
11. Locking pin
12. Choke lever
13. Air filter cover
14. Spark plug
10
v04 • 22.05.2017
15. Tank
16. Tank cap
17. Fuel mixing can
18. Toolset
19. Cranking handle
20. Fuel pump
