Hybrid Giant Handbuch Seite 14

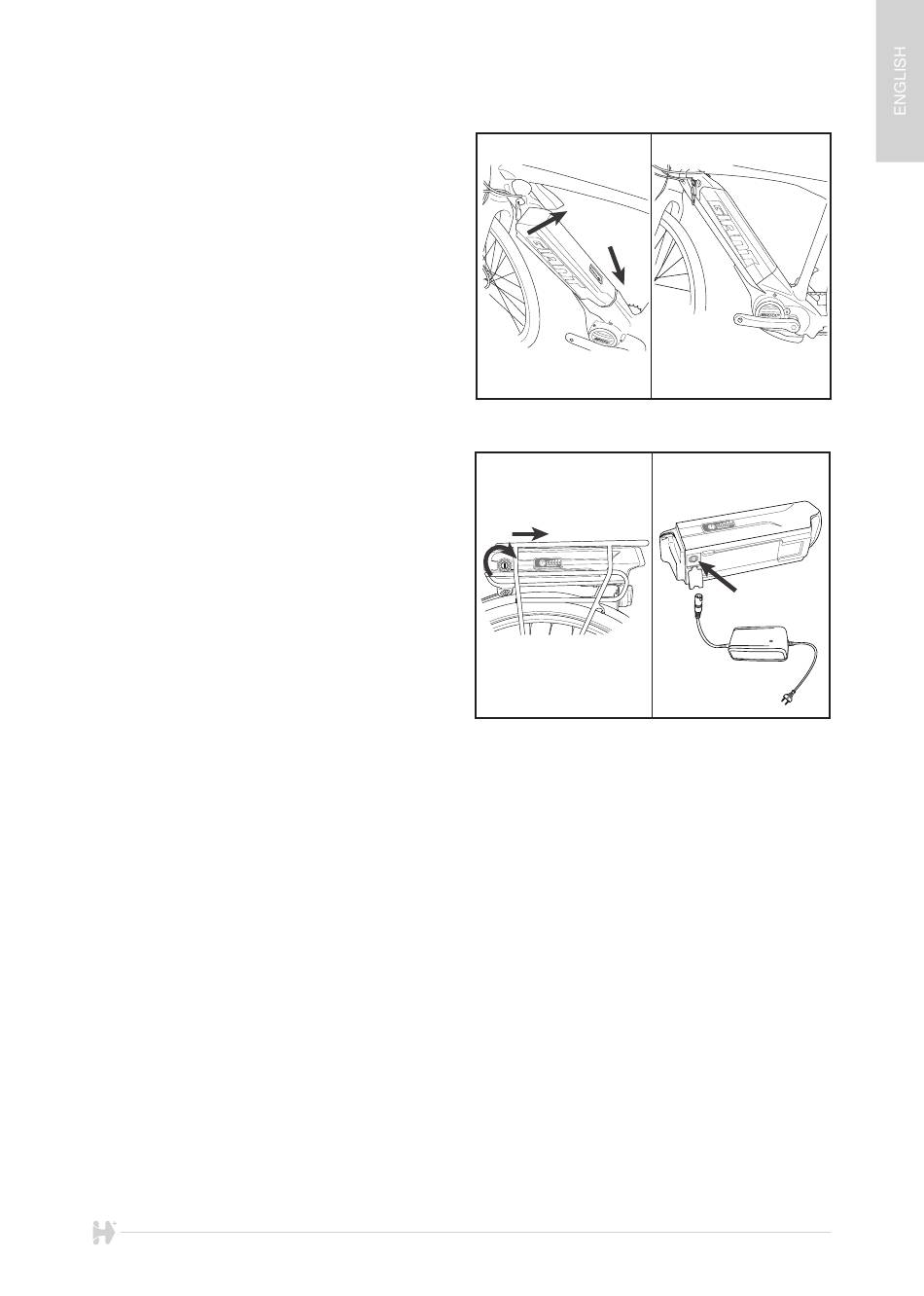

∙ Reinstall the EnergyPak and make sure the
slots are aligned correctly at the bottom.
∙ Push the top of the EnergyPak and make sure
the EnergyPak is secured properly. A 'click'
can be noticed while doing so.
∙ Pull out the key.
∙ The bike is ready for usage.
EnergyPak (rear rack)
∙ Insert the key and unlock the EnergyPak
∙ Hold the grip and pull the EnergyPak
backwards.
∙ Slide out the EnergyPak.
∙ Connect the charger to the EnergyPak.
∙ Connect the charger to an AC outlet.
∙ Charging operation can be discontinued at any
given time.
∙ Disconnect the charger first from the outlet
and then from the EnergyPak.
∙ Reinstall the EnergyPak and make sure the
slots are aligned correctly in the bottom.
∙ Push the EnergyPak forwards and make sure
the EnergyPak is secured properly. A 'click'
can be noticed.
∙ Pull out the key.
∙ The bike is ready for usage.
