QUICk START GUIDE

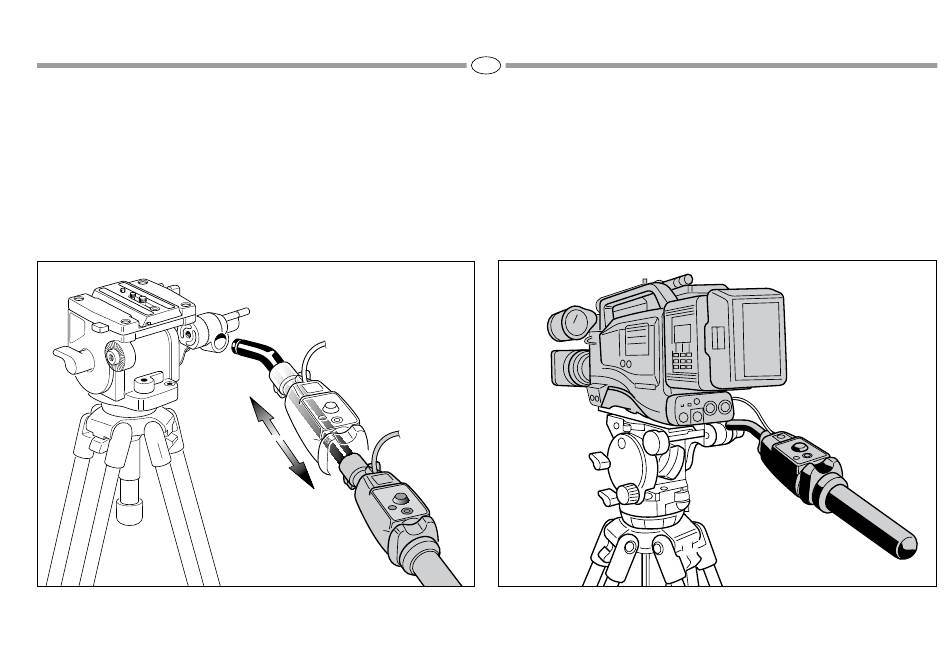

Conneting with the video head
The 524 series pan bar is already designed to attach to any Manfrotto 500
series pro video head.
Simply remove the existing pan par that came with your head and replace
with the 524 remote control.
Note: the Remote Pan Arm is telescopic, adjustable means of locking
knob.
MIN.
MAX.
GB
1. Switch the camera off
2. Before connecting controller to the lens, make sure that controller
type matches the lens brand: 524AX - Angenieux, 524CN – Canon,
524FN – Fujinon
3. Connect controller cable to the 8-pin connector found on the
bottom side of the lens (for Fujinon 12-pin lenses use optional
adaptor cable code 524ADAPT)
4. Switch the camera on – now you may start using the controller
After switching the camera on, the LED indicator should light
continuously.
