Operating Instructions
Electronic weekly timer switch
Item No. 2144011
Intended Use
This weekly timer switch is intended for installation and connection in the distribution box (DIN
rail mounting) in a domestic electrical installation. For information on the permissible operating
voltage and the required power input, see the section "Technical Data".
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in
bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged. In
addition, improper use can result in short circuits, fires, electric shocks or other hazards. Read
the instructions carefully and store them in a safe place. Make this product available to third
parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery Content
• Electronic weekly timer switch
• Operating instructions
Up-to-date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of Symbols
The symbol with the lightning in the triangle is used if there is a risk to your health,
e.g. due to an electric shock.
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety Instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General Information
• Only a specialist who is familiar with the specifications (VDE) and the dangers
should install this product.
• The weekly timer switch must be installed in the distribution box of a domestic
electrical installation (DIN rail mounting) so it is safe to touch (shock-proof).
• The electric circuit must be de-energised before starting the installation of the
weekly timer, or if maintenance work is to be carried out in the distribution box.
Precautionary measures must be taken to ensure that the equipment cannot be
switched on by unauthorised persons.
• Do not use the weekly timer switch in rooms or under adverse ambient conditions
where combustible gases, vapours or dust are or may be present. For your own
safety, never allow the weekly timer switch to get wet or damp.
• Live components may be exposed, when the covering is opened or components
are removed. Connection points may also be live. Before servicing or repair work
is carried out, or components or assemblies are replaced, the weekly timer switch
must be disconnected from the mains voltage. Maintenance or repair work on
the weekly timer switch must always be carried out by SUITABLY QUALIFIED
PERSONNEL, who are familiar with the hazards involved and with the relevant
regulations.
• In commercial institutions, the accident prevention regulations of the Employer's
Liability Insurance Association for Electrical Systems and Operating Facilities are
to be observed.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• Consult an expert when in doubt about the operation, safety or connection of the
appliance.
• Maintenance, modifications and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Connected devices
• Also observe the safety and operating instructions of any other devices which are
connected to the product.
c) Batteries
• Correct polarity must be observed while inserting the battery.
• The batteries should be removed from the device if it is not used for a long period
of time to avoid damage through leaking. Leaking or damaged batteries might
cause acid burns when in contact with skin, therefore use suitable protective
gloves to handle corrupted batteries.
• Batteries must be kept out of reach of children. Do not leave batteries lying
around, as there is risk, that children or pets swallow them.
• All batteries should be replaced at the same time. Mixing old and new batteries in
the device can lead to battery leakage and device damage.
• Rechargeable batteries must not be dismantled, short-circuited or thrown into fire.
Never recharge nonrechargeable batteries. There is a risk of explosion!

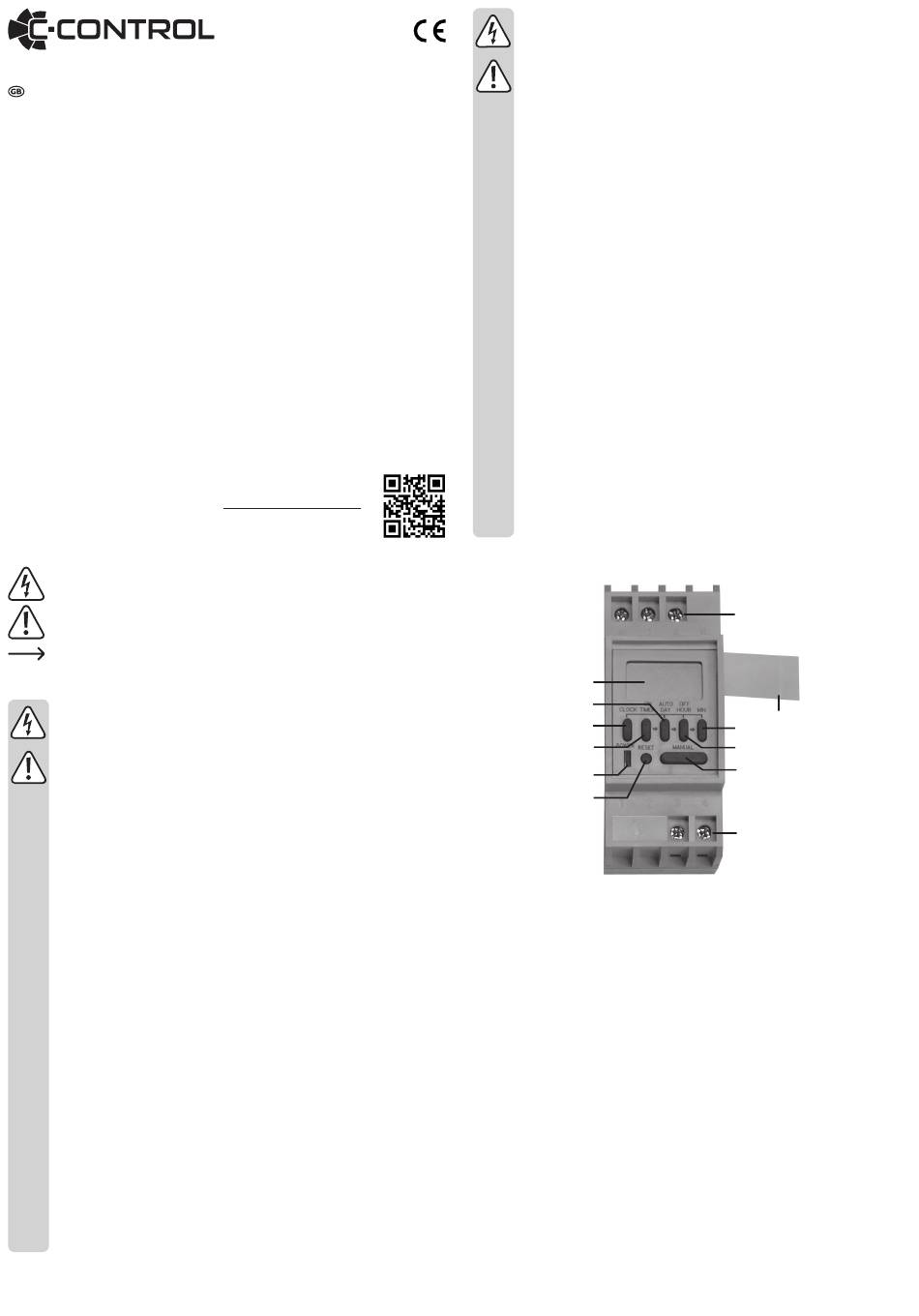

Operating Elements
1
4
2
3
7
8
1 LC Display
2 "CLOCK" button = Time Display
3 "TIMER" switch = Switching Programs/Blocks (8 x different ON/OFF times)
4 "DAY" button = Day of the Week or Groups
5 "HOUR" button = Hours Setting
6 "MIN" button = Minutes Setting
7 "POWER" LED = ON/OFF Indicator
8 "RESET" button = Reset
9 "MANUAL" button = Operating Mode Switch (On/Off + Timer Program)
10 Connecting terminals for Loads (Circuit diagram, see diagram printed on the weekly timer
switch's side)
11 Plastic Protection Strips (protects the back-up battery against premature discharge;
remove before connection/installation!)
12 Connecting Terminals for Mains Voltage.
10
11
6
5
9
12
