Care & Maintenance; Part List; Replacement Parts - Cosatto noodle 0+ Bedienungsanleitung

Care & maintenance:
•
Ensure all locking devices work correctly & regularly check the locks, screws & fittings for security.
•
DO NOT use spray lubricants, simply wipe clean after use.
•
Refer to the wash care label on soft goods for cleaning instructions.
•
The inner tray is dishwasher safe on the (ECO) economy cycle setting.

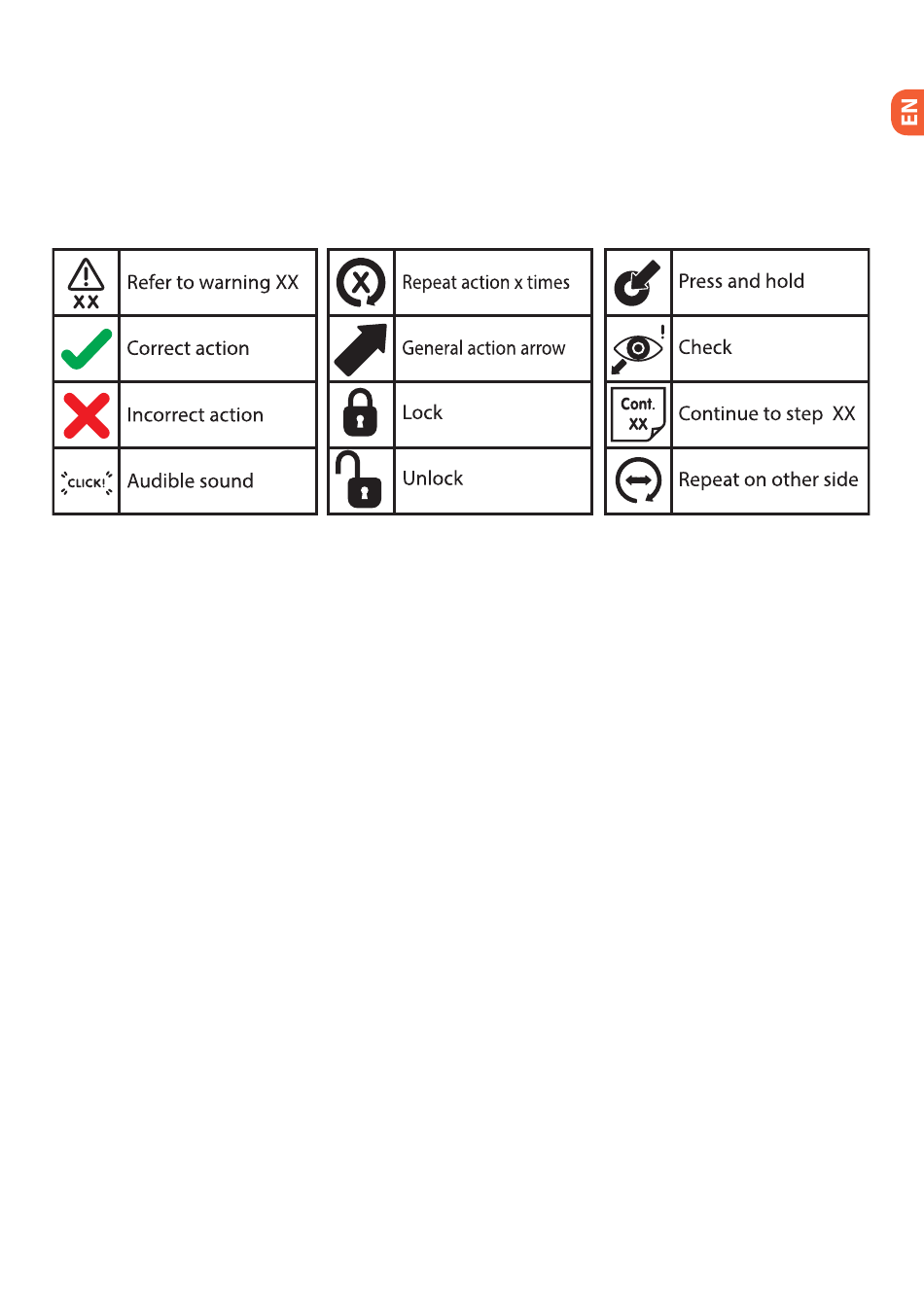

Visual language key:

Part list:

Please refer to diagrams:
P1: Seat unit
P2: LH leg
P3: RH leg
P4: Front foot - The front foot has a red dot sticker at
the rear (a).
P5: Rear foot
P6: Calf support
*A phillips-head screwdriver is required for assembly (not include).

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order
through our website: http://www.cosatto.com/service-centre/spares
For customer outside UK & Ireland, contact information for your local distributor can be found on
http://www.cosatto.com/stockists
If you require any further assistance, please contact us at cuddle@cosatto.com
S1: Seat cover
S2: Seat liner
S3: Seat unit
S4: Harness
S5: LH leg
S6: RH leg
S7: Front foot
P7: Calf support nut (x2)
P8: Calf support bolt (x2)
P9: Inner tray
P10: Outer tray
P11: Leg stopper screw (x2)
P12: Leg stopper (x2)
S8: Rear foot
S9: Calf support
S10: Inner tray
S11: Outer tray
S12: Calf support fixings (set)
S13: Leg stopper & screw (set)
