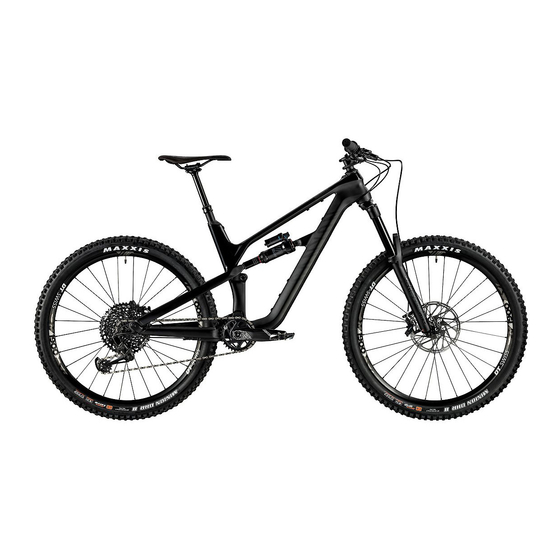

Inhaltszusammenfassung für Canyon 2019 SPECTRAL:ON
- Seite 1 PURE CYCLING QUICK START GUIDE — SPECTRAL:ON – MODEL 2019 NEURON:ON – MODEL 2019...
- Seite 2 IMPORTANT! This Quick Start Guide IMPORTANT : Ce Guide de Démarrage IMPORTANTE! Questa Quick Start Guide is not a replacement for the Canyon Rapide ne remplace pas le Manuel non è sostitutiva del Canyon Manual o Manual or other instructions required d’Utilisation Canyon ou les autres ins-...
- Seite 3 ATENÇÃO! Este guia rápido não substi- TÄRKEÄÄ TIETOA! Tämä pikaopas ei UWAGA! Quick Start Guide nie zastępuje tui ao manual da Canyon ou a outras korvaa Canyon-käyttöohjekirjaa Instrukcji Canyon ani żadnej innej instruções que precise a tua bicicleta. muita pyörän käyttämiseen liittyviä...
- Seite 4 NOT INCLUDED INCLUDED G R EAS E FRICTION PASTE FOR PEDALS For carbon & alloy components CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER...
-
Seite 5: Unpacking
UNPACKING CHARGING EC-E6000 = ~5 h EC-E6002 = ~7.5 h CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER... -
Seite 6: Wheel Assembly
HANDLEBAR INSTALLATION UNPACKING FRICTION PASTE For carbon & alloy components FRICTION PASTE For carbon & alloy components WHEEL ASSEMBLY CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER... -
Seite 7: Tyre Pressure
PEDAL INSTALLATION TYRE PRESSURE Left pedal Right pedal Check tyre pressure! SEATPOST ADJUSTMENT G RE AS E FOR PEDALS Shimano E7000 switch Shimano E8000 switch CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER... -
Seite 8: Seat Height Adjustment
SEAT HEIGHT ADJUSTMENT 1060 1060 1040 1040 1020 1020 1000 1000 Seat height (mm) See next page “Seat height adjustment“ Seat height (see table) Max. 4-5 Nm CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER... - Seite 9 FORK AND SHOCK SETUP GEOMETRY ADJUSTMENT Geometry adjustment only available for SPECTRAL:ON Recommended SAG 20% 15 Nm High Recommended SAG 30% + / - 0,5° + / - 10 mm CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER...
- Seite 10 Shimano E7000 switch Long press Y TRAIL WALK 12.2 Short press X Shimano E8000 switch Error W013 with foot on pedal! Settings Bluetooth LE W013 Bluetooth LE / ANT Light 12.3 Settings Bluetooth LE Bluetooth LE / ANT Light CANYON.COM/SUPPORTCENTER CANYON.COM/SUPPORTCENTER...
-
