Connecting Your Player to a TV
The ZEN Vision:M Audio Video Cable required for TV connection is available
for separate purchase. For information about ZEN Vision:M accessories, visit
www.creative.com/shop.
DO NOT use a standard video cable. The USB synchronization adapter works
only with the proprietary Creative ZEN Vision:M Audio Video Cable (sold
separately).
In your player's main menu, select System → Photo/Video Settings →
1
Video Out.
2 Select Auto (NTSC) or Auto (PAL). See the User's Guide for your TV if you
are not sure about your TV's display format.

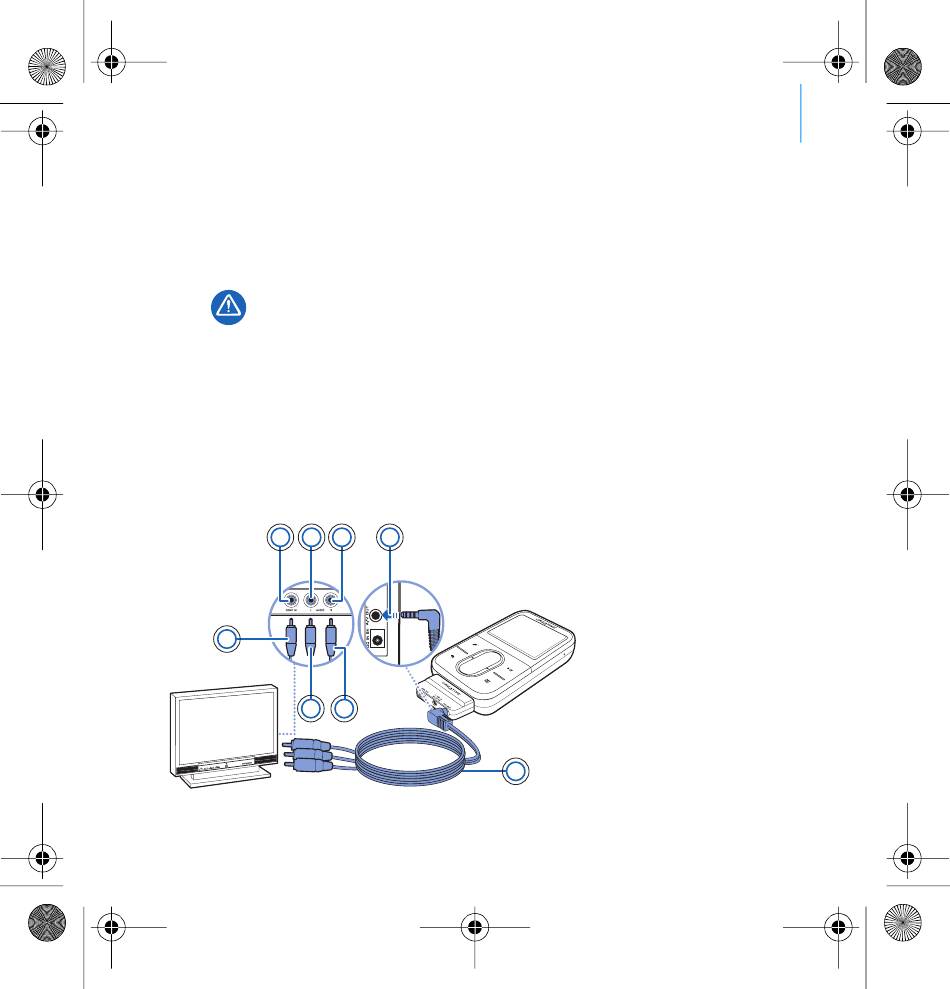

3 Connect your player to a TV with the ZEN Vision:M Audio Video Cable (sold
separately).
1 2
8
7
3 4
6
5
Connecting Your Player to a TV 11
1 Video In jack -
Yellow
2 Audio In (Left) jack -
White
3 Audio In (Right) jack -
Red
4 A/V Out jack
5 ZEN Vision:M Audio
Video Cable (sold
separately)
6 Red connector
7 White connector
8 Yellow connector
